X 4 Panhead Allen · Thomas Thomas Pre-Cleaner / Dump Cart

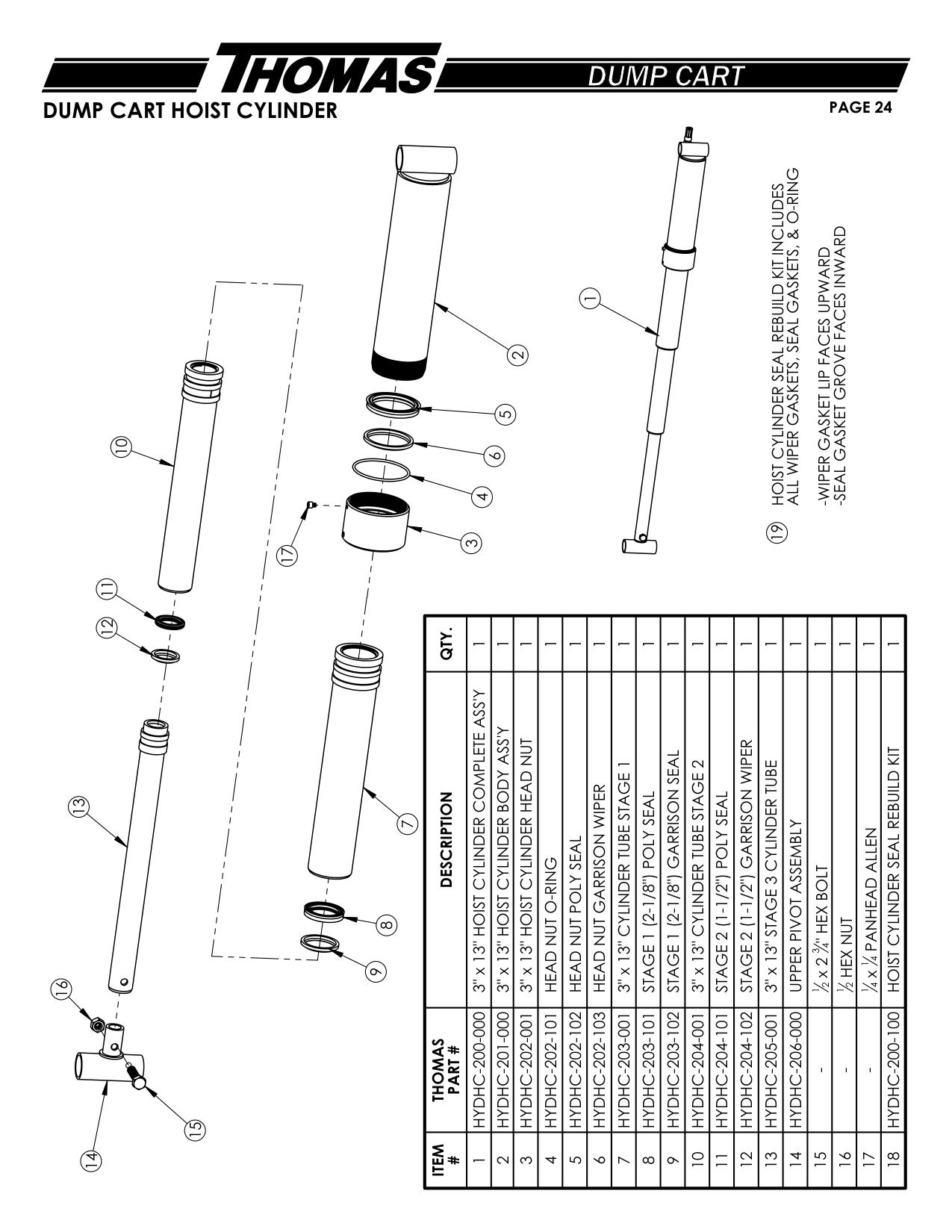

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDHC-200-000 | 3" x 13" HOIST CYLINDER COMPLETE ASS'Y | 1 |
| 2 | HYDHC-201-000 | 3" x 13" HOIST CYLINDER BODY ASS'Y | 1 |
| 3 | HYDHC-202-001 | 3" x 13" HOIST CYLINDER HEAD NUT | 1 |
| 4 | HYDHC-202-101 | HEAD NUT O-RING | 1 |
| 5 | HYDHC-202-102 | HEAD NUT POLY SEAL | 1 |
| 6 | HYDHC-202-103 | HEAD NUT GARRISON WIPER | 1 |
| 7 | HYDHC-203-001 | 3" x 13" CYLINDER TUBE STAGE | 1 |
| 8 | HYDHC-203-101 | STAGE 1 (2-1/8") POLY SEAL | 1 |
| 9 | HYDHC-203-102 | STAGE 1 (2-1/8") GARRISON SEAL | 1 |
| 10 | HYDHC-204-001 | 3" x 13" CYLINDER TUBE STAGE | 2 |
| 11 | HYDHC-204-101 | STAGE 2 (1-1/2") POLY SEAL | 1 |
| 12 | HYDHC-204-102 | STAGE 2 (1-1/2") GARRISON WIPER | 1 |
| 13 | HYDHC-205-001 | 3" x 13" STAGE 3 CYLINDER TUBE 1 19 HOIST CYLINDER SEAL REBUILD KIT INCLUDES | |
| 14 | HYDHC-206-000 | UPPER PIVOT ASSEMBLY 1 ALL WIPER GASKETS, SEAL GASKETS, & O-RING | |
| 18 | HYDHC-200-100 | HOIST CYLINDER SEAL REBUILD KIT | 1 |
