← Thomas Pre-Cleaner / Dump Cart
15 - 2" Lug Nut · Thomas Thomas Pre-Cleaner / Dump Cart

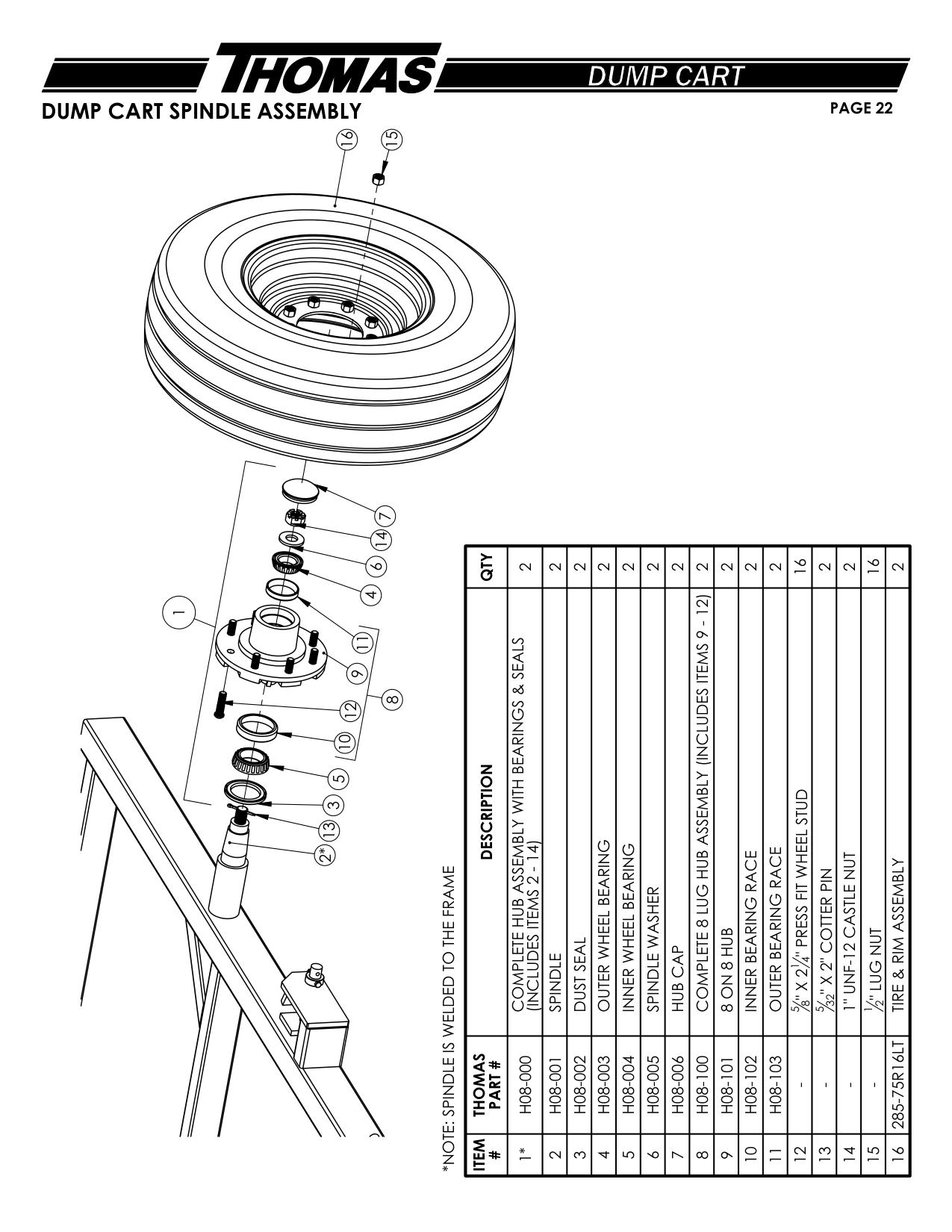

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 2 | H08-001 | SPINDLE | 2 |
| 3 | H08-002 | DUST SEAL | 2 |
| 4 | H08-003 | OUTER WHEEL BEARING | 2 |
| 5 | H08-004 | INNER WHEEL BEARING | 2 |
| 6 | H08-005 | SPINDLE WASHER | 2 |
| 7 | H08-006 | HUB CAP | 2 |
| 8 | H08-100 | COMPLETE 8 LUG HUB ASSEMBLY (INCLUDES ITEMS 9 - 12) | 2 |
| 9 | H08-101 | 8 ON 8 HUB | 2 |
| 10 | H08-102 | INNER BEARING RACE | 2 |
| 11 | H08-103 | OUTER BEARING RACE | 2 |
| 16 | 285-75R16LT | TIRE & RIM ASSEMBLY | 2 |
