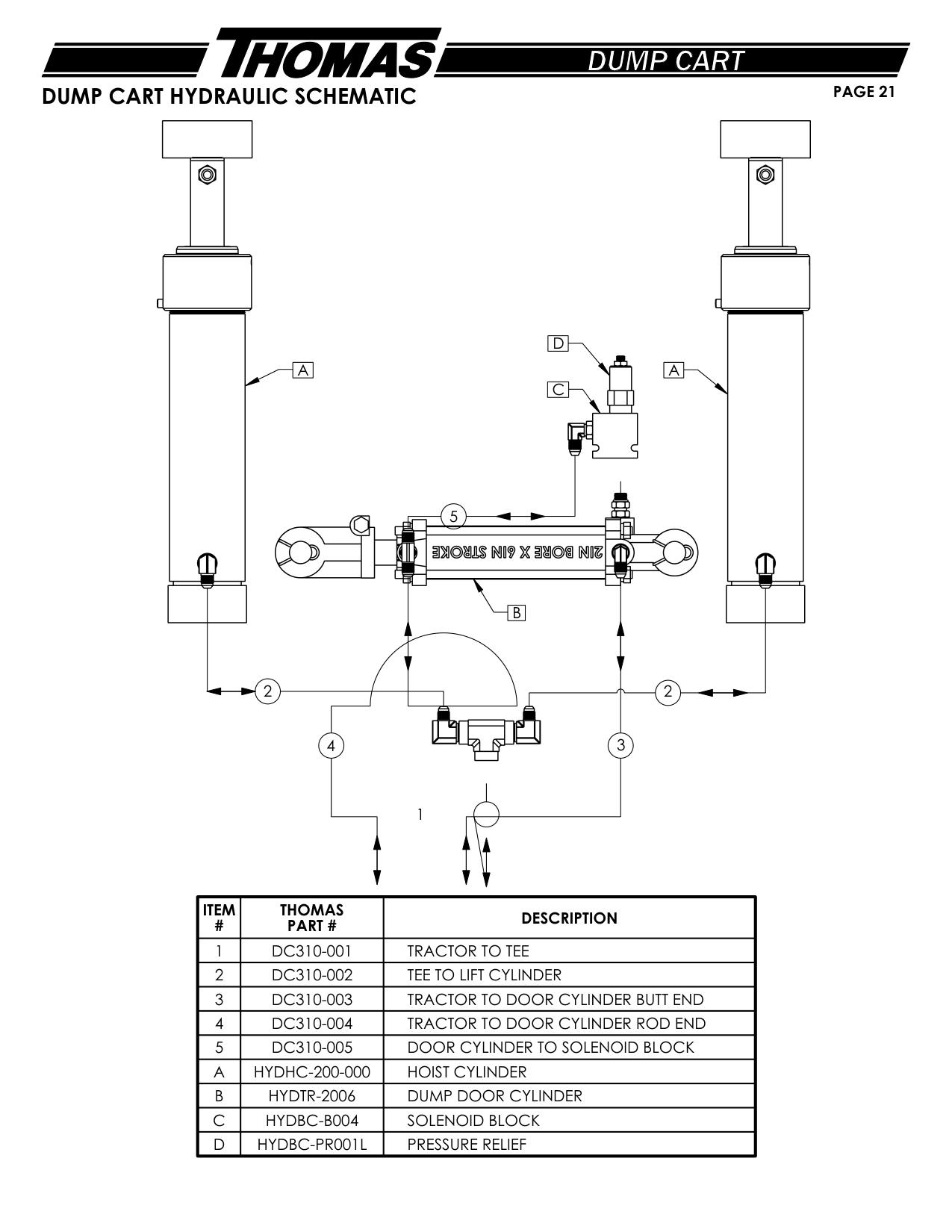

Dump Cart Hydraulic Schematic · Thomas Thomas Pre-Cleaner / Dump Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | HYDHC-200-000 | HOIST CYLINDER | |
| B | HYDTR-2006 | DUMP DOOR CYLINDER | |
| C | HYDBC-B004 | SOLENOID BLOCK | |
| D | HYDBC-PR001L | PRESSURE RELIEF | |
| 1 | DC310-001 | TRACTOR TO TEE | |
| 2 | DC310-002 | TEE TO LIFT CYLINDER | |
| 3 | DC310-003 | TRACTOR TO DOOR CYLINDER BUTT END | |
| 4 | DC310-004 | TRACTOR TO DOOR CYLINDER ROD END | |
| 5 | DC310-005 | DOOR CYLINDER TO SOLENOID BLOCK |
