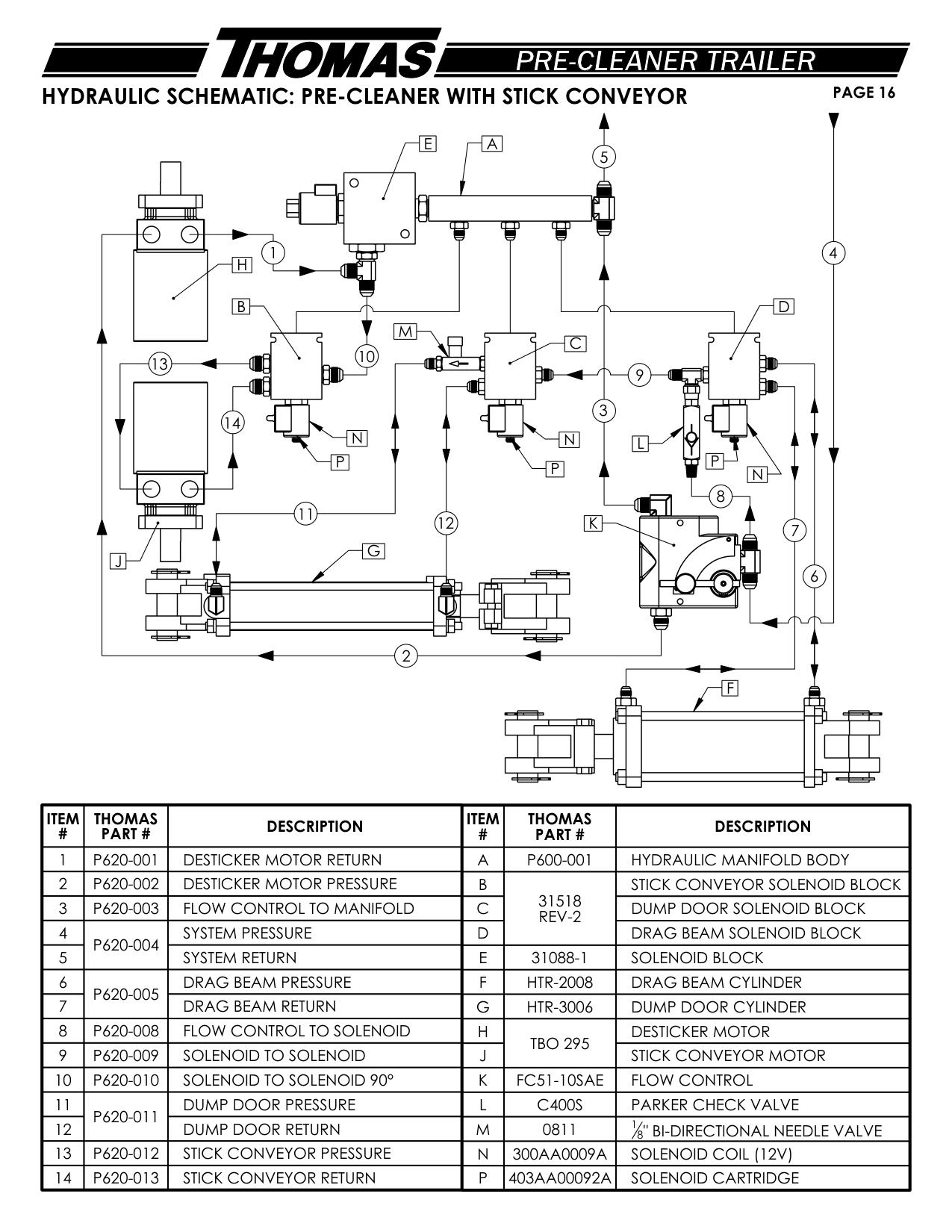

Hydraulic Schematic: Pre-Cleaner With Stick Conveyor · Thomas Thomas Pre-Cleaner / Dump Cart

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 P620-001 DESTICKER MOTOR RETURN A P600-001 HYDRAULIC MANIFOLD BODY
2 P620-002 DESTICKER MOTOR PRESSURE B STICK CONVEYOR SOLENOID BLOCK
3 P620-003 FLOW CONTROL TO MANIFOLD 31518
8 P620-008 FLOW CONTROL TO SOLENOID H DESTICKER MOTOR
9 P620-009 SOLENOID TO SOLENOID J STICK CONVEYOR MOTOR
10 P620-010 SOLENOID TO SOLENOID 90° K FC51-10SAE FLOW CONTROL
13 P620-012 STICK CONVEYOR PRESSURE N 300AA0009A SOLENOID COIL (12V)
14 P620-013 STICK CONVEYOR RETURN P 403AA00092A SOLENOID CARTRIDGE
