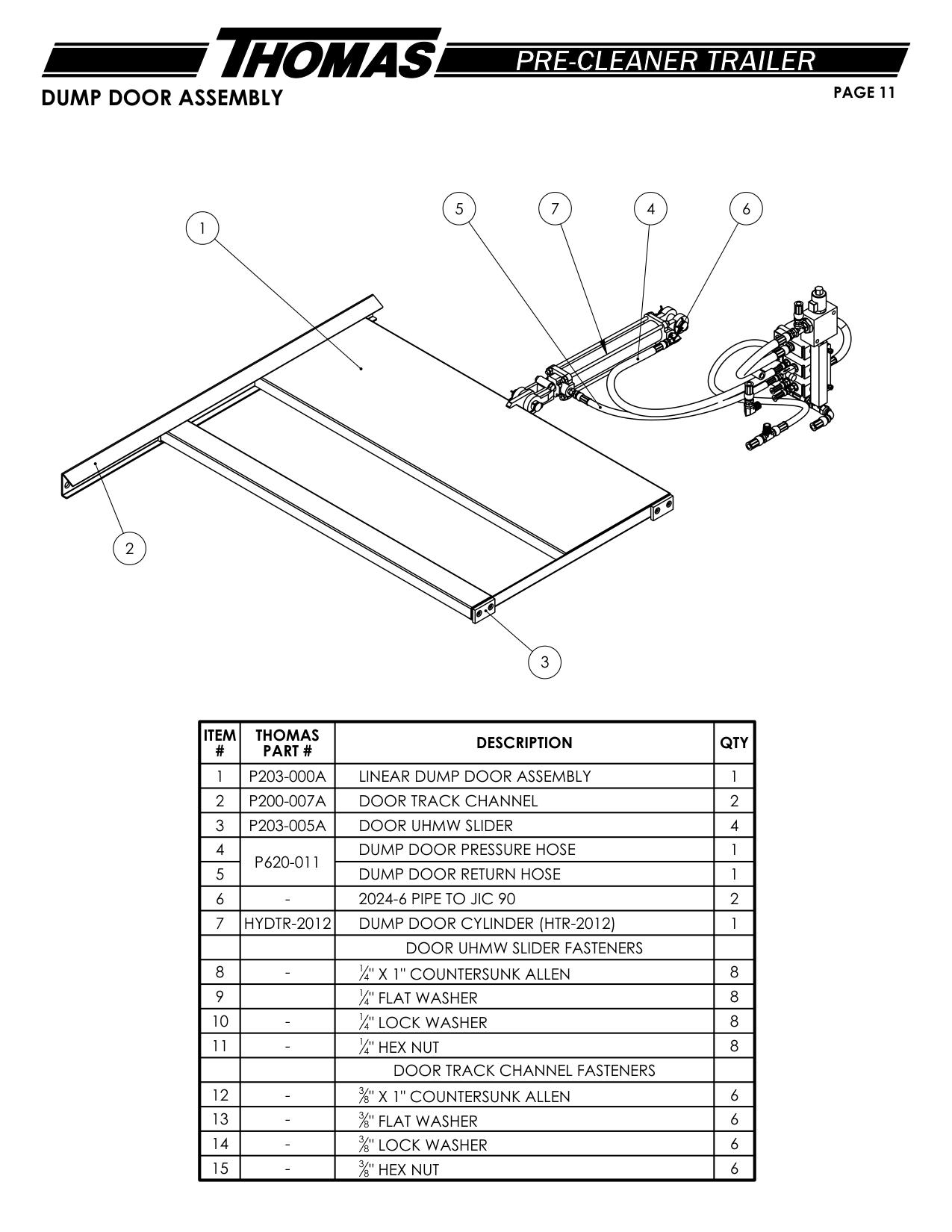

Dump Door Assembly · Thomas Thomas Pre-Cleaner / Dump Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | P203-000A | LINEAR DUMP DOOR ASSEMBLY | 1 |
| 2 | P200-007A | DOOR TRACK CHANNEL | 2 |
| 3 | P203-005A | DOOR UHMW SLIDER | 4 |
| 7 | HYDTR-2012 | DUMP DOOR CYLINDER (HTR-2012) | 1 |
