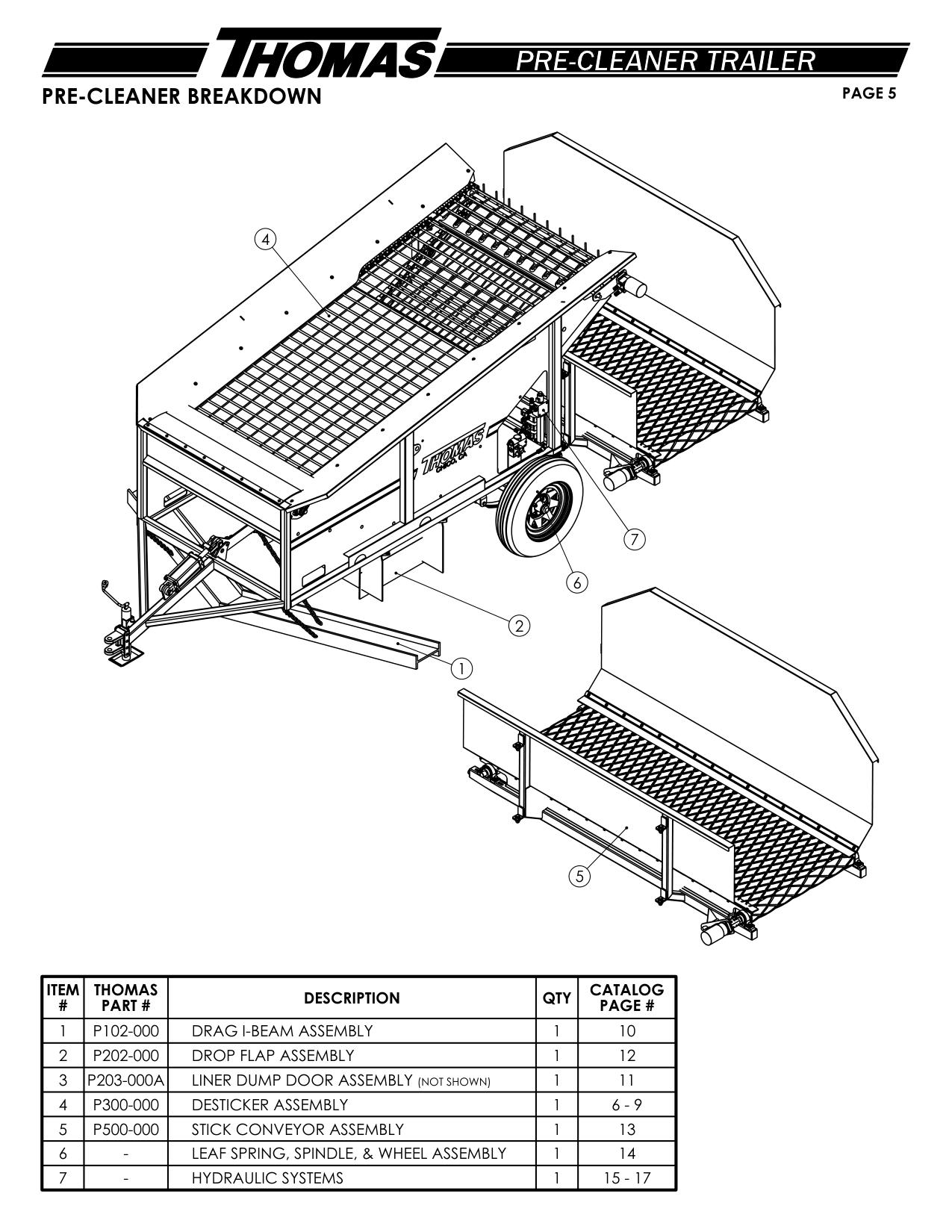

Pre-Cleaner Breakdown · Thomas Thomas Pre-Cleaner / Dump Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | P102-000 | DRAG I-BEAM ASSEMBLY | 1 |
| 2 | P202-000 | DROP FLAP ASSEMBLY | 1 |
| 3 | P203-000A | LINER DUMP DOOR ASSEMBLY (NOT SHOWN) | 1 |
| 4 | P300-000 | DESTICKER ASSEMBLY 1 6-9 | |
| 5 | P500-000 | STICK CONVEYOR ASSEMBLY | 1 |
