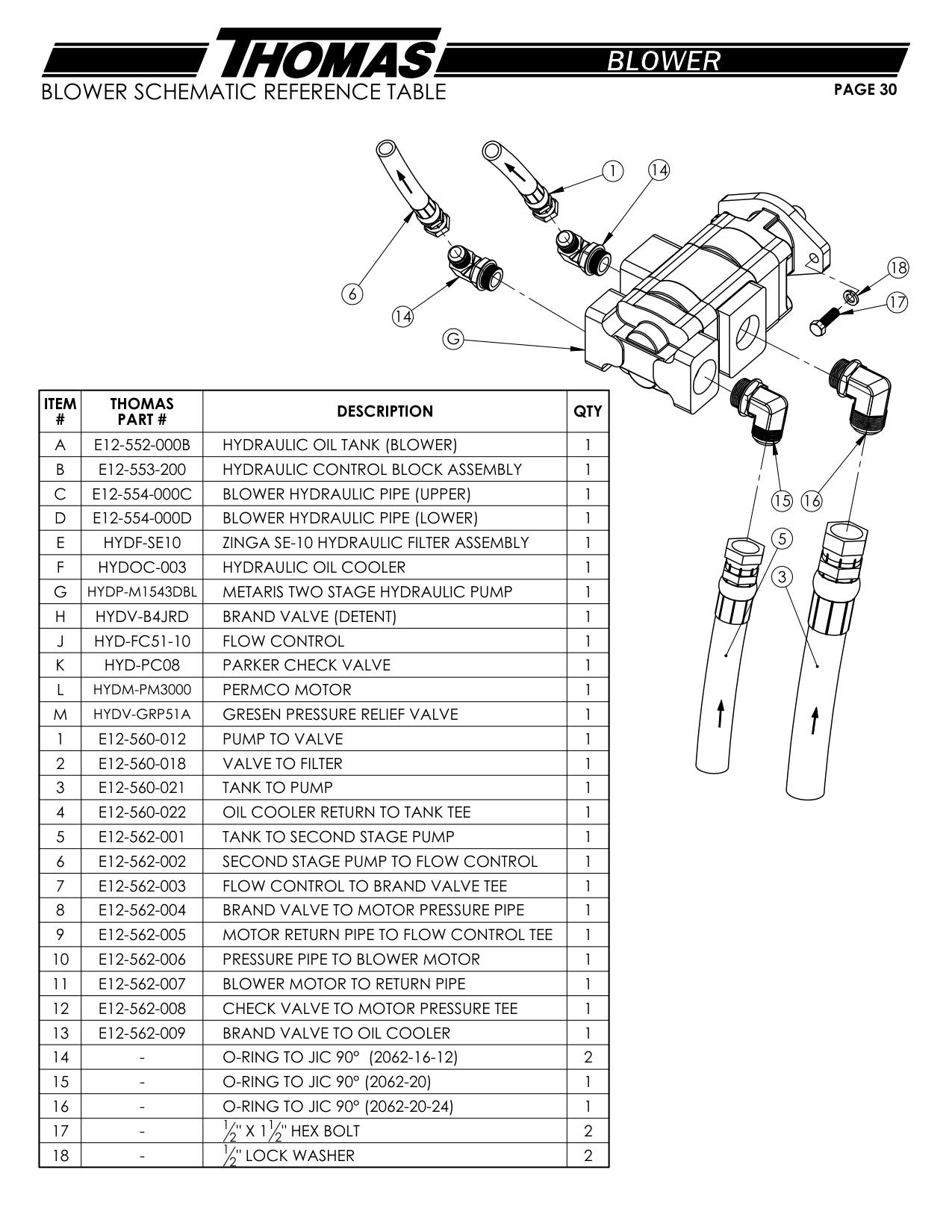

Blower Schematic Reference Table · Thomas Thomas Desticker Blower
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | E12-552-000B | HYDRAULIC OIL TANK (BLOWER) | 1 |
| B | E12-553-200 | HYDRAULIC CONTROL BLOCK ASSEMBLY | 1 |
| C | E12-554-000C | BLOWER HYDRAULIC PIPE (UPPER) 1 | 15 |
| D | E12-554-000D | BLOWER HYDRAULIC PIPE (LOWER) | 1 |
| E | HYDF-SE10 | ZINGA SE-10 HYDRAULIC FILTER ASSEMBLY | 1 |
| F | HYDOC-003 | HYDRAULIC OIL COOLER | 1 |
| G | HYDP-M1543DBL | METARIS TWO STAGE HYDRAULIC PUMP | 1 |
| H | HYDV-B4JRD | BRAND VALVE (DETENT) | 1 |
| J | HYD-FC51-10 | FLOW CONTROL | 1 |
| K | HYD-PC08 | PARKER CHECK VALVE | 1 |
| L | HYDM-PM3000 | PERMCO MOTOR | 1 |
| M | HYDV-GRP51A | GRESEN PRESSURE RELIEF VALVE | 1 |
| 1 | E12-560-012 | PUMP TO VALVE | 1 |
| 2 | E12-560-018 | VALVE TO FILTER | 1 |
| 3 | E12-560-021 | TANK TO PUMP | 1 |
| 4 | E12-560-022 | OIL COOLER RETURN TO TANK TEE | 1 |
| 5 | E12-562-001 | TANK TO SECOND STAGE PUMP | 1 |
| 6 | E12-562-002 | SECOND STAGE PUMP TO FLOW CONTROL | 1 |
| 7 | E12-562-003 | FLOW CONTROL TO BRAND VALVE TEE | 1 |
| 8 | E12-562-004 | BRAND VALVE TO MOTOR PRESSURE PIPE | 1 |
| 9 | E12-562-005 | MOTOR RETURN PIPE TO FLOW CONTROL TEE | 1 |
| 10 | E12-562-006 | PRESSURE PIPE TO BLOWER MOTOR | 1 |
| 11 | E12-562-007 | BLOWER MOTOR TO RETURN PIPE | 1 |
| 12 | E12-562-008 | CHECK VALVE TO MOTOR PRESSURE TEE | 1 |
| 13 | E12-562-009 | BRAND VALVE TO OIL COOLER | 1 |
