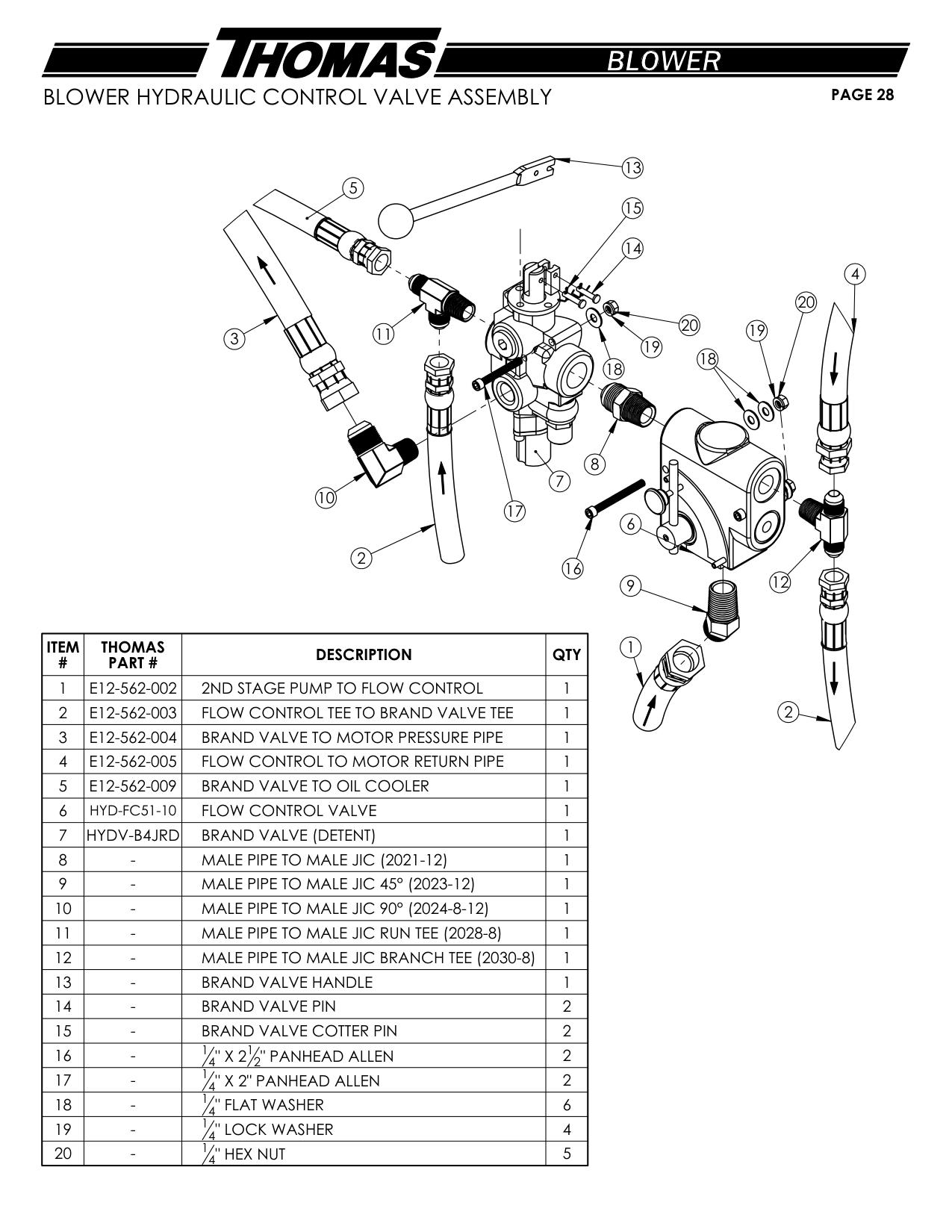

Blower Hydraulic Control Valve Assembly · Thomas Thomas Desticker Blower
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | E12-562-002 | 2ND STAGE PUMP TO FLOW CONTROL | 1 |
| 2 | E12-562-003 | FLOW CONTROL TEE TO BRAND VALVE TEE | 1 |
| 3 | E12-562-004 | BRAND VALVE TO MOTOR PRESSURE PIPE | 1 |
| 4 | E12-562-005 | FLOW CONTROL TO MOTOR RETURN PIPE | 1 |
| 5 | E12-562-009 | BRAND VALVE TO OIL COOLER | 1 |
| 6 | HYD-FC51-10 | FLOW CONTROL VALVE | 1 |
| 7 | HYDV-B4JRD | BRAND VALVE (DETENT) | 1 |
