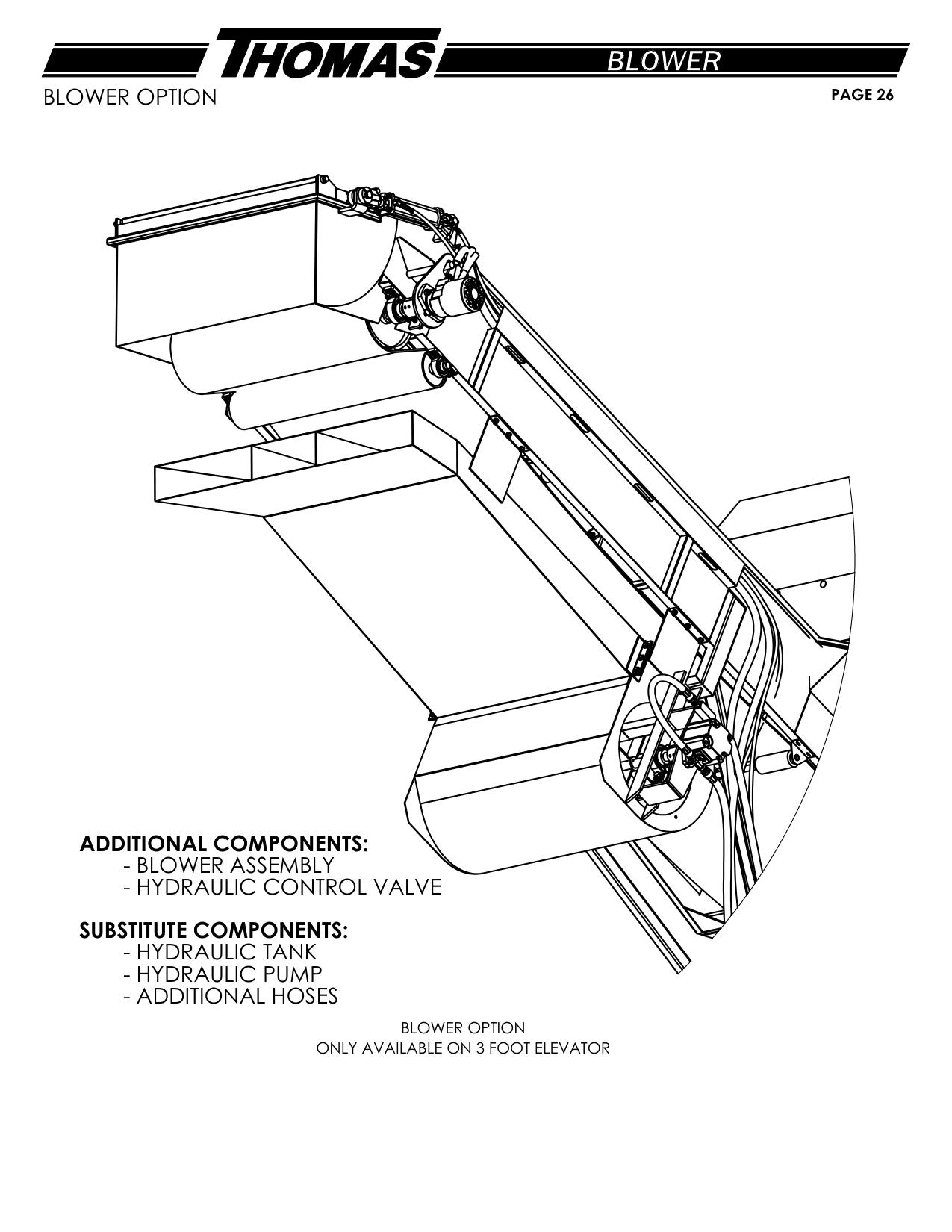

Blower Option · Thomas Thomas Desticker Blower
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | E12-562-006 | PRESSURE PIPE TO BLOWER MOTOR 1 21 - 16" X 1 4" HEX BOLT | 2 |
| 2 | E12-562-007 | BLOWER MOTOR TO RETURN PIPE 1 22 - 16" LOCK WASHER | 2 |
| 3 | E12-562-008 | CHECK VALVE TO MOTOR TEE 1 23 - 16" HEX NUT | 2 |
| 4 | E12-800-002 | MOUNTING LEG BACKER 4 24 - 8" X 1 4" HEX BOLT | 12 |
| 5 | E12-801-000 | BLOWER HOUSING ASSEMBLY 1 25 - 8" X 4" HEX BOLT | 5 |
| 6 | E12-801-007 | REMOVABLE BEARING MOUNT 1 26 - 8" LOCK WASHER | 17 |
| 7 | E12-802-000 | ROTOR ASSEMBLY 1 27 - 8" HEX NUT | 17 |
| 8 | E12-802-001 | ROTOR SHAFT 1 28 - 16 " X 1" HEX BOLT | 6 |
| 9 | E12-803-000 | BLOWER DUCT ASSEMBLY 1 29 - 16 " FLAT WASHER | 12 |
| 10 | HYDM-PM300 | PERMCO BLOWER MOTOR 1 30 - 16 " LOCK WASHER 6 PAGE | 27 |
| 11 | HYDV-PC08 | PARKER CHECK VALVE (C800S) 1 31 - 16 " HEX NUT | 6 |
| 12 | BR-PB20 | 1 4" PILLOW BLOCK BEARING | 2 |
| 13 | CPL-16-20 | 1" X 1 4" SPLIT COLLAR | 1 |
