Diagram · Thomas Thomas Desticker Blower

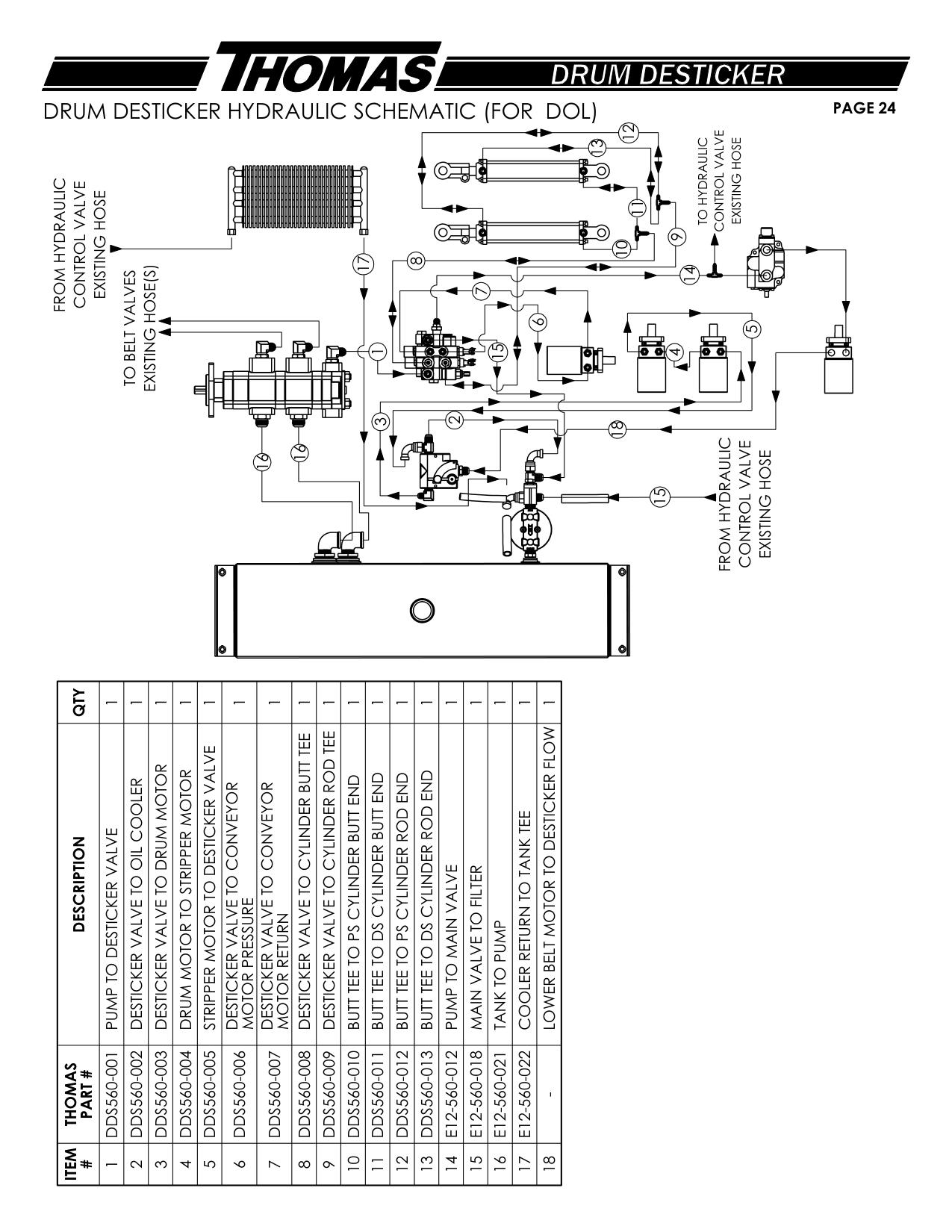

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | DDS560-001 | PUMP TO DESTICKER VALVE | 1 |
| 2 | DDS560-002 | DESTICKER VALVE TO OIL COOLER 1 TO BELT VALVES | |
| 3 | DDS560-003 | DESTICKER VALVE TO DRUM MOTOR | 1 |
| 4 | DDS560-004 | DRUM MOTOR TO STRIPPER MOTOR | 1 |
| 5 | DDS560-005 | STRIPPER MOTOR TO DESTICKER VALVE | 1 |
| 8 | DDS560-008 | DESTICKER VALVE TO CYLINDER BUTT TEE | 1 |
| 9 | DDS560-009 | DESTICKER VALVE TO CYLINDER ROD TEE | 1 |
| 10 | DDS560-010 | BUTT TEE TO PS CYLINDER BUTT END | 1 |
| 11 | DDS560-011 | BUTT TEE TO DS CYLINDER BUTT END 1 | 3 |
| 12 | DDS560-012 | BUTT TEE TO PS CYLINDER ROD END | 1 |
| 13 | DDS560-013 | BUTT TEE TO DS CYLINDER ROD END | 1 |
| 14 | E12-560-012 | PUMP TO MAIN VALVE | 1 |
| 15 | E12-560-018 | MAIN VALVE TO FILTER | 1 |
| 16 | E12-560-021 | TANK TO PUMP | 1 |
