17 E12-560-022 Cooler Return To Tank Tee · Thomas Thomas Desticker Blower

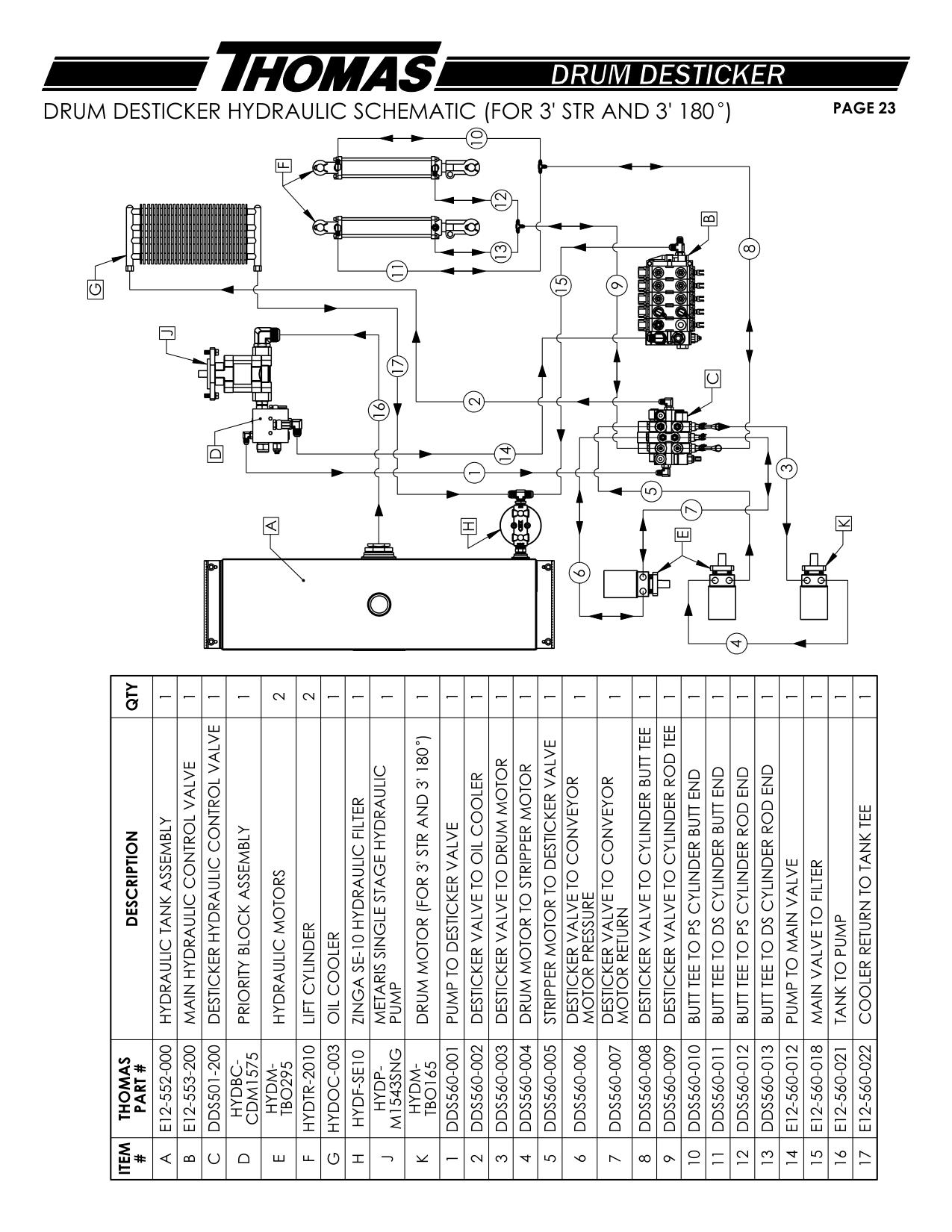

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | E12-552-000 | HYDRAULIC TANK ASSEMBLY 1 J | |
| B | E12-553-200 | MAIN HYDRAULIC CONTROL VALVE | 1 |
| C | DDS501-200 | DESTICKER HYDRAULIC CONTROL VALVE 1 D | |
| F | HYDTR-2010 | LIFT CYLINDER | 2 |
| G | HYDOC-003 | OIL COOLER | 1 |
| H | HYDF-SE10 | ZINGA SE-10 HYDRAULIC FILTER | 1 |
| 1 | DDS560-001 | PUMP TO DESTICKER VALVE | 1 |
| 2 | DDS560-002 | DESTICKER VALVE TO OIL COOLER | 1 |
| 3 | DDS560-003 | DESTICKER VALVE TO DRUM MOTOR 1 14 | 13 |
| 4 | DDS560-004 | DRUM MOTOR TO STRIPPER MOTOR | 1 |
| 5 | DDS560-005 | STRIPPER MOTOR TO DESTICKER VALVE | 1 |
| 8 | DDS560-008 | DESTICKER VALVE TO CYLINDER BUTT TEE | 1 |
| 9 | DDS560-009 | DESTICKER VALVE TO CYLINDER ROD TEE | 1 |
| 10 | DDS560-010 | BUTT TEE TO PS CYLINDER BUTT END | 1 |
| 11 | DDS560-011 | BUTT TEE TO DS CYLINDER BUTT END | 1 |
| 12 | DDS560-012 | BUTT TEE TO PS CYLINDER ROD END | 1 |
| 13 | DDS560-013 | BUTT TEE TO DS CYLINDER ROD END | 1 |
| 14 | E12-560-012 | PUMP TO MAIN VALVE | 1 |
| 15 | E12-560-018 | MAIN VALVE TO FILTER | 1 |
| 16 | E12-560-021 | TANK TO PUMP 1 K | |
| 17 | E12-560-022 | COOLER RETURN TO TANK TEE | 1 |
