Drum Components · Thomas Thomas Desticker Blower

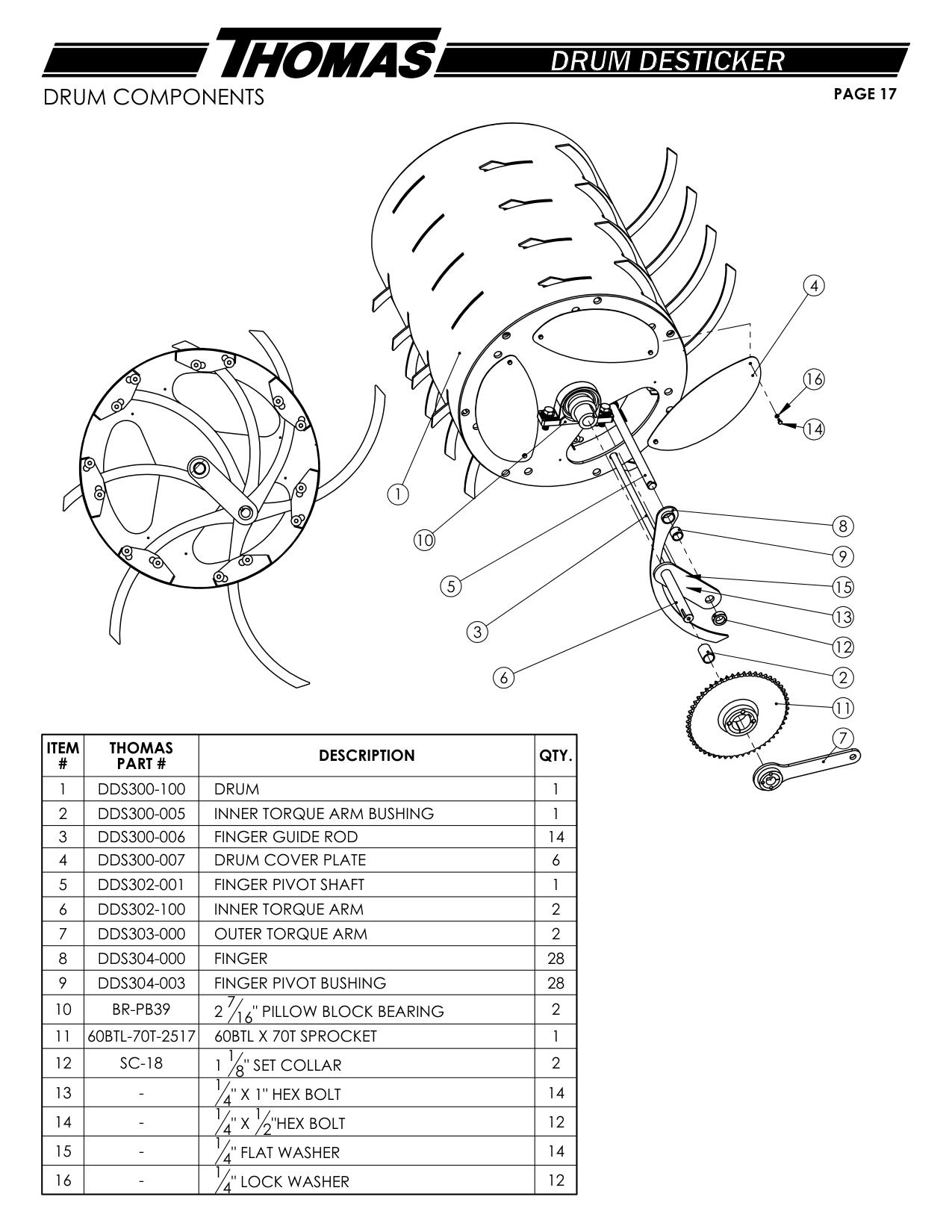

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | DDS300-100 | DRUM | 1 |
| 1 | DDS201-000 | STRIPPER WHEEL 1 13 - 4" FLAT WASHER | 2 |
| 2 | DDS300-005 | INNER TORQUE ARM BUSHING | 1 |
| 2 | DDS200-100 | CROSSMEMBER 1 14 - 4" NYLOCK NUT | 2 |
| 3 | DDS300-006 | FINGER GUIDE ROD | 14 |
| 3 | DDS200-003A | DRIVER SIDE COVER PANEL 1 15 - 8" X 1 2" HEX BOLT | 4 |
| 4 | DDS300-007 | DRUM COVER PLATE | 6 |
| 4 | DDS200-003B | PASSENGER SIDE COVER PANEL 1 16 - 8" X 1 4" HEX BOLT | 8 |
| 5 | DDS302-001 | FINGER PIVOT SHAFT | 1 |
| 5 | DDS560-005 | DRUM MOTOR TO STRIPPER MOTOR 1 17 - 8" FLAT WASHER | 16 |
| 6 | DDS302-100 | INNER TORQUE ARM | 2 |
| 6 | DDS560-006 | STRIPPER MOTOR TO VALVE 1 18 - 8" SAE WASHER | 4 |
| 7 | DDS303-000 | OUTER TORQUE ARM | 2 |
| 7 | E01-555-001 | TORQUE ARM 1 19 - 8" LOCK WASHER 12 PAGE | 18 |
| 8 | DDS304-000 | FINGER | 28 |
| 8 | HYDM-TB0295 | STRIPPER WHEEL MOTOR 1 20 - 8" HEX NUT | 10 |
| 9 | DDS304-003 | FINGER PIVOT BUSHING | 28 |
| 10 | BR-PB39 | 2 16" PILLOW BLOCK BEARING | 2 |
| 10 | CPL-16-16 | 1" X 1" SPLIT COLLAR | 1 |
| 11 | 60BTL-70T-2517 | 60BTL X 70T SPROCKET | 1 |
| 12 | SC-18 | 1 8" SET COLLAR | 2 |
