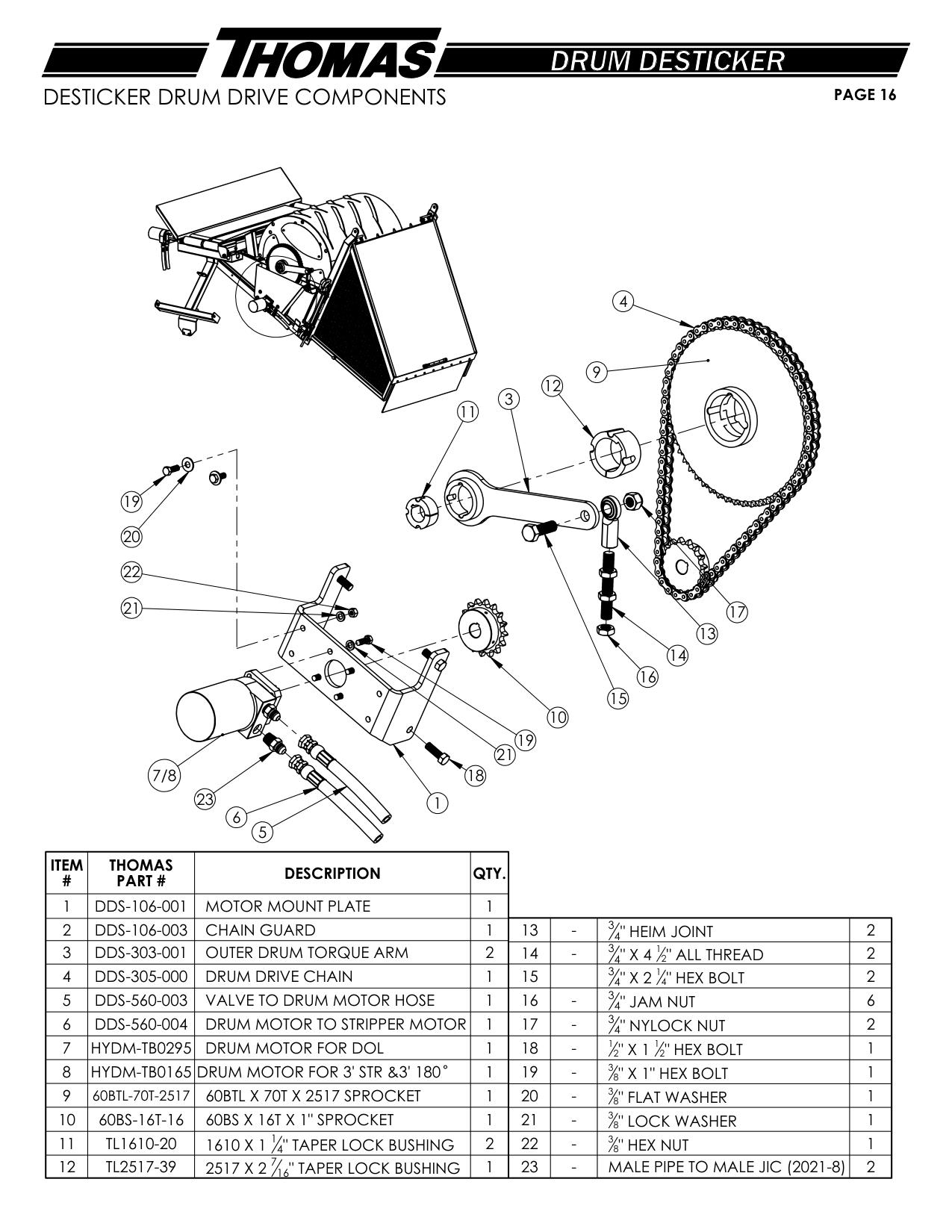

Desticker Drum Drive Components · Thomas Thomas Desticker Blower
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | DDS-106-001 | MOTOR MOUNT PLATE | 1 |
| 2 | DDS-106-003 | CHAIN GUARD 1 13 - 4" HEIM JOINT | 2 |
| 3 | DDS-303-001 | OUTER DRUM TORQUE ARM 2 14 - | 1 |
| 4 | DDS-305-000 | DRUM DRIVE CHAIN 1 | 15 |
| 5 | DDS-560-003 | VALVE TO DRUM MOTOR HOSE 1 16 - 4" JAM NUT | 6 |
| 6 | DDS-560-004 | DRUM MOTOR TO STRIPPER MOTOR 1 17 - 4" NYLOCK NUT | 2 |
| 7 | HYDM-TB0295 | DRUM MOTOR FOR DOL 1 18 - | 1 |
| 8 | HYDM-TB0165 | DRUM MOTOR FOR 3' STR &3' 180 1 19 - | 3 |
| 9 | 60BTL-70T-2517 | 60BTL X 70T X 2517 SPROCKET 1 20 - | 3 |
| 10 | 60BS-16T-16 | 60BS X 16T X 1" SPROCKET 1 21 - | 3 |
| 11 | TL1610-20 | 1610 X 1 4" TAPER LOCK BUSHING 2 22 - | 3 |
| 12 | TL2517-39 | 2517 X 2 16" TAPER LOCK BUSHING 1 23 - MALE PIPE TO MALE JIC (2021-8) | 2 |
