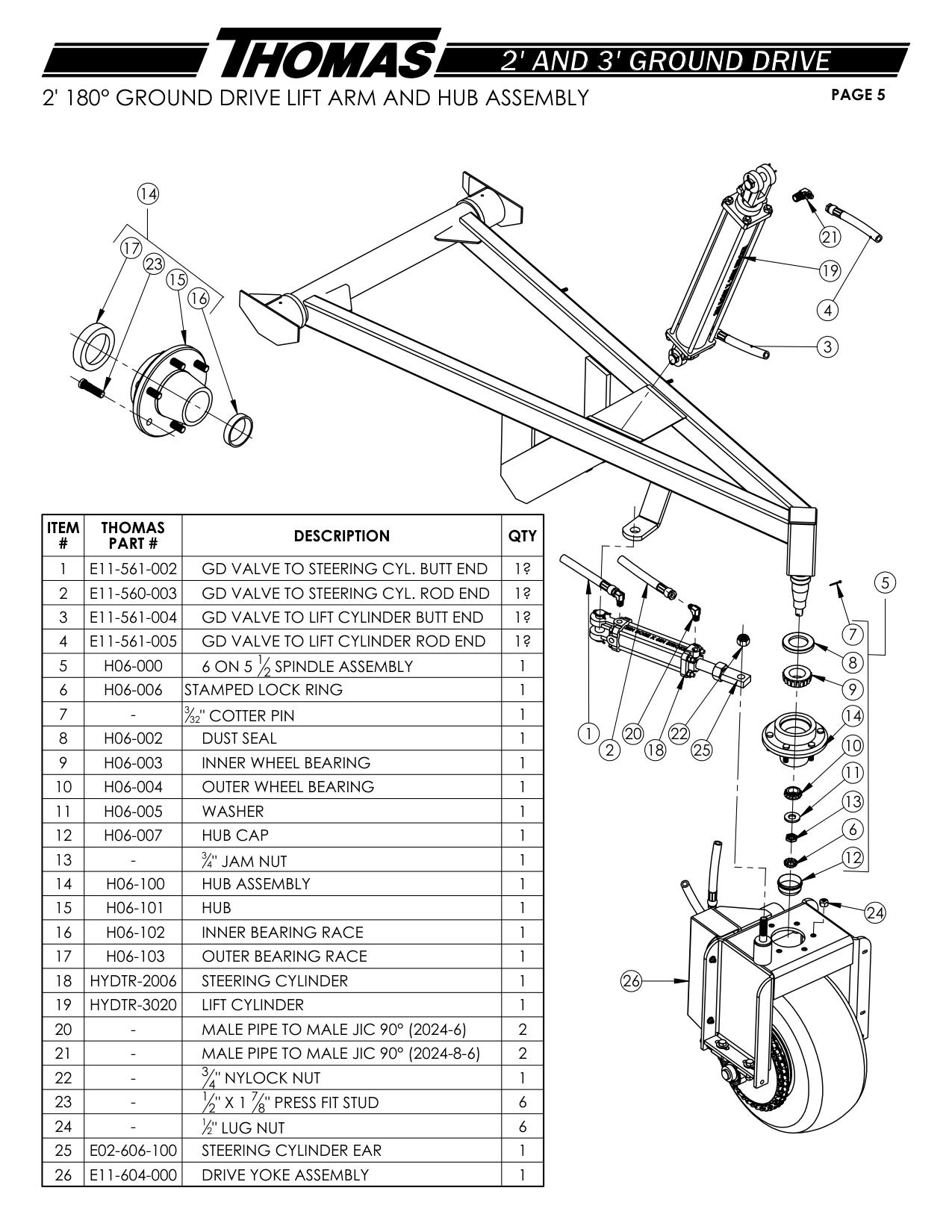

2' 180° Ground Drive Lift Arm And Hub Assembly · Thomas Thomas Desticker Blower
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | E11-561-002 | GD VALVE TO STEERING CYL. BUTT END 1? | |
| 2 | E11-560-003 | GD VALVE TO STEERING CYL. ROD END 1? | |
| 3 | E11-561-004 | GD VALVE TO LIFT CYLINDER BUTT END 1? | |
| 4 | E11-561-005 | GD VALVE TO LIFT CYLINDER ROD END 1? | 7 |
| 5 | H06-000 | 6 ON 5 12 SPINDLE ASSEMBLY | 1 |
| 6 | H06-006 | STAMPED LOCK RING | 1 |
| 8 | H06-002 | DUST SEAL 1 1 | 20 |
| 9 | H06-003 | INNER WHEEL BEARING | 1 |
| 10 | H06-004 | OUTER WHEEL BEARING | 1 |
| 11 | H06-005 | WASHER | 1 |
| 12 | H06-007 | HUB CAP | 1 |
| 14 | H06-100 | HUB ASSEMBLY | 1 |
| 15 | H06-101 | HUB | 1 |
| 16 | H06-102 | INNER BEARING RACE | 1 |
| 17 | H06-103 | OUTER BEARING RACE | 1 |
| 18 | HYDTR-2006 | STEERING CYLINDER | 1 |
| 19 | HYDTR-3020 | LIFT CYLINDER | 1 |
| 25 | E02-606-100 | STEERING CYLINDER EAR | 1 |
| 26 | E11-604-000 | DRIVE YOKE ASSEMBLY | 1 |
