2' And 3' Straight Ground Drive Lift Arm And Hub Assembly · Thomas Thomas Desticker Blower

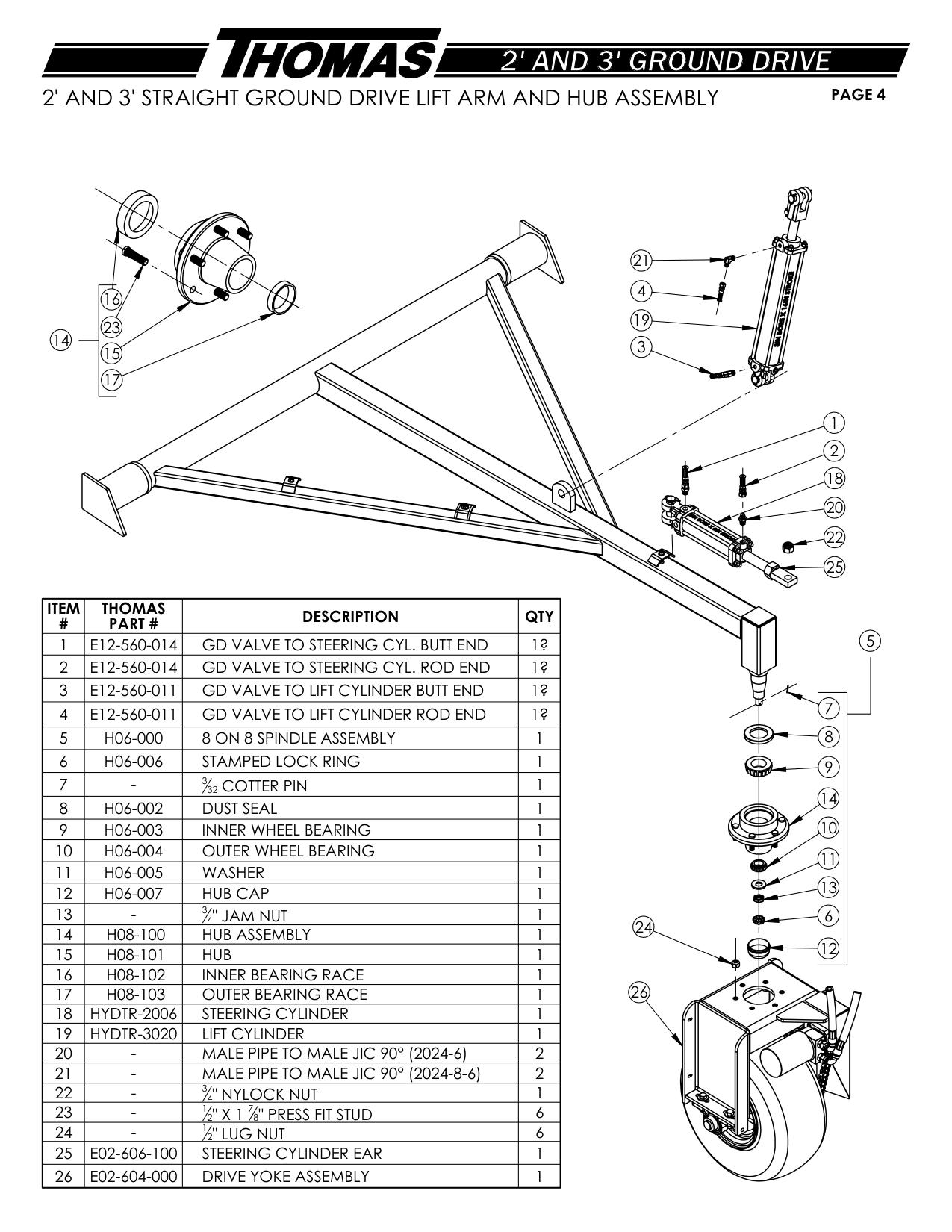

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | E12-560-014 | GD VALVE TO STEERING CYL. BUTT END 1? | 5 |
| 2 | E12-560-014 | GD VALVE TO STEERING CYL. ROD END 1? | |
| 3 | E12-560-011 | GD VALVE TO LIFT CYLINDER BUTT END 1? | |
| 4 | E12-560-011 | GD VALVE TO LIFT CYLINDER ROD END 1? | 7 |
| 5 | H06-000 | 8 ON 8 SPINDLE ASSEMBLY | 1 |
| 6 | H06-006 | STAMPED LOCK RING | 1 |
| 8 | H06-002 | DUST SEAL | 1 |
| 9 | H06-003 | INNER WHEEL BEARING | 1 |
| 10 | H06-004 | OUTER WHEEL BEARING | 1 |
| 11 | H06-005 | WASHER | 1 |
| 12 | H06-007 | HUB CAP | 1 |
| 14 | H08-100 | HUB ASSEMBLY | 1 |
| 15 | H08-101 | HUB | 1 |
| 16 | H08-102 | INNER BEARING RACE | 1 |
| 17 | H08-103 | OUTER BEARING RACE | 1 |
| 18 | HYDTR-2006 | STEERING CYLINDER | 1 |
| 19 | HYDTR-3020 | LIFT CYLINDER | 1 |
| 25 | E02-606-100 | STEERING CYLINDER EAR | 1 |
| 26 | E02-604-000 | DRIVE YOKE ASSEMBLY | 1 |
