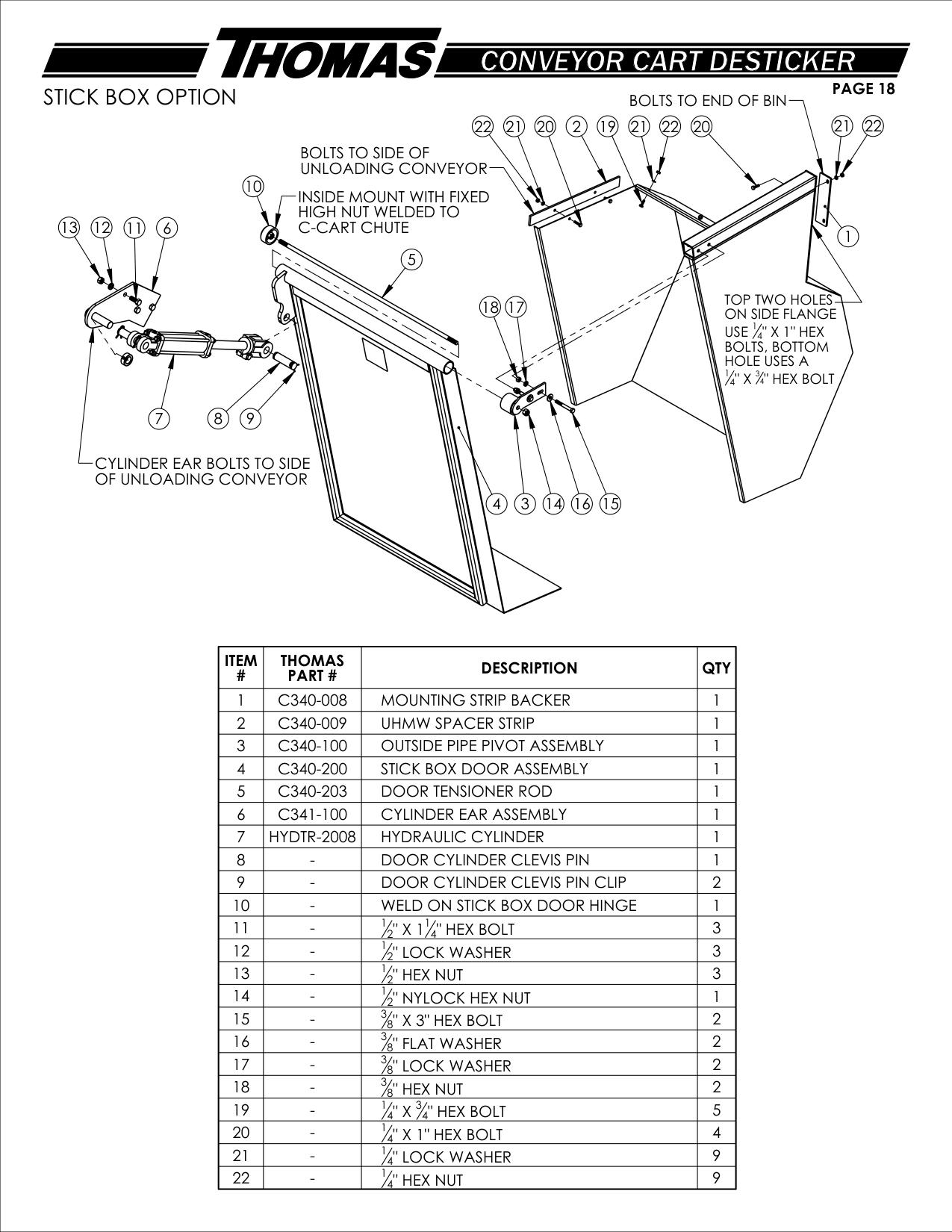

Diagram · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C340-008 | MOUNTING STRIP BACKER | 1 |
| 2 | C340-009 | UHMW SPACER STRIP | 1 |
| 3 | C340-100 | OUTSIDE PIPE PIVOT ASSEMBLY | 1 |
| 4 | C340-200 | STICK BOX DOOR ASSEMBLY | 1 |
| 5 | C340-203 | DOOR TENSIONER ROD | 1 |
| 6 | C341-100 | CYLINDER EAR ASSEMBLY | 1 |
| 7 | HYDTR-2008 | HYDRAULIC CYLINDER | 1 |
