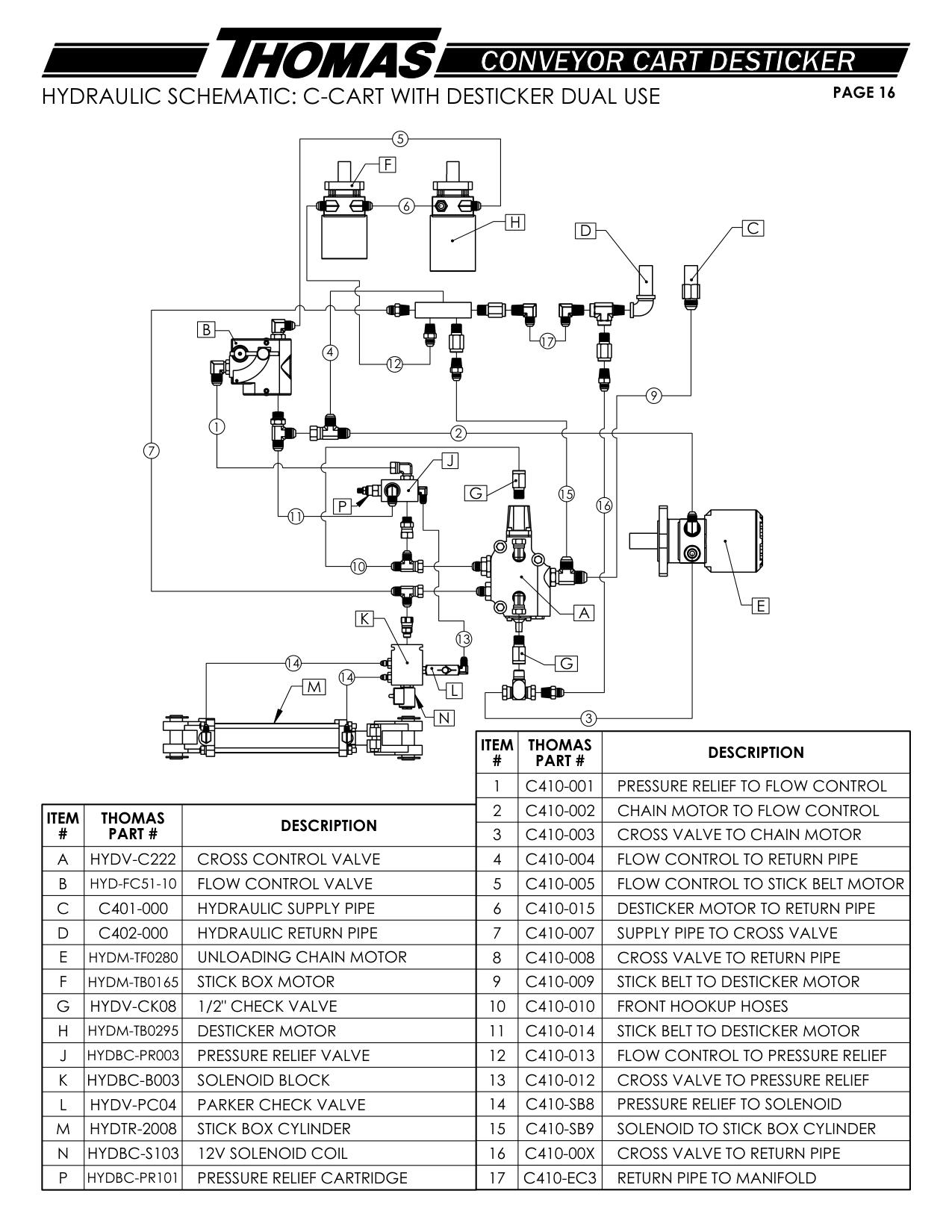

Hydraulic Schematic: C-Cart With Desticker Dual Use · Thomas Thomas Desticker

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
A HYDV-C222 CROSS CONTROL VALVE 4 C410-004 FLOW CONTROL TO RETURN PIPE
B HYD-FC51-10 FLOW CONTROL VALVE 5 C410-005 FLOW CONTROL TO STICK BELT MOTOR
C C401-000 HYDRAULIC SUPPLY PIPE 6 C410-015 DESTICKER MOTOR TO RETURN PIPE
D C402-000 HYDRAULIC RETURN PIPE 7 C410-007 SUPPLY PIPE TO CROSS VALVE
E HYDM-TF0280 UNLOADING CHAIN MOTOR 8 C410-008 CROSS VALVE TO RETURN PIPE
F HYDM-TB0165 STICK BOX MOTOR 9 C410-009 STICK BELT TO DESTICKER MOTOR
G HYDV-CK08 1/2" CHECK VALVE 10 C410-010 FRONT HOOKUP HOSES
H HYDM-TB0295 DESTICKER MOTOR 11 C410-014 STICK BELT TO DESTICKER MOTOR
J HYDBC-PR003 PRESSURE RELIEF VALVE 12 C410-013 FLOW CONTROL TO PRESSURE RELIEF
K HYDBC-B003 SOLENOID BLOCK 13 C410-012 CROSS VALVE TO PRESSURE RELIEF
L HYDV-PC04 PARKER CHECK VALVE 14 C410-SB8 PRESSURE RELIEF TO SOLENOID
M HYDTR-2008 STICK BOX CYLINDER 15 C410-SB9 SOLENOID TO STICK BOX CYLINDER
N HYDBC-S103 12V SOLENOID COIL 16 C410-00X CROSS VALVE TO RETURN PIPE
P HYDBC-PR101 PRESSURE RELIEF CARTRIDGE 17 C410-EC3 RETURN PIPE TO MANIFOLD
1 C410-001 PRESSURE RELIEF TO FLOW CONTROL
1 C330-000 STICK CONVEYOR BODY 1 18 - 8
2 C330-100A STICK CONVEYOR BELT - '97 THRU C. (94 ") 2 1 19 - 8 " LOCK WASHER 4
3 C330-100B STICK CONVEYOR BELT - '84 THRU '96 (89") 1 20 - 8 " SAE WASHER 4
4 C331-000 STICK CONVEYOR DEFLECTOR 1 21 - 8 " HEX NUT 4
5 C332-000 STICK CONVEYOR DRIVE ROLLER 1 22 - 16 " X 1" HEX BOLT 4
6 C333-000 RETURN/TAKE-UP ROLLER 1 23 - 16 " LOCK WASHER 4
7 C333-100 COMPLETE TAKE-UP BOLT 2 24 - 4
8 E01-555-001 TORQUE ARM 1 25 - 4 " FLAT WASHER 8
9 HYDM-TB0165 STICK CONVEYOR MOTOR 2 26 - 4 " LOCK WASHER 4 PAGE 17
10 HYDM-PSK90 HYDRAULIC MOTOR SEAL KIT (NOT SHOWN) - 27 - 4 " HEX NUT 4
12 BR-TU-16 1" TAKE-UP BEARING (HCST205-16) 1
