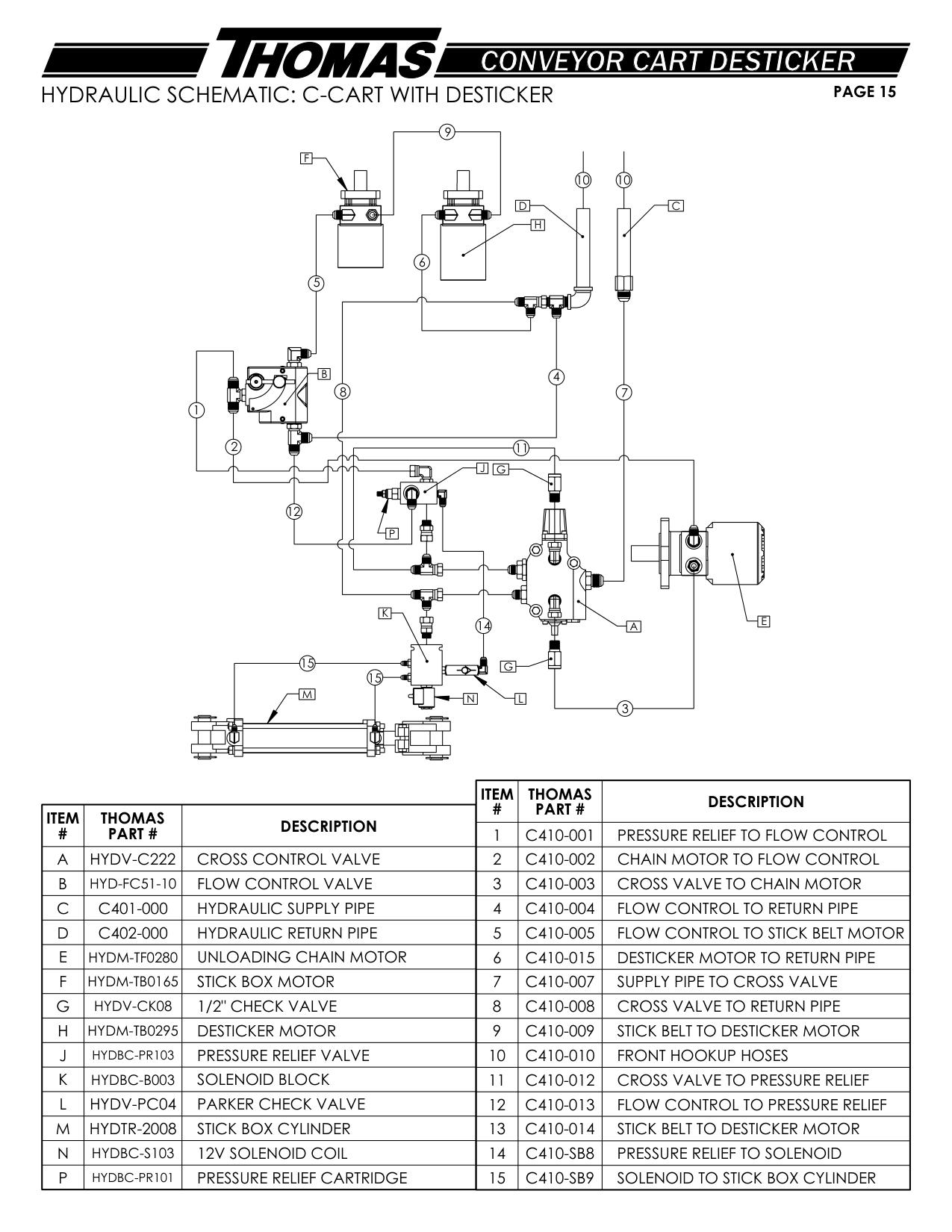

Hydraulic Schematic: C-Cart With Desticker · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A | HYDV-C222 | CROSS CONTROL VALVE 2 C410-002 CHAIN MOTOR TO FLOW CONTROL | |
| B | HYD-FC51-10 | FLOW CONTROL VALVE 3 C410-003 CROSS VALVE TO CHAIN MOTOR | |
| C | C401-000 | HYDRAULIC SUPPLY PIPE 4 C410-004 FLOW CONTROL TO RETURN PIPE | |
| D | C402-000 | HYDRAULIC RETURN PIPE 5 C410-005 FLOW CONTROL TO STICK BELT MOTOR | |
| E | HYDM-TF0280 | UNLOADING CHAIN MOTOR 6 C410-015 DESTICKER MOTOR TO RETURN PIPE | |
| F | HYDM-TB0165 | STICK BOX MOTOR 7 C410-007 SUPPLY PIPE TO CROSS VALVE | |
| G | HYDV-CK08 | 1/2" CHECK VALVE 8 C410-008 CROSS VALVE TO RETURN PIPE | |
| H | HYDM-TB0295 | DESTICKER MOTOR 9 C410-009 STICK BELT TO DESTICKER MOTOR | |
| J | HYDBC-PR103 | PRESSURE RELIEF VALVE 10 C410-010 FRONT HOOKUP HOSES | |
| K | HYDBC-B003 | SOLENOID BLOCK 11 C410-012 CROSS VALVE TO PRESSURE RELIEF | |
| L | HYDV-PC04 | PARKER CHECK VALVE 12 C410-013 FLOW CONTROL TO PRESSURE RELIEF | |
| M | HYDTR-2008 | STICK BOX CYLINDER 13 C410-014 STICK BELT TO DESTICKER MOTOR | |
| N | HYDBC-S103 | 12V SOLENOID COIL 14 C410-SB8 PRESSURE RELIEF TO SOLENOID | |
| P | HYDBC-PR101 | PRESSURE RELIEF CARTRIDGE 15 C410-SB9 SOLENOID TO STICK BOX CYLINDER |
