Desticker Return Roller & Idler Sprocket · Thomas Thomas Desticker

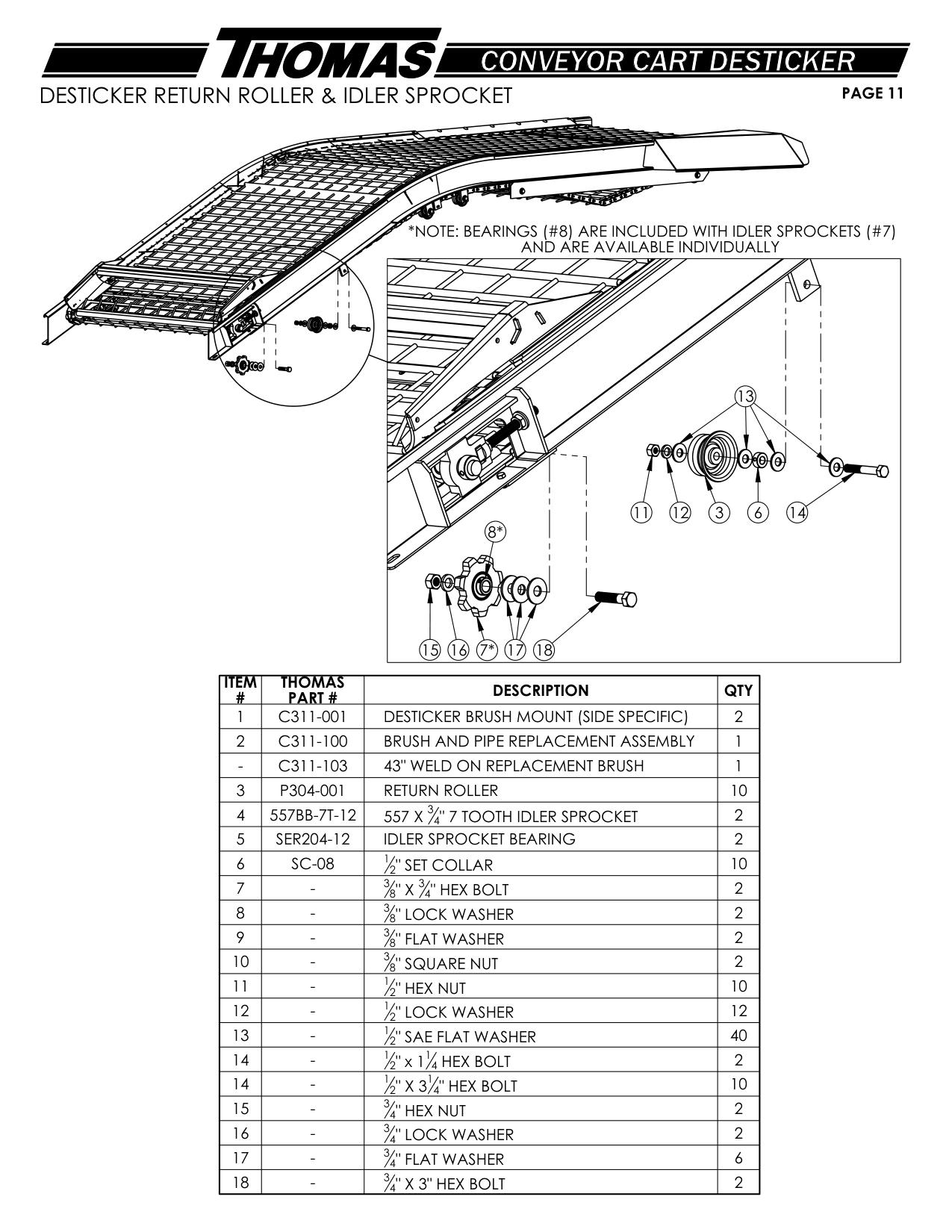

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
- C311-103 43" WELD ON REPLACEMENT BRUSH 1
1 C311-001 DESTICKER BRUSH MOUNT (SIDE SPECIFIC) 2
2 C311-100 BRUSH AND PIPE REPLACEMENT ASSEMBLY 1
3 P304-001 RETURN ROLLER 10
4 557BB-7T-12 557 X 4" 7 TOOTH IDLER SPROCKET 2
5 SER204-12 IDLER SPROCKET BEARING 2
6 SC-08 2" SET COLLAR 10
