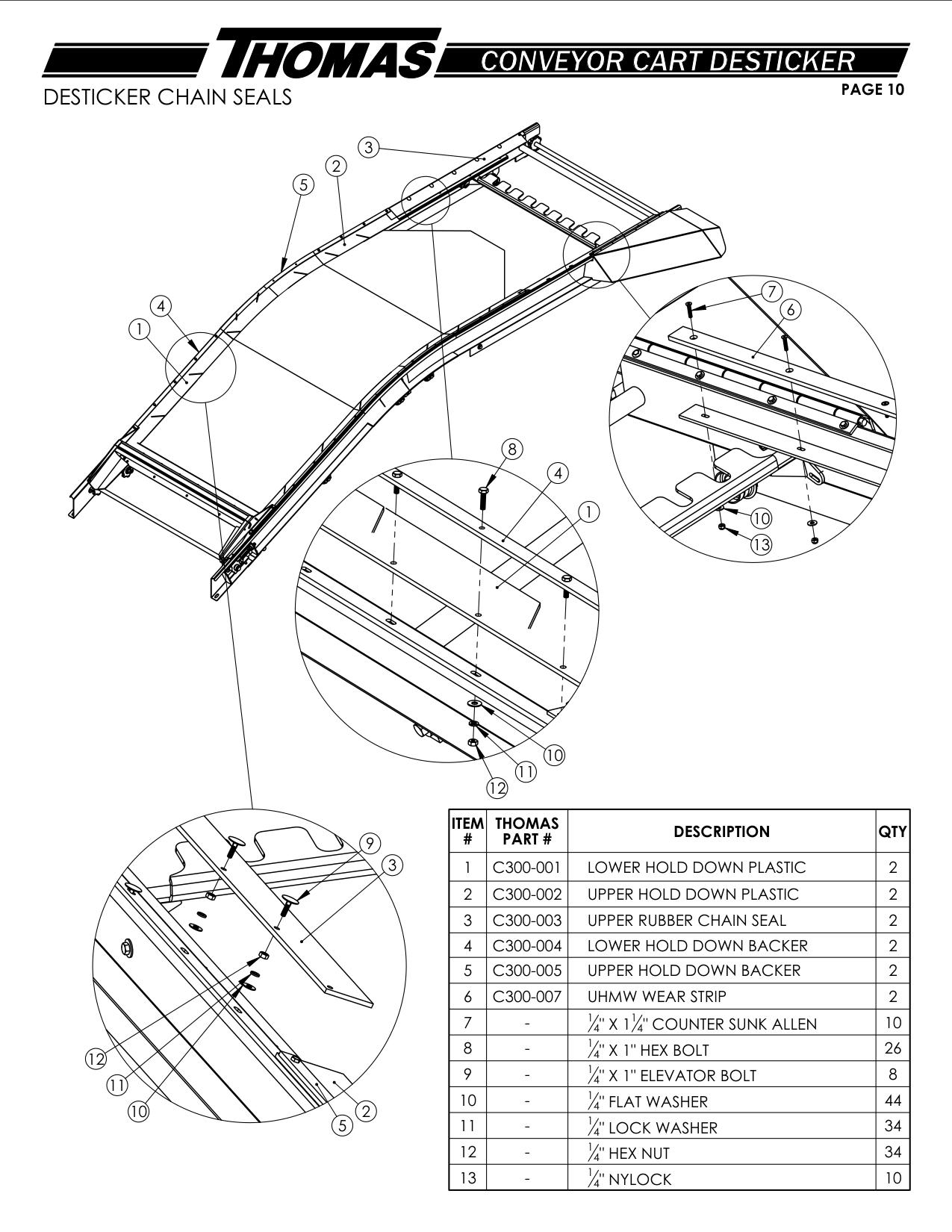

Diagram · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 2 | C300-002 | UPPER HOLD DOWN PLASTIC | 2 |
| 3 | C300-003 | UPPER RUBBER CHAIN SEAL | 2 |
| 4 | C300-004 | LOWER HOLD DOWN BACKER | 2 |
| 5 | C300-005 | UPPER HOLD DOWN BACKER | 2 |
| 6 | C300-007 | UHMW WEAR STRIP | 2 |
