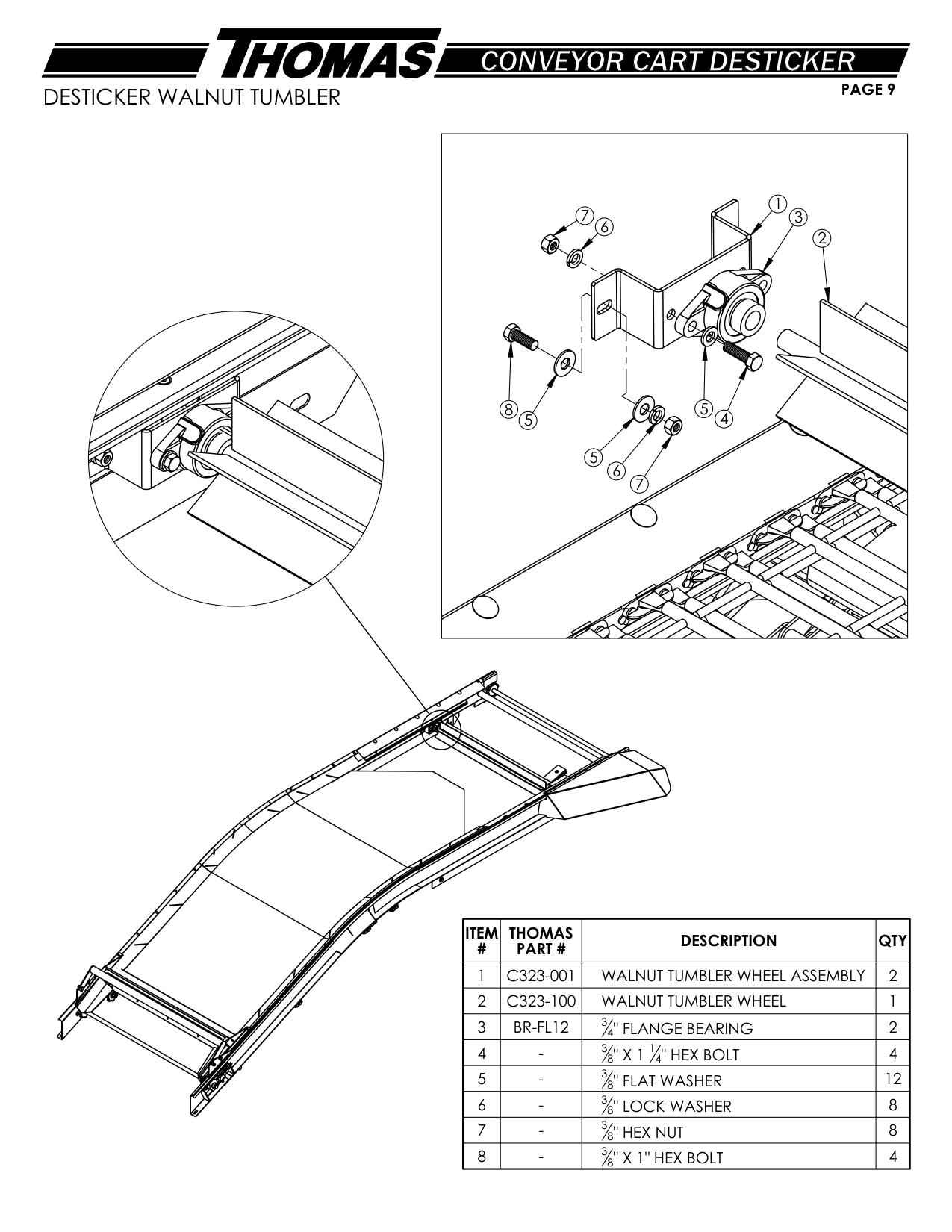

Diagram · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C323-001 | WALNUT TUMBLER WHEEL ASSEMBLY | 2 |
| 2 | C323-100 | WALNUT TUMBLER WHEEL | 1 |
| 3 | BR-FL12 | 4" FLANGE BEARING | 2 |
