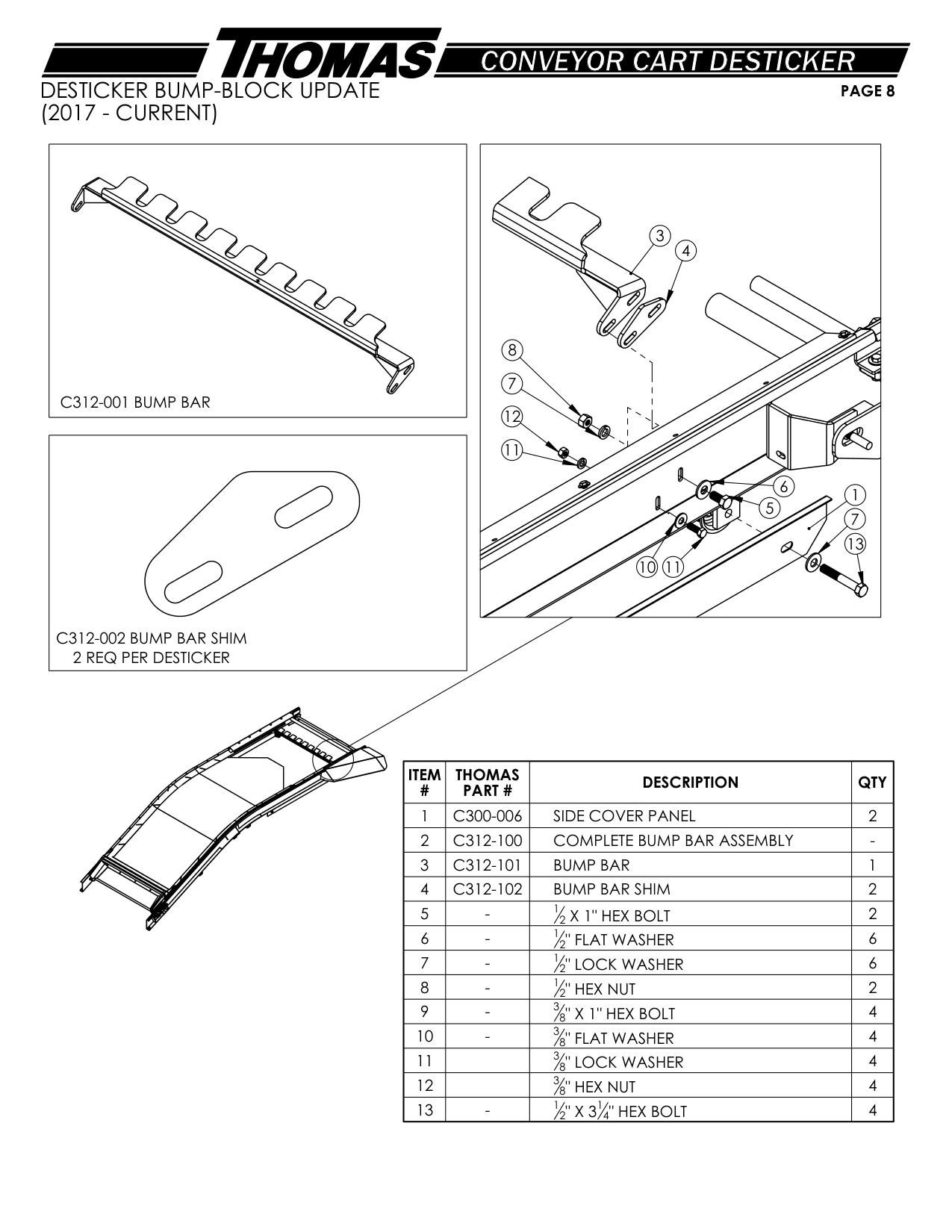

Desticker Bump-Block Update · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C300-006 | SIDE COVER PANEL | 2 |
| 2 | C312-100 | COMPLETE BUMP BAR ASSEMBLY | |
| 3 | C312-101 | BUMP BAR | 1 |
| 4 | C312-102 | BUMP BAR SHIM | 2 |
