Desticker Bump-Block · Thomas Thomas Desticker

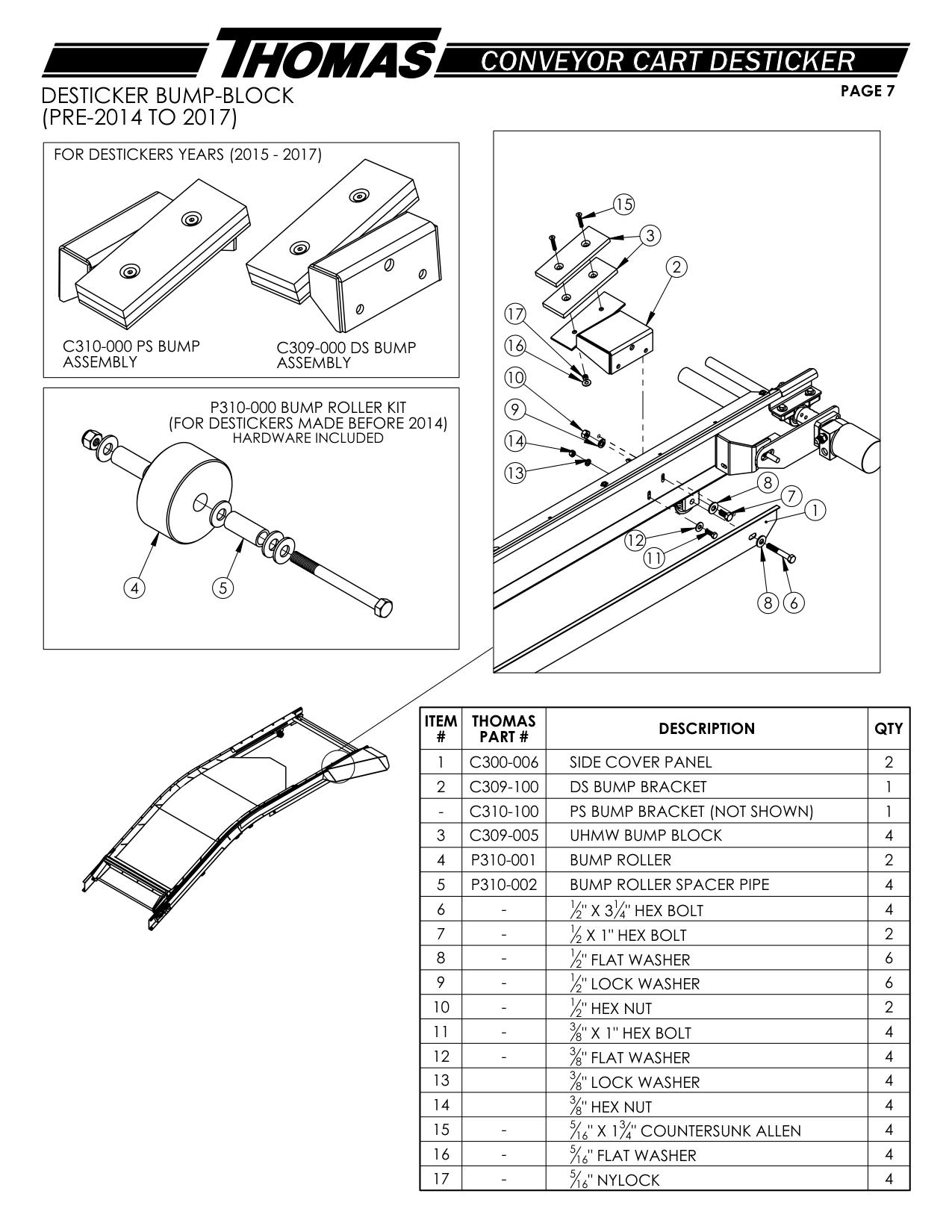

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | C310-100 | PS BUMP BRACKET (NOT SHOWN) | 1 |
| 1 | C300-006 | SIDE COVER PANEL | 2 |
| 2 | C309-100 | DS BUMP BRACKET | 1 |
| 3 | C309-005 | UHMW BUMP BLOCK | 4 |
| 4 | P310-001 | BUMP ROLLER | 2 |
| 5 | P310-002 | BUMP ROLLER SPACER PIPE | 4 |
