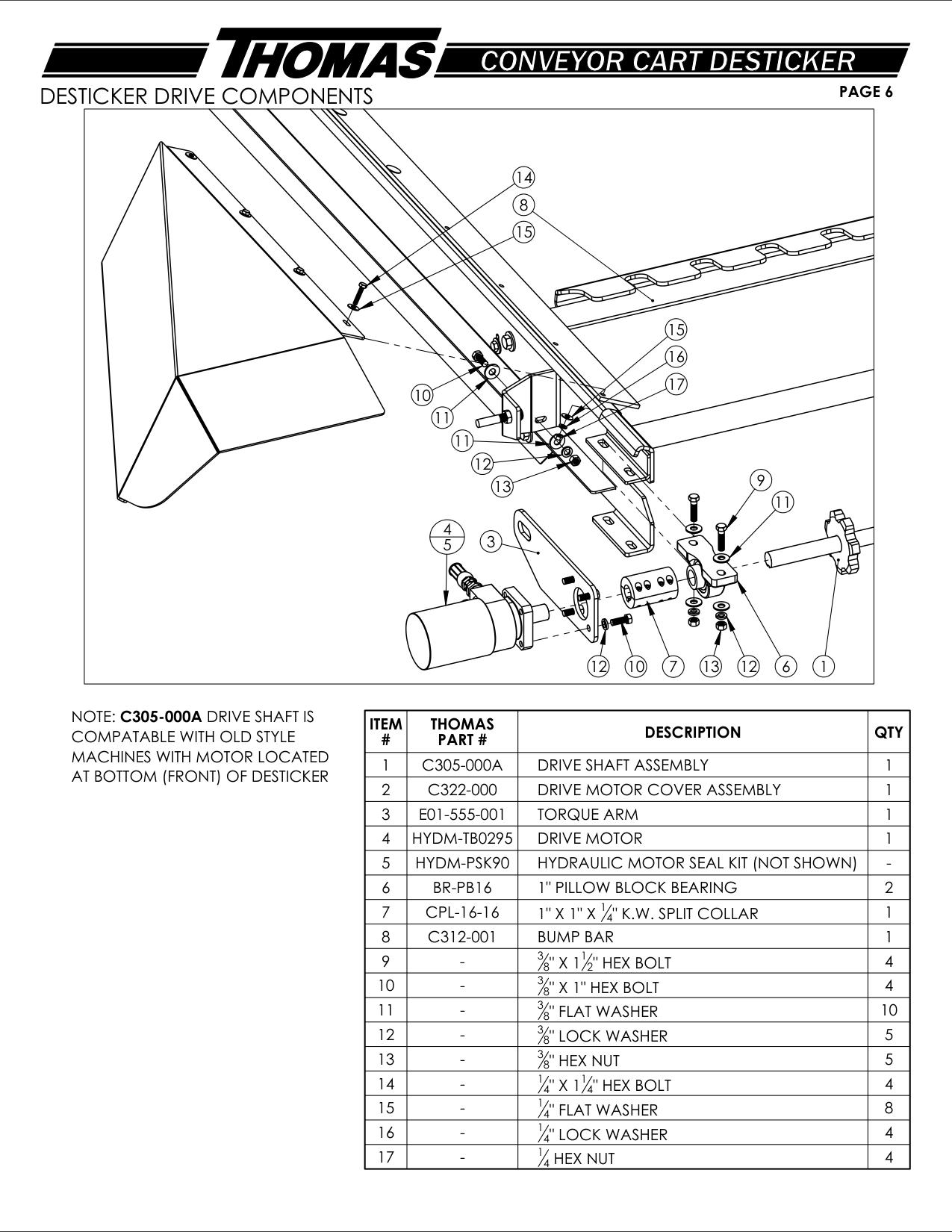

Desticker Drive Components · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C305-000A | DRIVE SHAFT ASSEMBLY | 1 |
| 2 | C322-000 | DRIVE MOTOR COVER ASSEMBLY | 1 |
| 3 | E01-555-001 | TORQUE ARM | 1 |
| 4 | HYDM-TB0295 | DRIVE MOTOR | 1 |
| 5 | HYDM-PSK90 | HYDRAULIC MOTOR SEAL KIT (NOT SHOWN) | |
| 6 | BR-PB16 | 1" PILLOW BLOCK BEARING | 2 |
| 7 | CPL-16-16 | 1" X 1" X 4" K.W. SPLIT COLLAR | 1 |
| 8 | C312-001 | BUMP BAR | 1 |
