Desticker Take-Up & Brush Assembly · Thomas Thomas Desticker

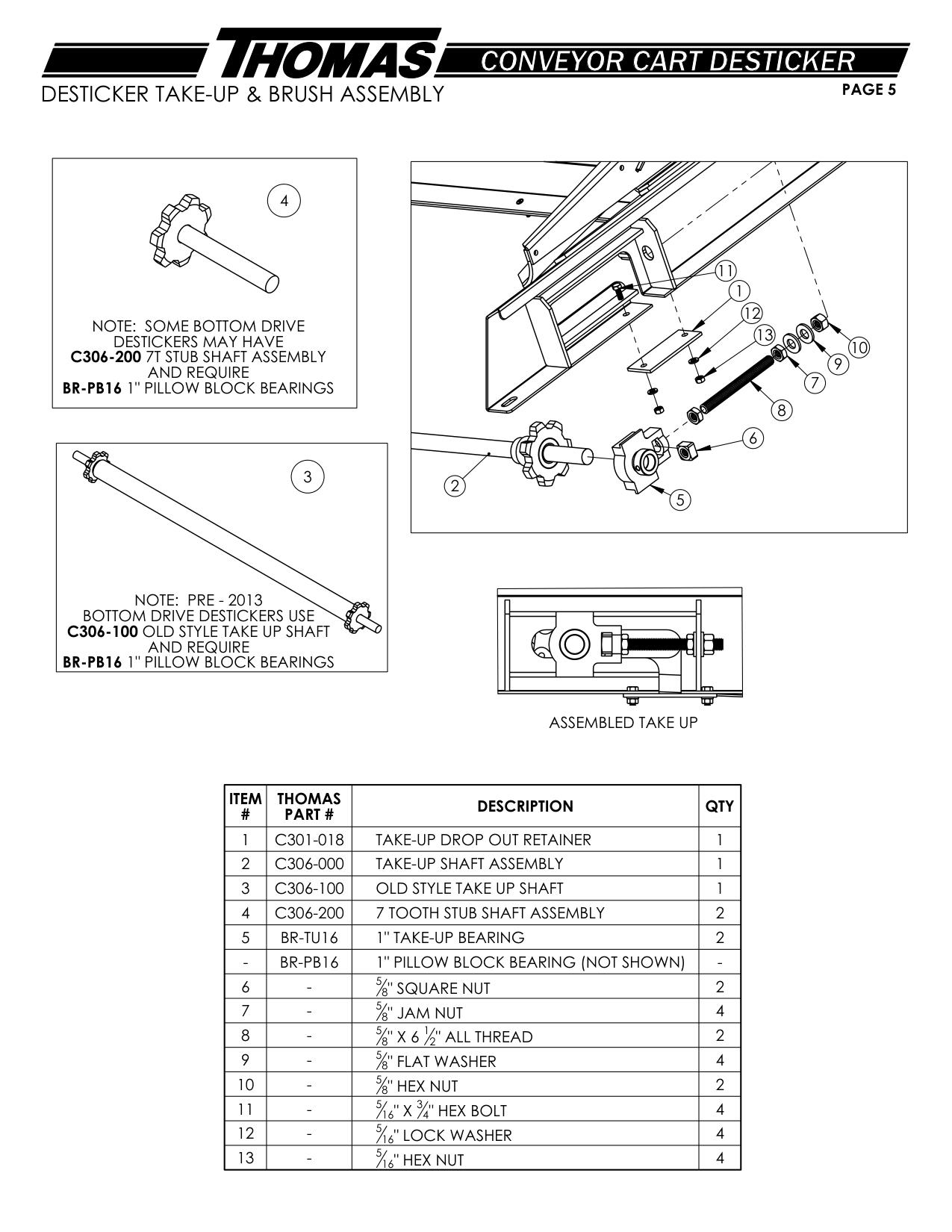

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | BR-PB16 | 1" PILLOW BLOCK BEARING (NOT SHOWN) | |
| 1 | C301-018 | TAKE-UP DROP OUT RETAINER | 1 |
| 2 | C306-000 | TAKE-UP SHAFT ASSEMBLY | 1 |
| 3 | C306-100 | OLD STYLE TAKE UP SHAFT | 1 |
| 4 | C306-200 | 7 TOOTH STUB SHAFT ASSEMBLY | 2 |
| 5 | BR-TU16 | 1" TAKE-UP BEARING | 2 |
