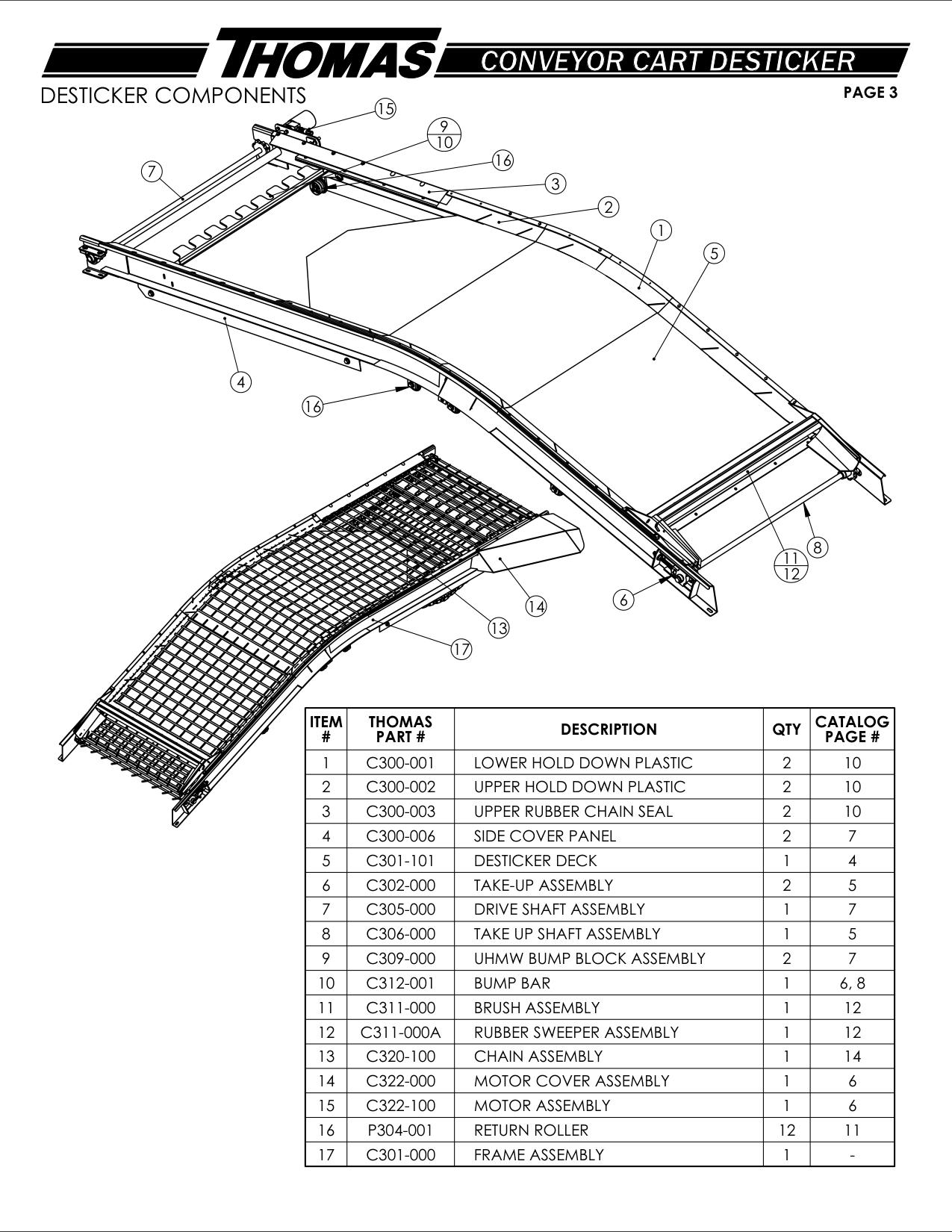

Desticker Components · Thomas Thomas Desticker
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C300-001 | LOWER HOLD DOWN PLASTIC | 2 |
| 2 | C300-002 | UPPER HOLD DOWN PLASTIC | 2 |
| 3 | C300-003 | UPPER RUBBER CHAIN SEAL | 2 |
| 4 | C300-006 | SIDE COVER PANEL | 2 |
| 5 | C301-101 | DESTICKER DECK | 1 |
| 6 | C302-000 | TAKE-UP ASSEMBLY | 2 |
| 7 | C305-000 | DRIVE SHAFT ASSEMBLY | 1 |
| 8 | C306-000 | TAKE UP SHAFT ASSEMBLY | 1 |
| 9 | C309-000 | UHMW BUMP BLOCK ASSEMBLY | 2 |
| 10 | C312-001 | BUMP BAR 1 6, | 8 |
| 11 | C311-000 | BRUSH ASSEMBLY | 1 |
| 12 | C311-000A | RUBBER SWEEPER ASSEMBLY | 1 |
| 13 | C320-100 | CHAIN ASSEMBLY | 1 |
| 14 | C322-000 | MOTOR COVER ASSEMBLY | 1 |
| 15 | C322-100 | MOTOR ASSEMBLY | 1 |
| 16 | P304-001 | RETURN ROLLER | 12 |
| 17 | C301-000 | FRAME ASSEMBLY | 1 |
