Extended Chute Option · Thomas Thomas Conveyor Cart

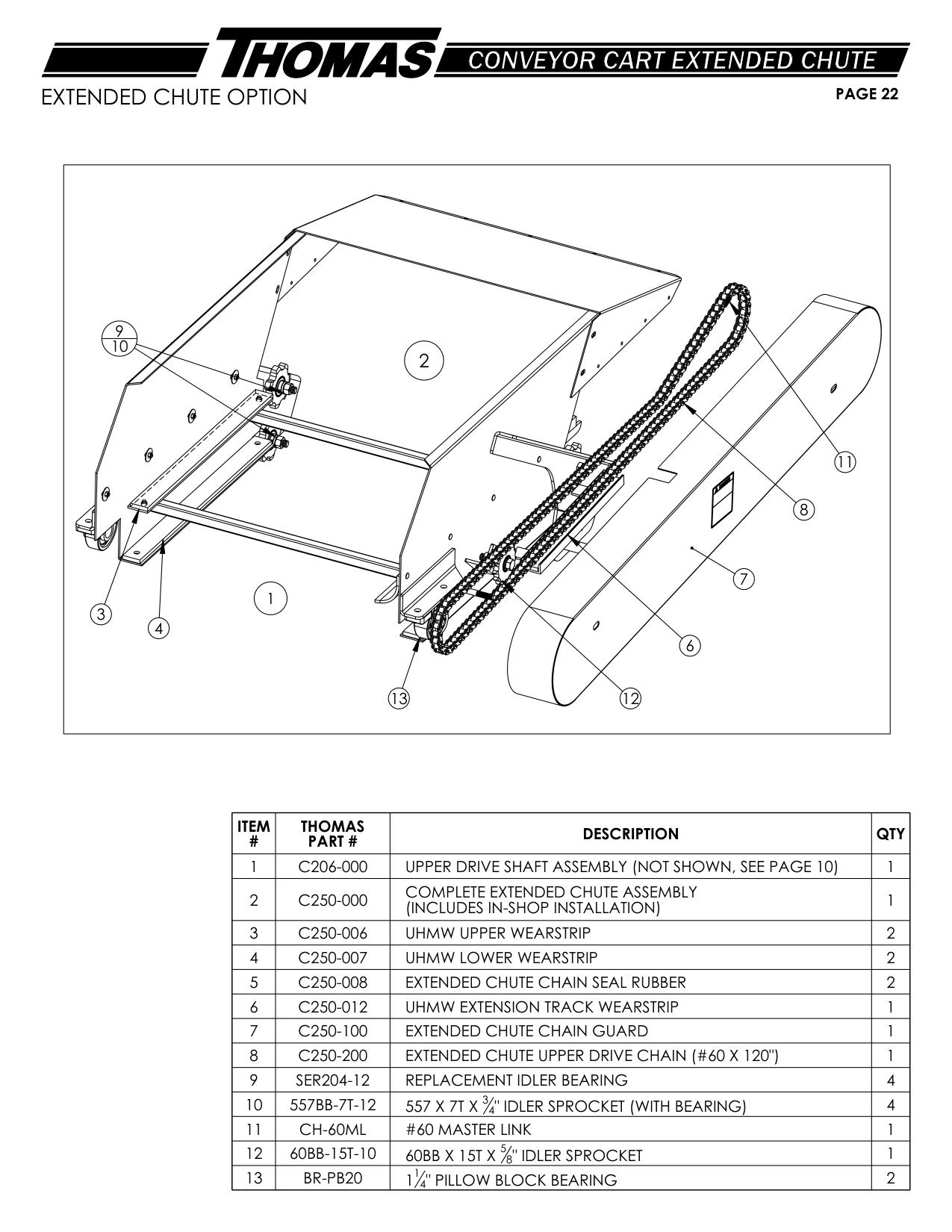

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C206-000 | UPPER DRIVE SHAFT ASSEMBLY (NOT SHOWN, SEE PAGE 10) | 1 |
| 3 | C250-006 | UHMW UPPER WEARSTRIP | 2 |
| 4 | C250-007 | UHMW LOWER WEARSTRIP | 2 |
| 5 | C250-008 | EXTENDED CHUTE CHAIN SEAL RUBBER | 2 |
| 6 | C250-012 | UHMW EXTENSION TRACK WEARSTRIP | 1 |
| 7 | C250-100 | EXTENDED CHUTE CHAIN GUARD | 1 |
| 8 | C250-200 | EXTENDED CHUTE UPPER DRIVE CHAIN (#60 X 120") | 1 |
| 9 | SER204-12 | REPLACEMENT IDLER BEARING | 4 |
| 10 | 557BB-7T-12 | 557 X 7T X 4" IDLER SPROCKET (WITH BEARING) | 4 |
| 11 | CH-60ML | #60 MASTER LINK | 1 |
| 12 | 60BB-15T-10 | 60BB X 15T X 8" IDLER SPROCKET | 1 |
| 13 | BR-PB20 | 1 4" PILLOW BLOCK BEARING | 2 |
