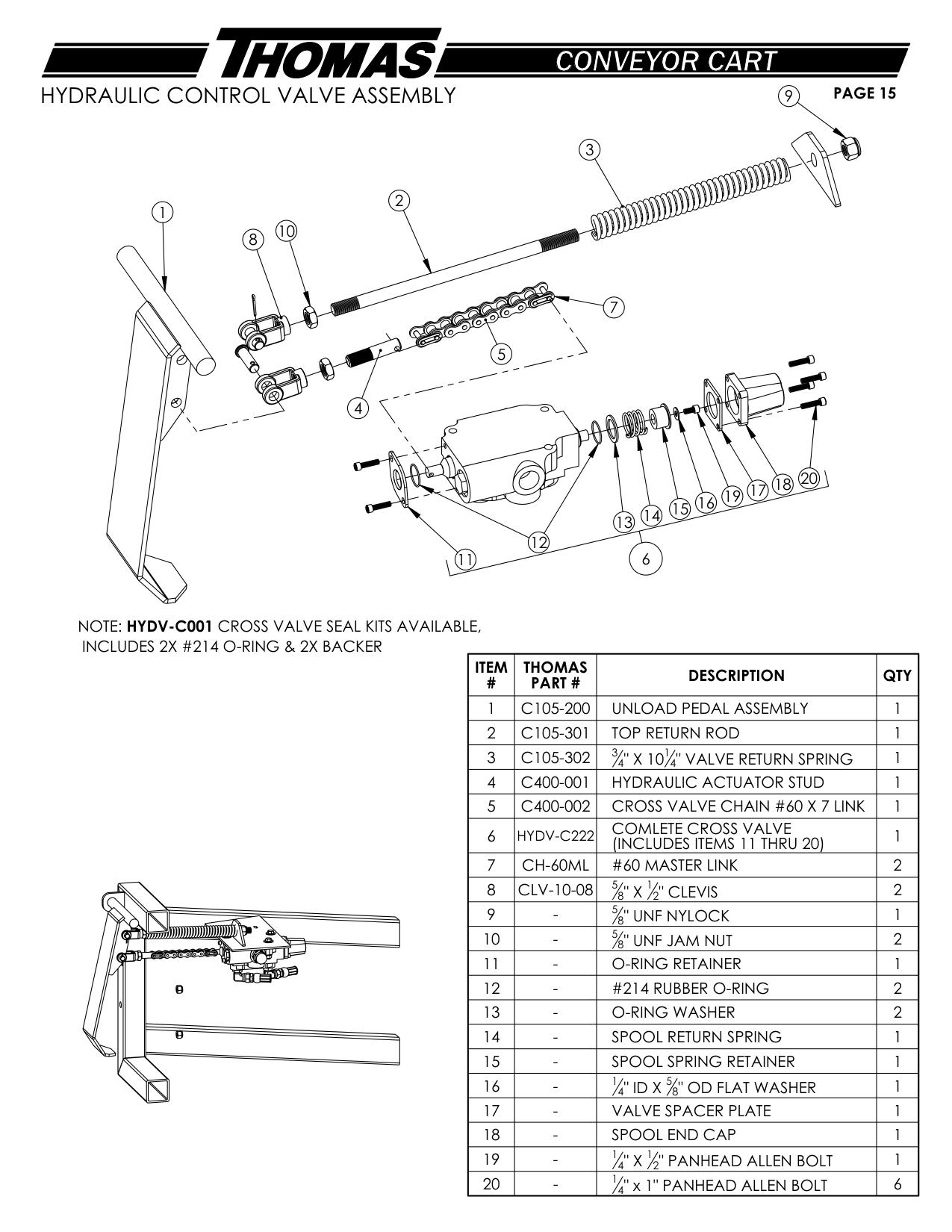

Hydraulic Control Valve Assembly · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C105-200 | UNLOAD PEDAL ASSEMBLY | 1 |
| 2 | C105-301 | TOP RETURN ROD | 1 |
| 3 | C105-302 | 4" X 10 4" VALVE RETURN SPRING | 1 |
| 4 | C400-001 | HYDRAULIC ACTUATOR STUD | 1 |
| 5 | C400-002 | CROSS VALVE CHAIN #60 X 7 LINK | 1 |
| 7 | CH-60ML | #60 MASTER LINK | 2 |
| 8 | CLV-10-08 | 8" X 2" CLEVIS | 2 |
