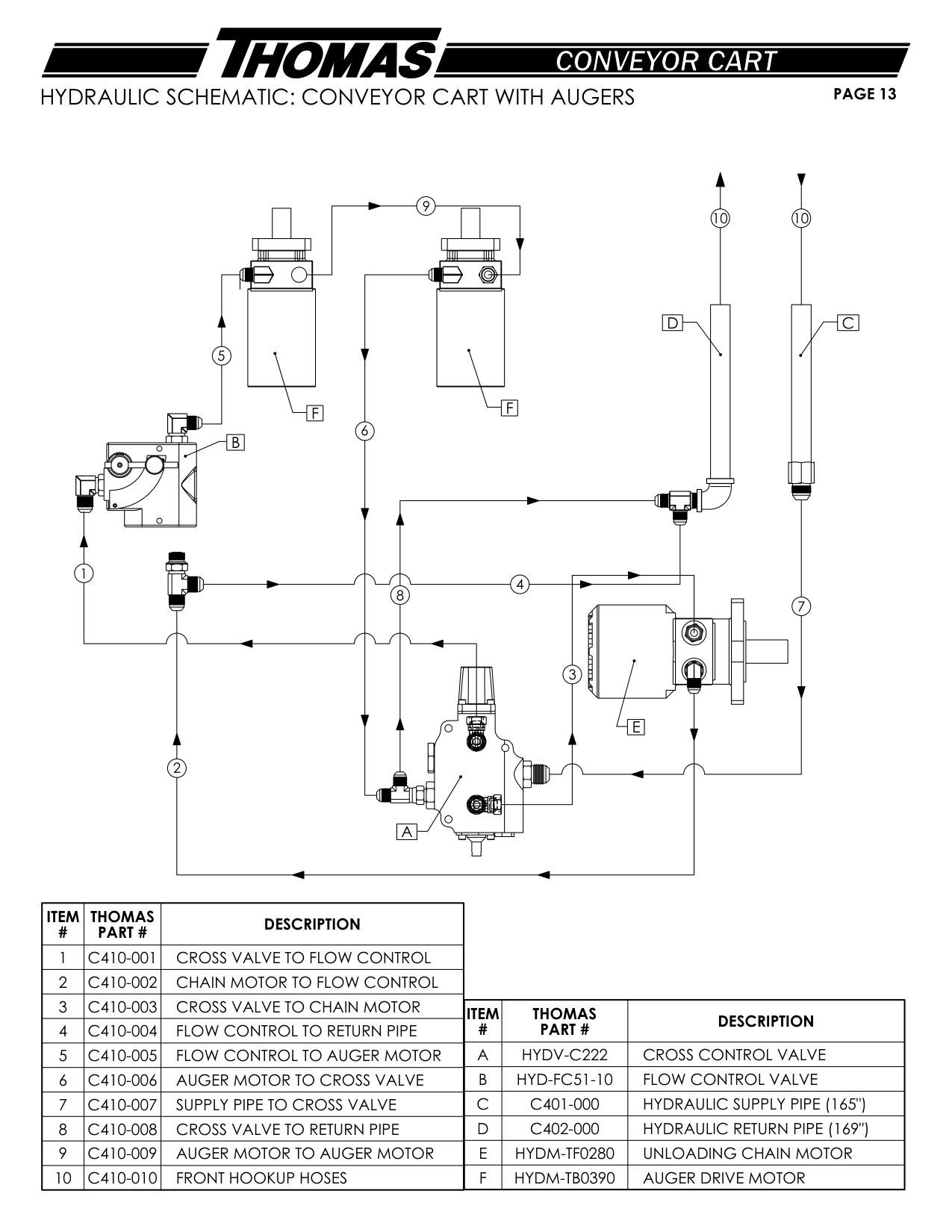

Hydraulic Schematic: Conveyor Cart With Augers · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C410-001 | CROSS VALVE TO FLOW CONTROL | |
| 2 | C410-002 | CHAIN MOTOR TO FLOW CONTROL | |
| 3 | C410-003 | CROSS VALVE TO CHAIN MOTOR ITEM THOMAS DESCRIPTION | |
| 4 | C410-004 | FLOW CONTROL TO RETURN PIPE # PART # | |
| 5 | C410-005 | FLOW CONTROL TO AUGER MOTOR A HYDV-C222 CROSS CONTROL VALVE | |
| 6 | C410-006 | AUGER MOTOR TO CROSS VALVE B HYD-FC51-10 FLOW CONTROL VALVE | |
| 7 | C410-007 | SUPPLY PIPE TO CROSS VALVE C C401-000 HYDRAULIC SUPPLY PIPE (165") | |
| 8 | C410-008 | CROSS VALVE TO RETURN PIPE D C402-000 HYDRAULIC RETURN PIPE (169") | |
| 9 | C410-009 | AUGER MOTOR TO AUGER MOTOR E HYDM-TF0280 UNLOADING CHAIN MOTOR | |
| 10 | C410-010 | FRONT HOOKUP HOSES F HYDM-TB0390 AUGER DRIVE MOTOR |
