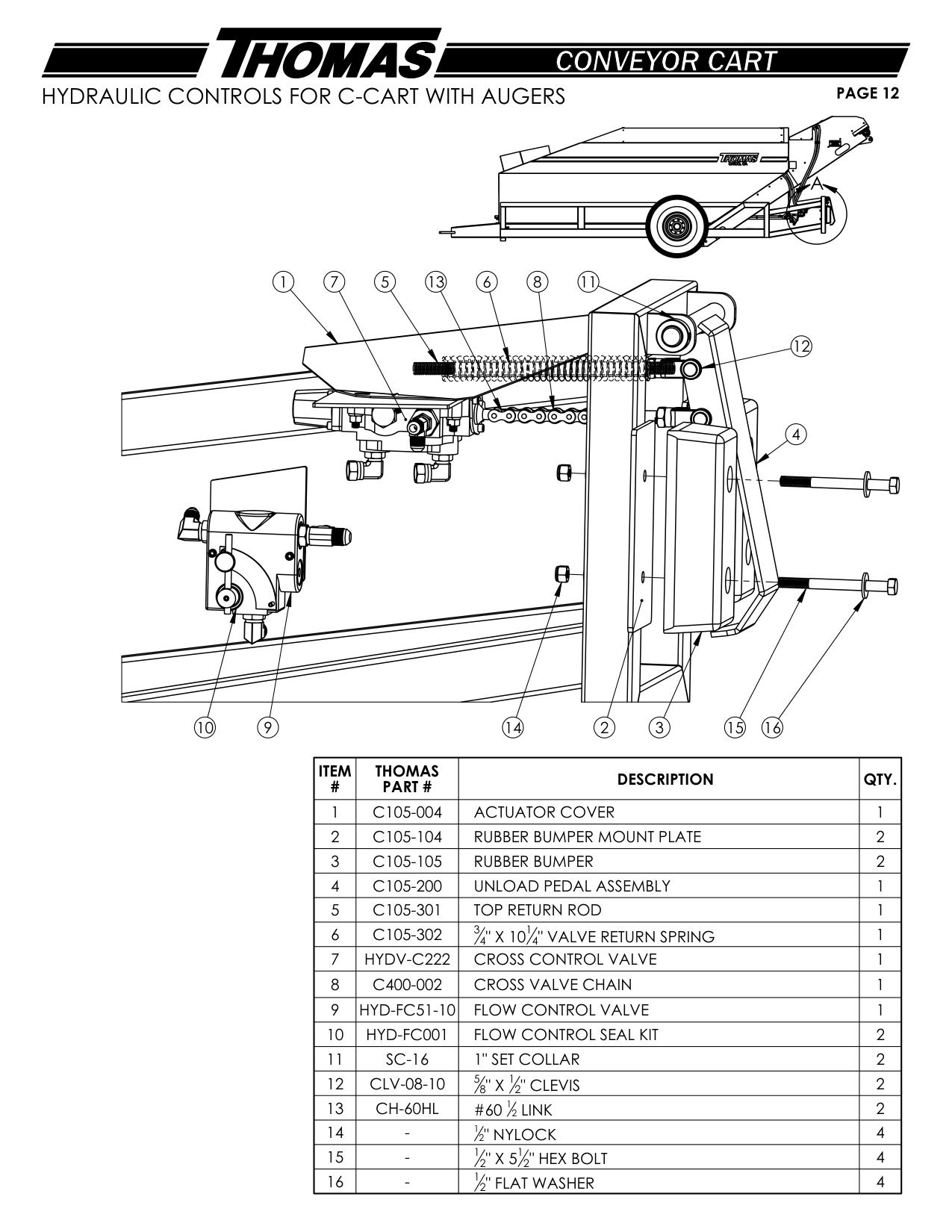

Hydraulic Controls For C-Cart With Augers · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C105-004 | ACTUATOR COVER | 1 |
| 2 | C105-104 | RUBBER BUMPER MOUNT PLATE | 2 |
| 3 | C105-105 | RUBBER BUMPER | 2 |
| 4 | C105-200 | UNLOAD PEDAL ASSEMBLY | 1 |
| 5 | C105-301 | TOP RETURN ROD | 1 |
| 6 | C105-302 | 4" X 10 4" VALVE RETURN SPRING | 1 |
| 7 | HYDV-C222 | CROSS CONTROL VALVE | 1 |
| 8 | C400-002 | CROSS VALVE CHAIN | 1 |
| 9 | HYD-FC51-10 | FLOW CONTROL VALVE | 1 |
| 10 | HYD-FC001 | FLOW CONTROL SEAL KIT | 2 |
| 11 | SC-16 | 1" SET COLLAR | 2 |
| 12 | CLV-08-10 | 8" X 2" CLEVIS | 2 |
| 13 | CH-60HL | #60 |
