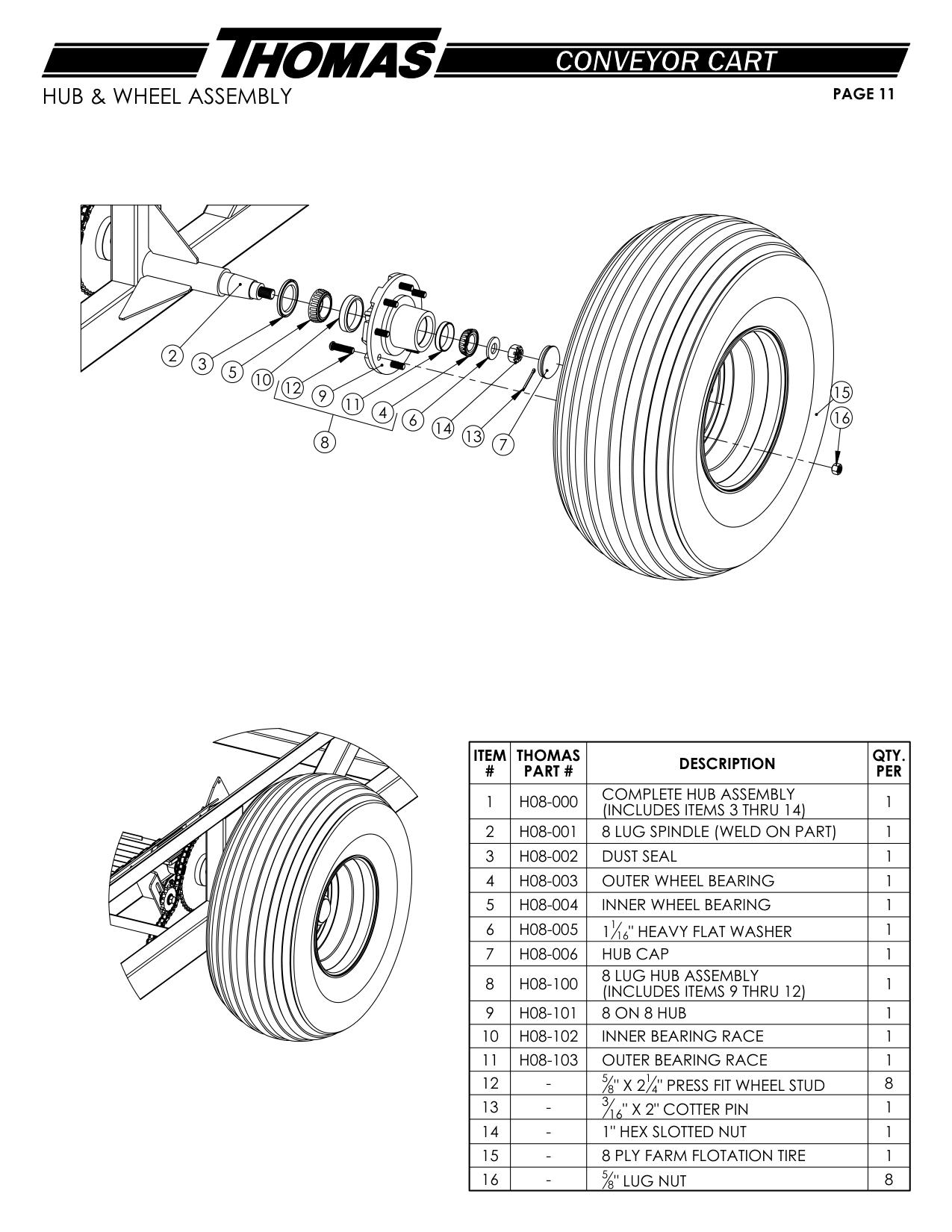

Hub & Wheel Assembly · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 2 | H08-001 | 8 LUG SPINDLE (WELD ON PART) | 1 |
| 3 | H08-002 | DUST SEAL | 1 |
| 4 | H08-003 | OUTER WHEEL BEARING | 1 |
| 5 | H08-004 | INNER WHEEL BEARING | 1 |
| 6 | H08-005 | 1 16" HEAVY FLAT WASHER | 1 |
| 7 | H08-006 | HUB CAP | 1 |
| 9 | H08-101 | 8 ON 8 HUB | 1 |
| 10 | H08-102 | INNER BEARING RACE | 1 |
| 11 | H08-103 | OUTER BEARING RACE | 1 |
