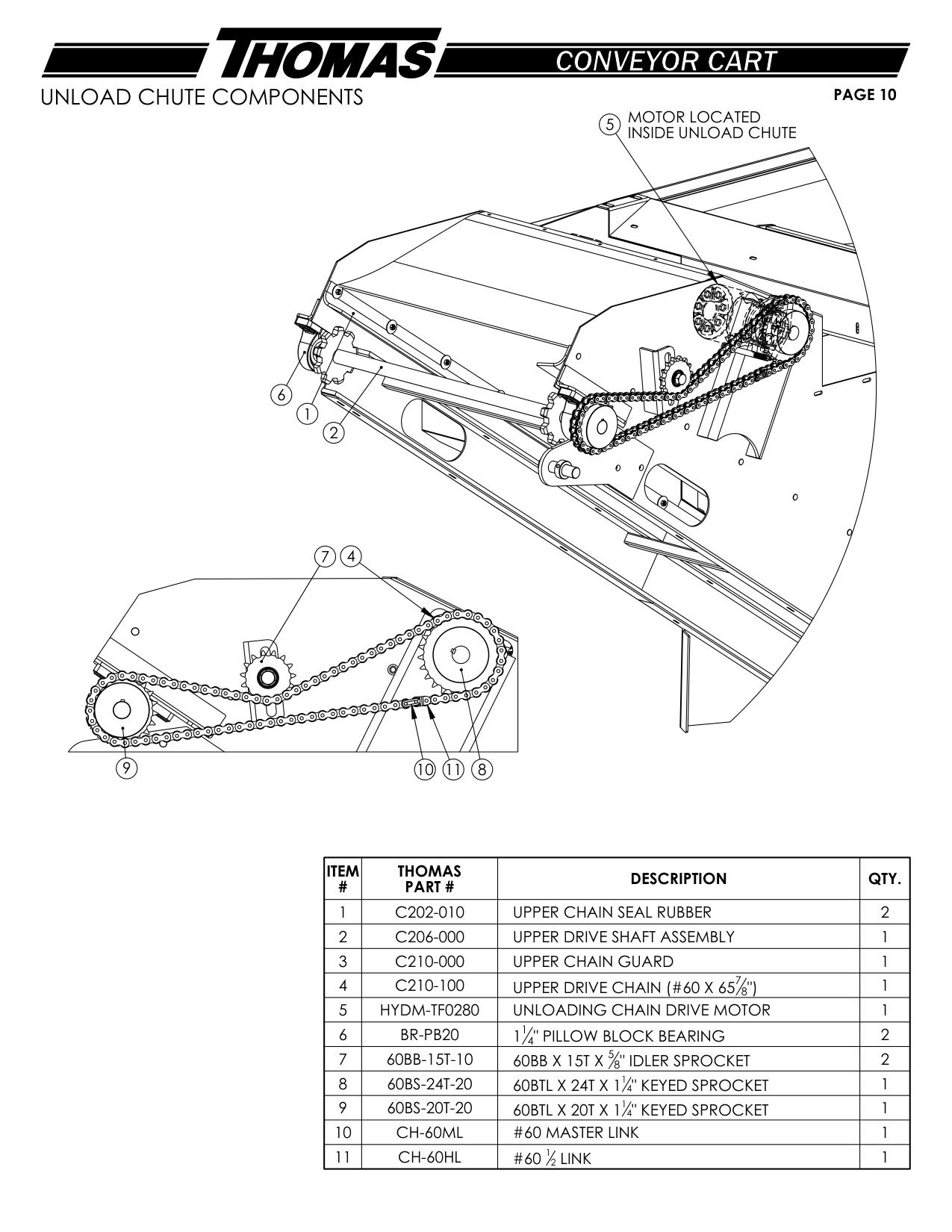

Unload Chute Components · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C202-010 | UPPER CHAIN SEAL RUBBER | 2 |
| 2 | C206-000 | UPPER DRIVE SHAFT ASSEMBLY | 1 |
| 3 | C210-000 | UPPER CHAIN GUARD | 1 |
| 4 | C210-100 | UPPER DRIVE CHAIN (#60 X 65 8") | 1 |
| 5 | HYDM-TF0280 | UNLOADING CHAIN DRIVE MOTOR | 1 |
| 6 | BR-PB20 | 1 4" PILLOW BLOCK BEARING | 2 |
| 7 | 60BB-15T-10 | 60BB X 15T X 8" IDLER SPROCKET | 2 |
| 10 | CH-60ML | #60 MASTER LINK | 1 |
| 11 | CH-60HL | #60 |
