Diagram · Thomas Thomas Conveyor Cart

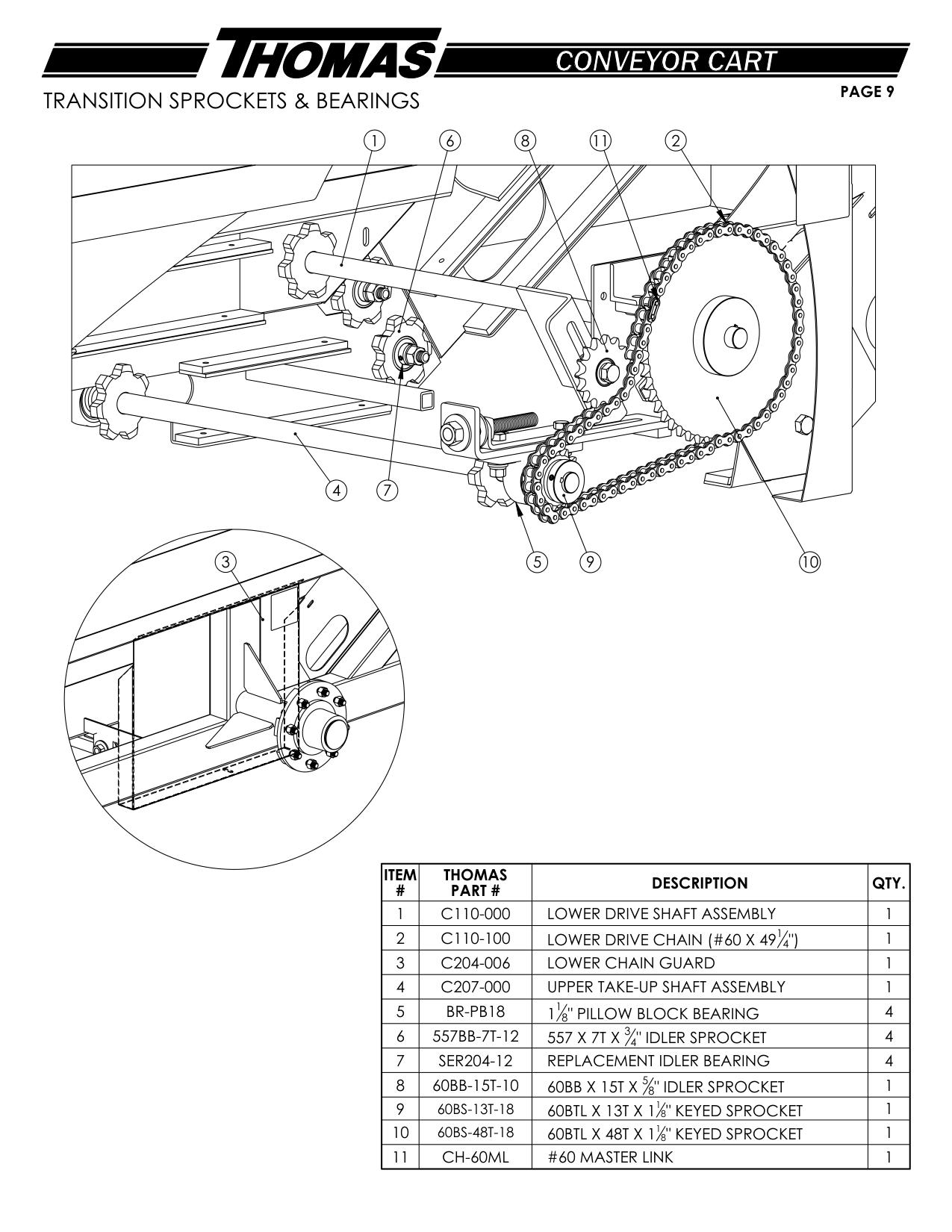

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C110-000 | LOWER DRIVE SHAFT ASSEMBLY | 1 |
| 2 | C110-100 | LOWER DRIVE CHAIN (#60 X 49 4") | 1 |
| 3 | C204-006 | LOWER CHAIN GUARD | 1 |
| 4 | C207-000 | UPPER TAKE-UP SHAFT ASSEMBLY | 1 |
| 5 | BR-PB18 | 1 8" PILLOW BLOCK BEARING | 4 |
| 6 | 557BB-7T-12 | 557 X 7T X 4" IDLER SPROCKET | 4 |
| 7 | SER204-12 | REPLACEMENT IDLER BEARING | 4 |
| 8 | 60BB-15T-10 | 60BB X 15T X 8" IDLER SPROCKET | 1 |
| 11 | CH-60ML | #60 MASTER LINK | 1 |
