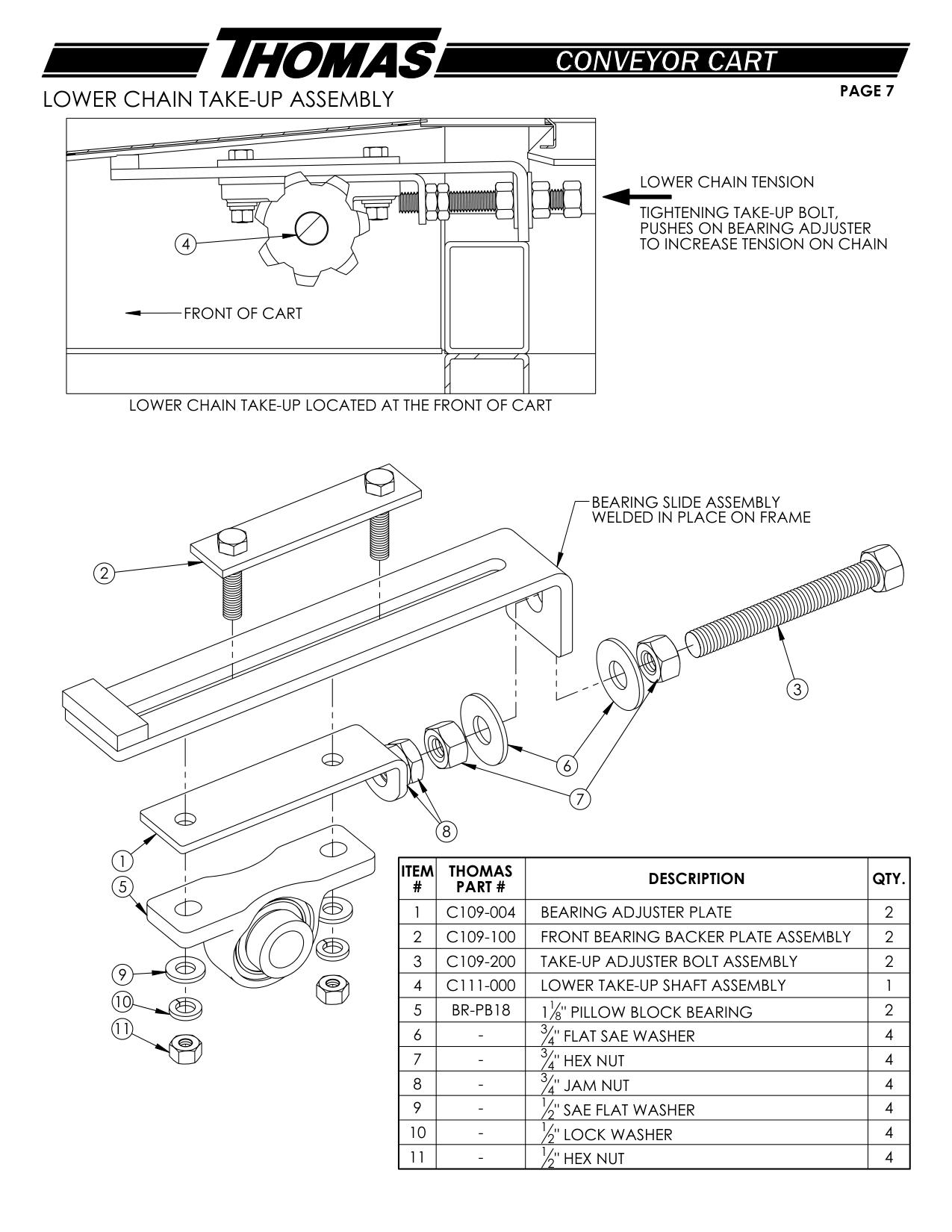

Diagram · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C109-004 | BEARING ADJUSTER PLATE | 2 |
| 2 | C109-100 | FRONT BEARING BACKER PLATE ASSEMBLY | 2 |
| 3 | C109-200 | TAKE-UP ADJUSTER BOLT ASSEMBLY | 2 |
| 4 | C111-000 | LOWER TAKE-UP SHAFT ASSEMBLY | 1 |
| 5 | BR-PB18 | 1 8" PILLOW BLOCK BEARING | 2 |
