15 - 4" Flat Washer · Thomas Thomas Conveyor Cart

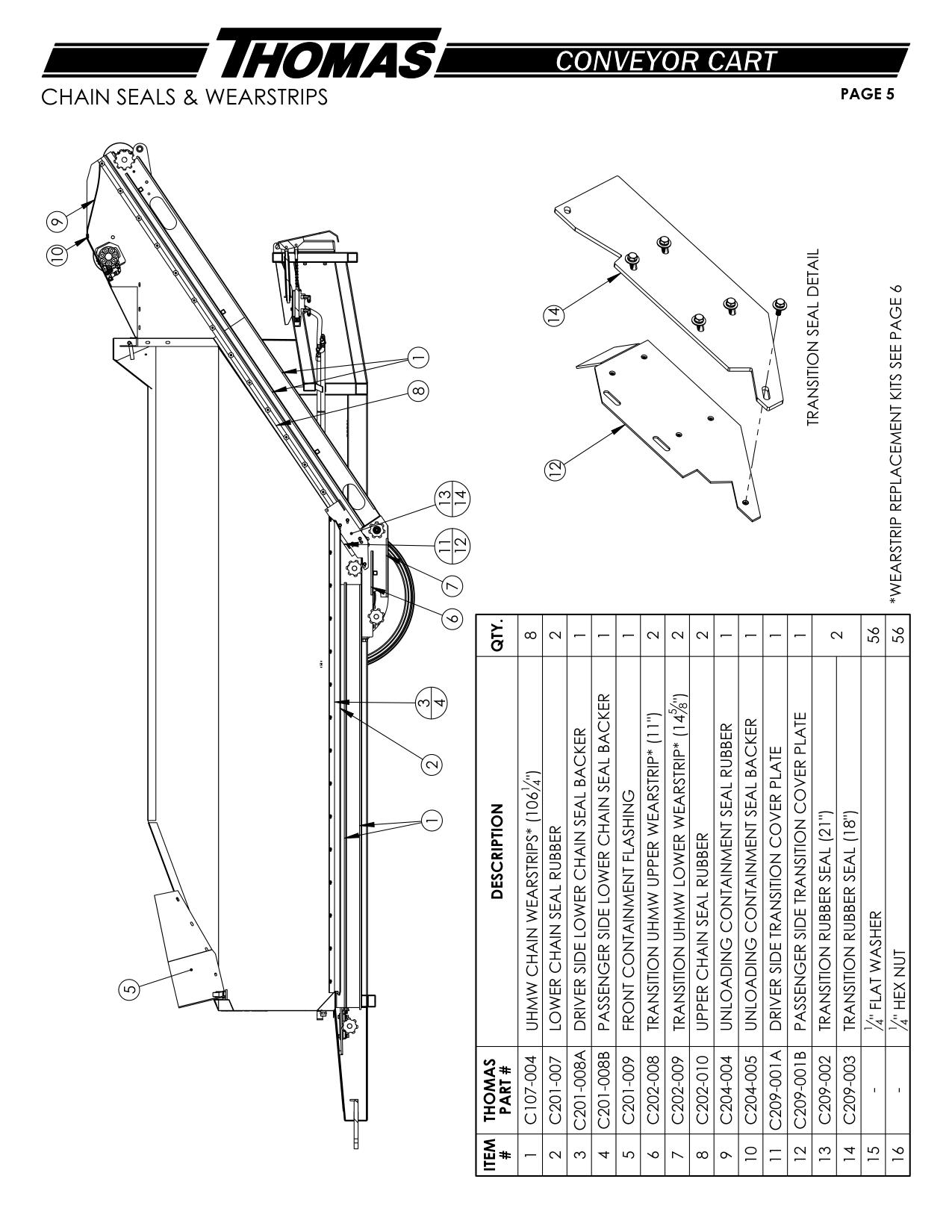

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C107-004 | UHMW CHAIN WEARSTRIPS* (106 4") | 8 |
| 2 | C201-007 | LOWER CHAIN SEAL RUBBER 2 | 12 |
| 3 | C201-008A | DRIVER SIDE LOWER CHAIN SEAL BACKER | 1 |
| 4 | C201-008B | PASSENGER SIDE LOWER CHAIN SEAL BACKER | 1 |
| 5 | C201-009 | FRONT CONTAINMENT FLASHING | 1 |
| 6 | C202-008 | TRANSITION UHMW UPPER WEARSTRIP* (11") | 2 |
| 7 | C202-009 | TRANSITION UHMW LOWER WEARSTRIP* (14 8") | 2 |
| 8 | C202-010 | UPPER CHAIN SEAL RUBBER | 2 |
| 9 | C204-004 | UNLOADING CONTAINMENT SEAL RUBBER | 1 |
| 10 | C204-005 | UNLOADING CONTAINMENT SEAL BACKER | 1 |
| 11 | C209-001A | DRIVER SIDE TRANSITION COVER PLATE | 1 |
| 12 | C209-001B | PASSENGER SIDE TRANSITION COVER PLATE | 1 |
| 13 | C209-002 | TRANSITION RUBBER SEAL (21") | |
| 14 | C209-003 | TRANSITION RUBBER SEAL (18") |
