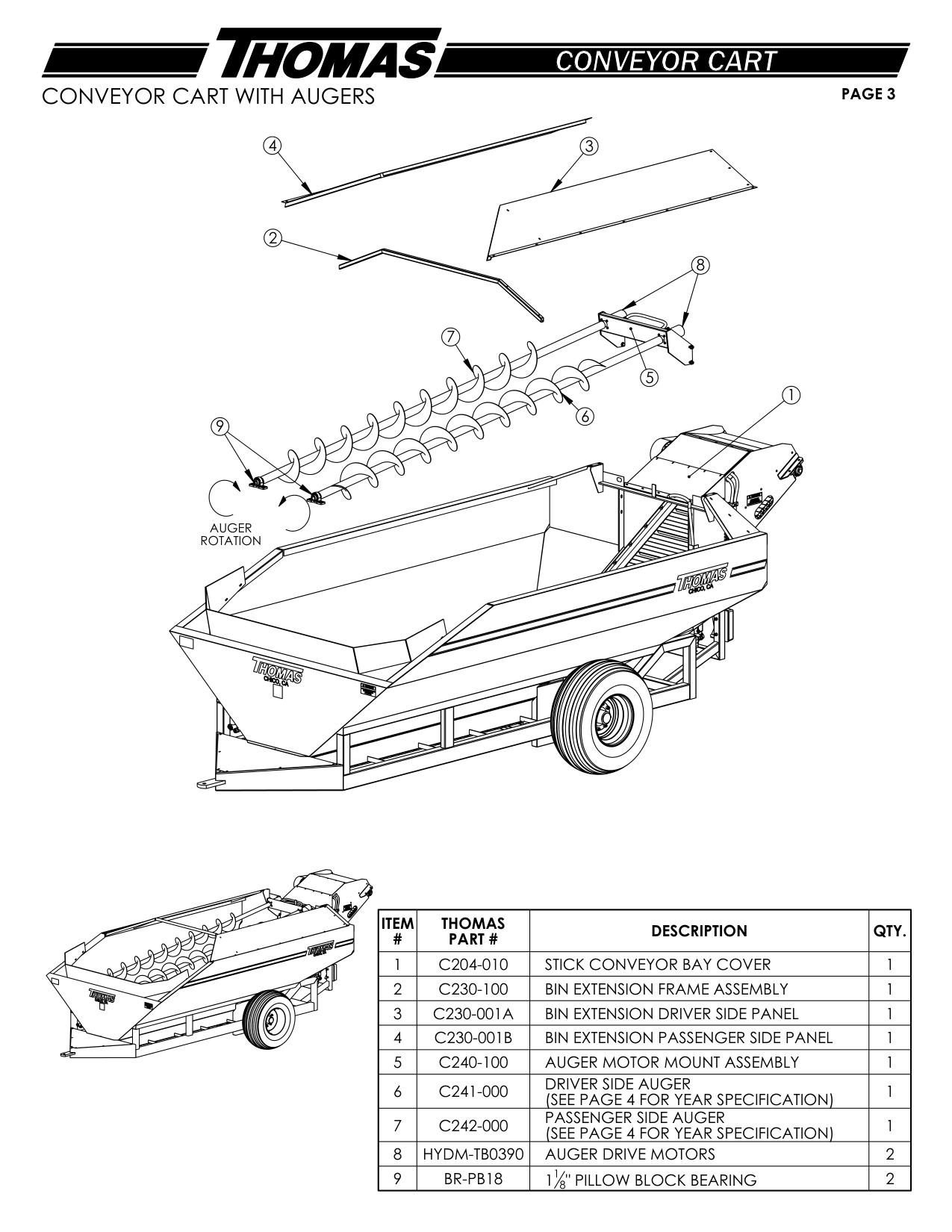

Conveyor Cart With Augers · Thomas Thomas Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C204-010 | STICK CONVEYOR BAY COVER | 1 |
| 2 | C230-100 | BIN EXTENSION FRAME ASSEMBLY | 1 |
| 3 | C230-001A | BIN EXTENSION DRIVER SIDE PANEL | 1 |
| 4 | C230-001B | BIN EXTENSION PASSENGER SIDE PANEL | 1 |
| 5 | C240-100 | AUGER MOTOR MOUNT ASSEMBLY | 1 |
| 8 | HYDM-TB0390 | AUGER DRIVE MOTORS | 2 |
| 9 | BR-PB18 | 1 8" PILLOW BLOCK BEARING | 2 |
