8 B510-403 Frame To Front Axle Brake Hose · Thomas Thomas Nut Bankout (2023)

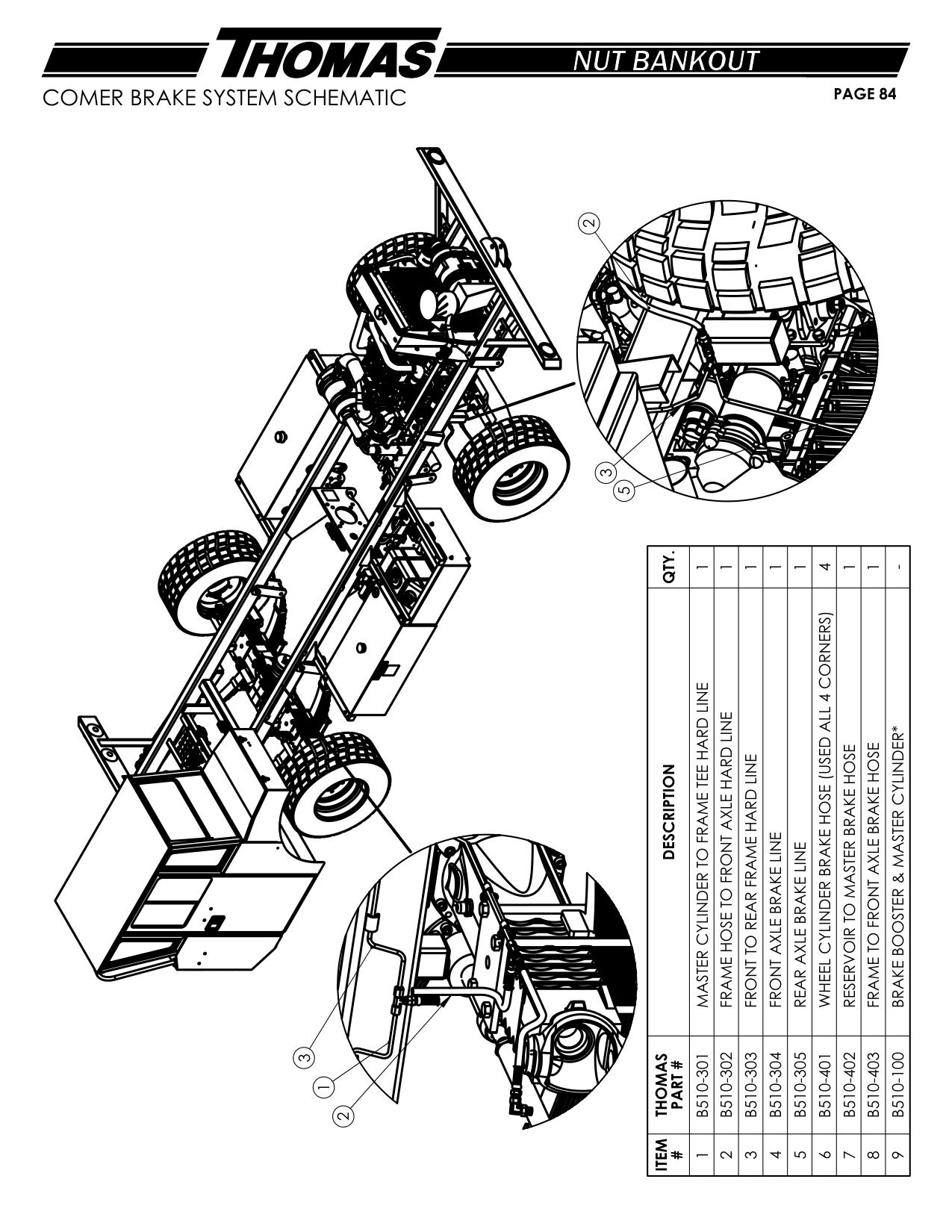

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B510-301 | MASTER CYLINDER TO FRAME TEE HARD LINE | 1 |
| 2 | B510-302 | FRAME HOSE TO FRONT AXLE HARD LINE | 1 |
| 3 | B510-303 | FRONT TO REAR FRAME HARD LINE | 1 |
| 4 | B510-304 | FRONT AXLE BRAKE LINE | 1 |
| 5 | B510-305 | REAR AXLE BRAKE LINE | 1 |
| 6 | B510-401 | WHEEL CYLINDER BRAKE HOSE (USED ALL 4 CORNERS) | 4 |
| 7 | B510-402 | RESERVOIR TO MASTER BRAKE HOSE | 1 |
| 8 | B510-403 | FRAME TO FRONT AXLE BRAKE HOSE 1 PAGE | 84 |
| 9 | B510-100 | BRAKE BOOSTER & MASTER CYLINDER* |
