37 B560-039 Orbirtol To Left Turn Hose · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕

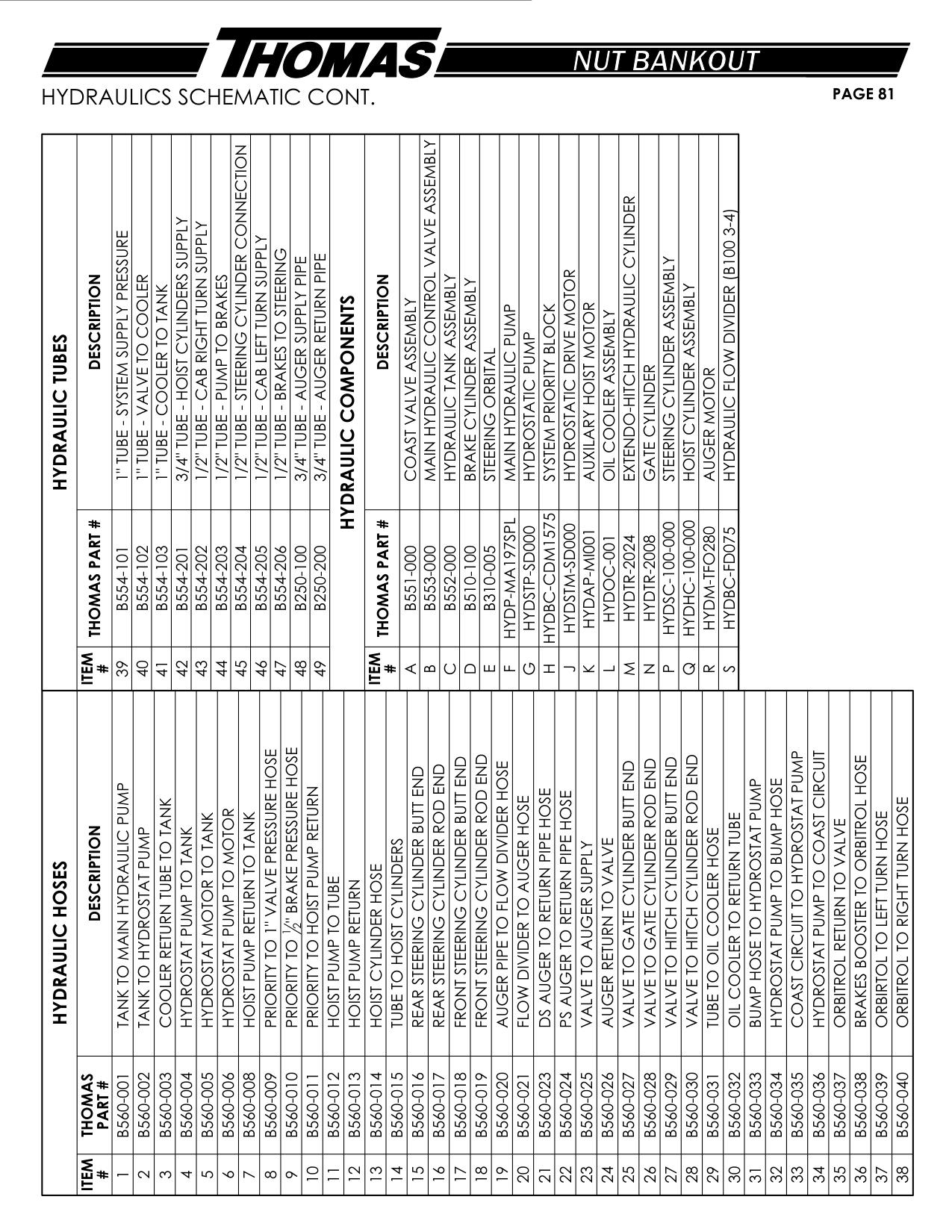

| # | Part number | Description | Qty |
|---|---|---|---|
| A | B551-000 | COAST VALVE ASSEMBLY | |
| B | B553-000 | MAIN HYDRAULIC CONTROL VALVE ASSEMBLY | |
| C | B552-000 | HYDRAULIC TANK ASSEMBLY | |
| D | B510-100 | BRAKE CYLINDER ASSEMBLY | |
| E | B310-005 | STEERING ORBITAL | |
| 1 | B560-001 | TANK TO MAIN HYDRAULIC PUMP 39 B554-101 1" TUBE - SYSTEM SUPPLY PRESSURE | |
| 2 | B560-002 | TANK TO HYDROSTAT PUMP 40 B554-102 1" TUBE - VALVE TO COOLER | |
| 3 | B560-003 | COOLER RETURN TUBE TO TANK 41 B554-103 1" TUBE - COOLER TO TANK | |
| 4 | B560-004 | HYDROSTAT PUMP TO TANK 42 B554-201 3/4" TUBE - HOIST CYLINDERS SUPPLY | |
| 5 | B560-005 | HYDROSTAT MOTOR TO TANK 43 B554-202 1/2" TUBE - CAB RIGHT TURN SUPPLY | |
| 6 | B560-006 | HYDROSTAT PUMP TO MOTOR 44 B554-203 1/2" TUBE - PUMP TO BRAKES | |
| 7 | B560-008 | HOIST PUMP RETURN TO TANK | |
| 8 | B560-009 | PRIORITY TO 1" VALVE PRESSURE HOSE | |
| 9 | B560-010 | PRIORITY TO 12" BRAKE PRESSURE HOSE | |
| 10 | B560-011 | PRIORITY TO HOIST PUMP RETURN 49 B250-200 3/4" TUBE - AUGER RETURN PIPE | |
| 11 | B560-012 | HOIST PUMP TO TUBE | |
| 12 | B560-013 | HOIST PUMP RETURN HYDRAULIC COMPONENTS | |
| 13 | B560-014 | HOIST CYLINDER HOSE ITEM THOMAS PART # DESCRIPTION | |
| 14 | B560-015 | TUBE TO HOIST CYLINDERS # | |
| 15 | B560-016 | REAR STEERING CYLINDER BUTT END | |
| 16 | B560-017 | REAR STEERING CYLINDER ROD END | |
| 17 | B560-018 | FRONT STEERING CYLINDER BUTT END | |
| 18 | B560-019 | FRONT STEERING CYLINDER ROD END | |
| 19 | B560-020 | AUGER PIPE TO FLOW DIVIDER HOSE F HYDP-MA197SPL MAIN HYDRAULIC PUMP | |
| 20 | B560-021 | FLOW DIVIDER TO AUGER HOSE G HYDSTP-SD000 HYDROSTATIC PUMP | |
| 21 | B560-023 | DS AUGER TO RETURN PIPE HOSE H HYDBC-CDM1575 SYSTEM PRIORITY BLOCK | |
| 22 | B560-024 | PS AUGER TO RETURN PIPE HOSE J HYDSTM-SD000 HYDROSTATIC DRIVE MOTOR | |
| 23 | B560-025 | VALVE TO AUGER SUPPLY K HYDAP-MI001 AUXILARY HOIST MOTOR | |
| 24 | B560-026 | AUGER RETURN TO VALVE L HYDOC-001 OIL COOLER ASSEMBLY | |
| 25 | B560-027 | VALVE TO GATE CYLINDER BUTT END M HYDTR-2024 EXTENDO-HITCH HYDRAULIC CYLINDER | |
| 26 | B560-028 | VALVE TO GATE CYLINDER ROD END N HYDTR-2008 GATE CYLINDER | |
| 27 | B560-029 | VALVE TO HITCH CYLINDER BUTT END P HYDSC-100-000 STEERING CYLINDER ASSEMBLY | |
| 28 | B560-030 | VALVE TO HITCH CYLINDER ROD END Q HYDHC-100-000 HOIST CYLINDER ASSEMBLY | |
| 29 | B560-031 | TUBE TO OIL COOLER HOSE R HYDM-TFO280 AUGER MOTOR | |
| 30 | B560-032 | OIL COOLER TO RETURN TUBE S HYDBC-FD075 HYDRAULIC FLOW DIVIDER (B100 3-4) | |
| 31 | B560-033 | BUMP HOSE TO HYDROSTAT PUMP | |
| 32 | B560-034 | HYDROSTAT PUMP TO BUMP HOSE | |
| 33 | B560-035 | COAST CIRCUIT TO HYDROSTAT PUMP | |
| 34 | B560-036 | HYDROSTAT PUMP TO COAST CIRCUIT | |
| 35 | B560-037 | ORBITROL RETURN TO VALVE | |
| 36 | B560-038 | BRAKES BOOSTER TO ORBITROL HOSE | |
| 37 | B560-039 | ORBIRTOL TO LEFT TURN HOSE PAGE | 81 |
| 38 | B560-040 | ORBITROL TO RIGHT TURN HOSE | |
| 45 | B554-204 | 1/2" TUBE - STEERING CYLINDER CONNECTION | |
| 46 | B554-205 | 1/2" TUBE - CAB LEFT TURN SUPPLY | |
| 47 | B554-206 | 1/2" TUBE - BRAKES TO STEERING | |
| 48 | B250-100 | 3/4" TUBE - AUGER SUPPLY PIPE |
