Steering Cylinder Assembly · Thomas Thomas Nut Bankout (2023)

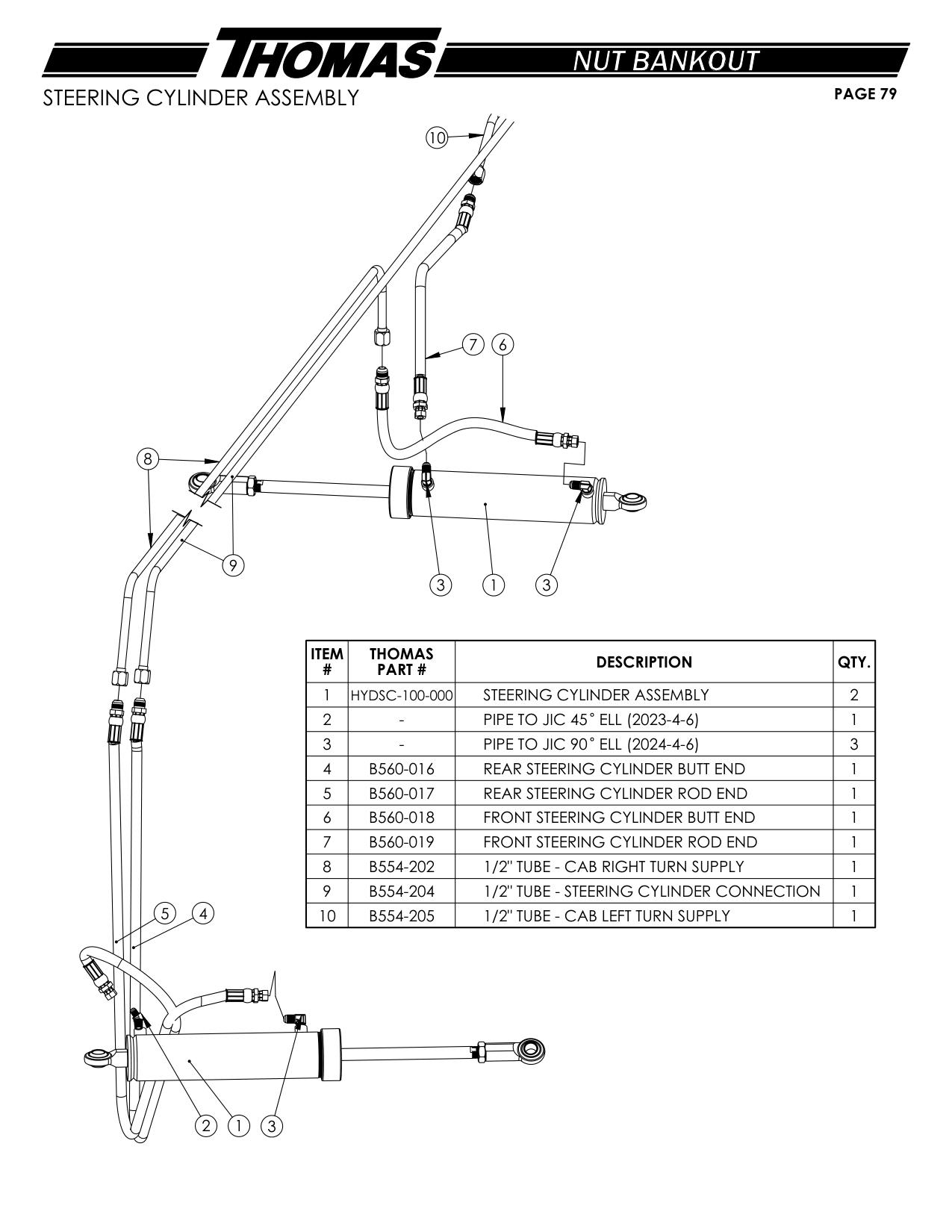

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | HYDSC-100-000 | STEERING CYLINDER ASSEMBLY | 2 |
| 4 | B560-016 | REAR STEERING CYLINDER BUTT END | 1 |
| 5 | B560-017 | REAR STEERING CYLINDER ROD END | 1 |
| 6 | B560-018 | FRONT STEERING CYLINDER BUTT END | 1 |
| 7 | B560-019 | FRONT STEERING CYLINDER ROD END | 1 |
| 8 | B554-202 | 1/2" TUBE - CAB RIGHT TURN SUPPLY | 1 |
| 9 | B554-204 | 1/2" TUBE - STEERING CYLINDER CONNECTION | 1 |
