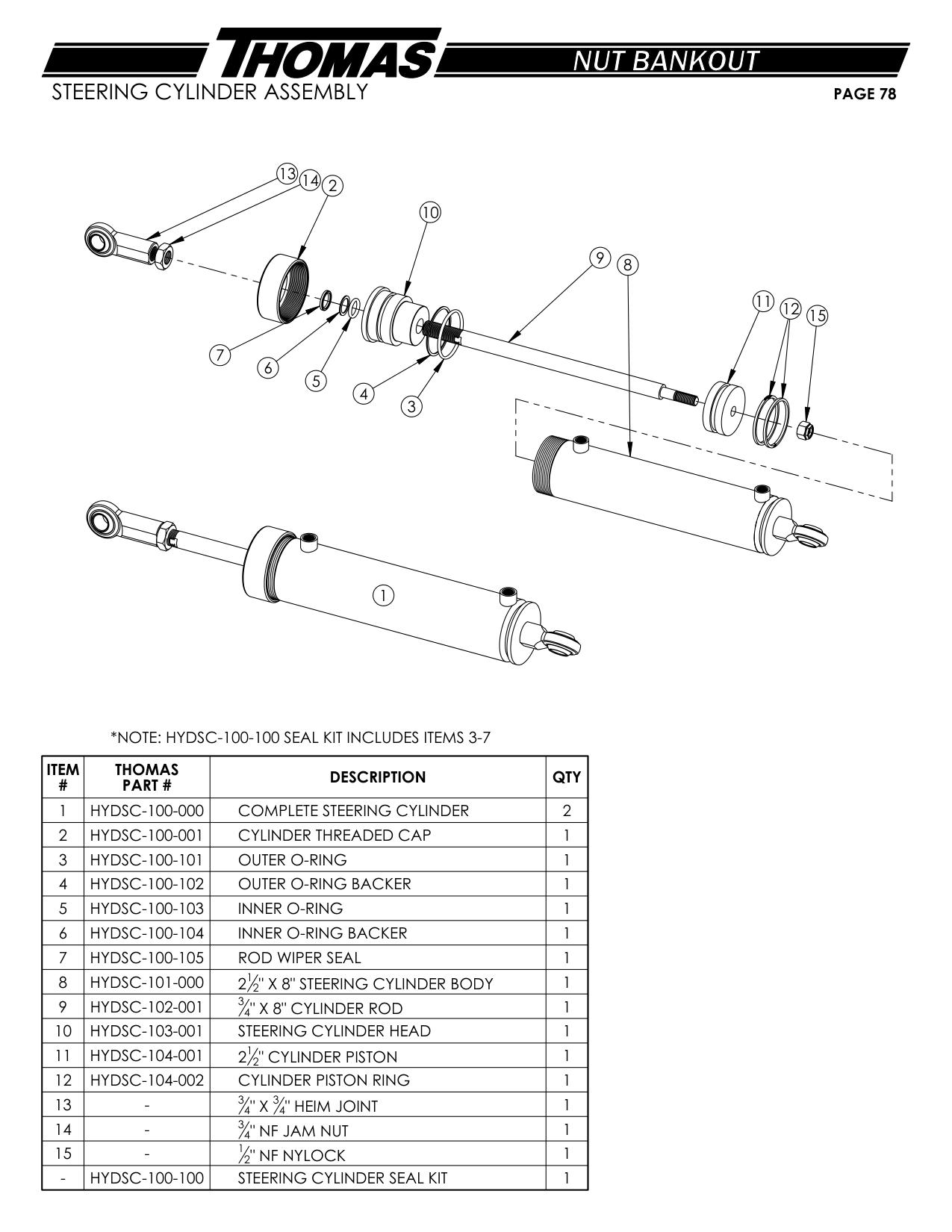

Steering Cylinder Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | HYDSC-100-100 | STEERING CYLINDER SEAL KIT | 1 |
| 1 | HYDSC-100-000 | COMPLETE STEERING CYLINDER | 2 |
| 2 | HYDSC-100-001 | CYLINDER THREADED CAP | 1 |
| 3 | HYDSC-100-101 | OUTER O-RING | 1 |
| 4 | HYDSC-100-102 | OUTER O-RING BACKER | 1 |
| 5 | HYDSC-100-103 | INNER O-RING | 1 |
| 6 | HYDSC-100-104 | INNER O-RING BACKER | 1 |
| 7 | HYDSC-100-105 | ROD WIPER SEAL | 1 |
| 8 | HYDSC-101-000 | 2 2" X 8" STEERING CYLINDER BODY | 1 |
| 9 | HYDSC-102-001 | 4" X 8" CYLINDER ROD | 1 |
| 10 | HYDSC-103-001 | STEERING CYLINDER HEAD | 1 |
| 11 | HYDSC-104-001 | 2 2" CYLINDER PISTON | 1 |
| 12 | HYDSC-104-002 | CYLINDER PISTON RING | 1 |
