Tie Rods And Drag Links · Thomas Thomas Nut Bankout (2023)

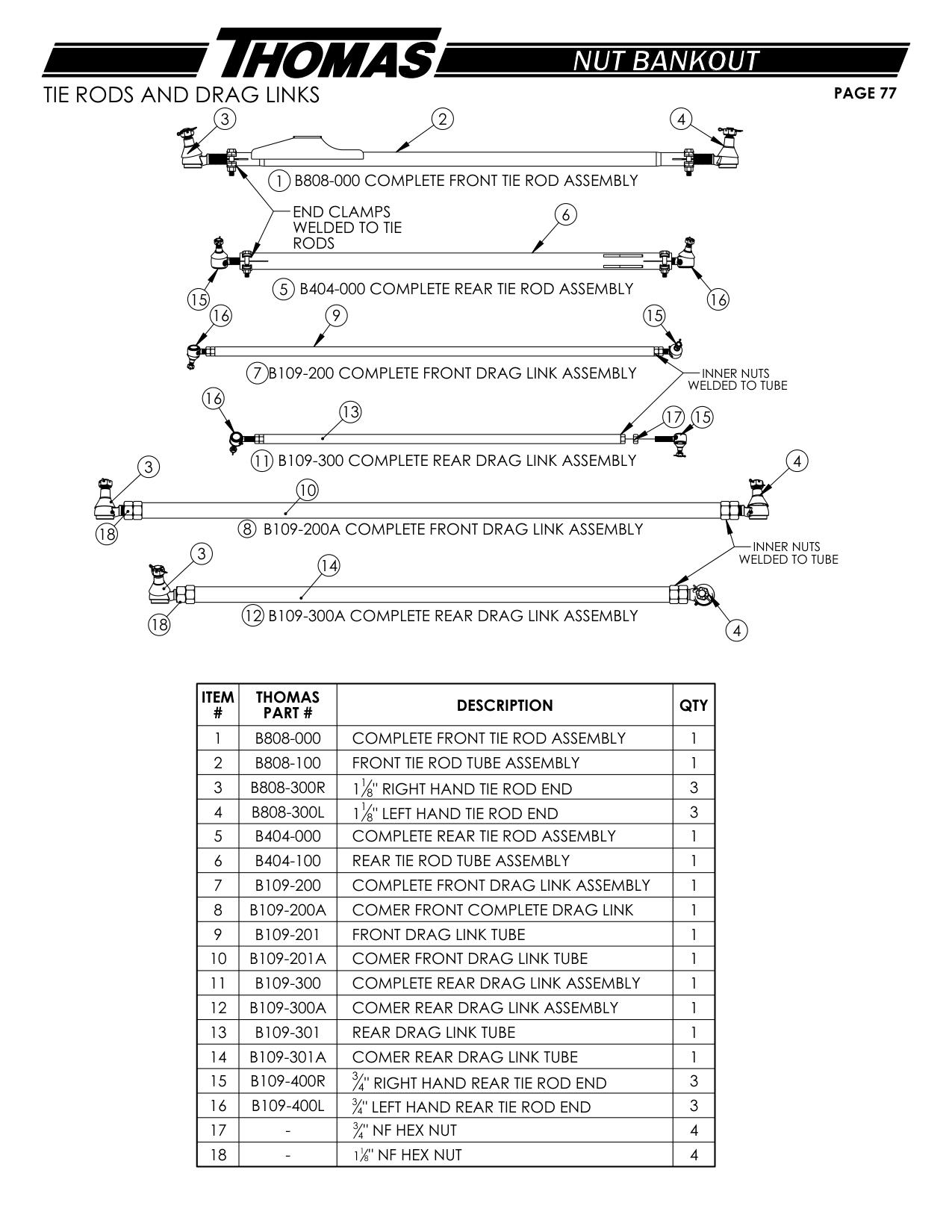

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B808-000 | COMPLETE FRONT TIE ROD ASSEMBLY | |
| 1 | B808-000 | COMPLETE FRONT TIE ROD ASSEMBLY | 1 |
| 2 | B808-100 | FRONT TIE ROD TUBE ASSEMBLY | 1 |
| 3 | B808-300R | 1 8" RIGHT HAND TIE ROD END | 3 |
| 4 | B808-300L | 1 8" LEFT HAND TIE ROD END | 3 |
| 5 | B404-000 | COMPLETE REAR TIE ROD ASSEMBLY | |
| 5 | B404-000 | COMPLETE REAR TIE ROD ASSEMBLY | 1 |
| 6 | B404-100 | REAR TIE ROD TUBE ASSEMBLY | 1 |
| 7 | B109-200 | COMPLETE FRONT DRAG LINK ASSEMBLY INNER NUTS | |
| 7 | B109-200 | COMPLETE FRONT DRAG LINK ASSEMBLY | 1 |
| 8 | B109-200A | COMER FRONT COMPLETE DRAG LINK | 1 |
| 9 | B109-201 | FRONT DRAG LINK TUBE | 1 |
| 10 | B109-201A | COMER FRONT DRAG LINK TUBE | 1 |
| 11 | B109-300 | COMPLETE REAR DRAG LINK ASSEMBLY | 1 |
| 12 | B109-300A | COMPLETE REAR DRAG LINK ASSEMBLY | |
| 12 | B109-300A | COMER REAR DRAG LINK ASSEMBLY | 1 |
| 13 | B109-301 | REAR DRAG LINK TUBE | 1 |
| 14 | B109-301A | COMER REAR DRAG LINK TUBE | 1 |
| 15 | B109-400R | 4" RIGHT HAND REAR TIE ROD END | 3 |
