Comer Rear Axle Hub Assembly · Thomas Thomas Nut Bankout (2023)

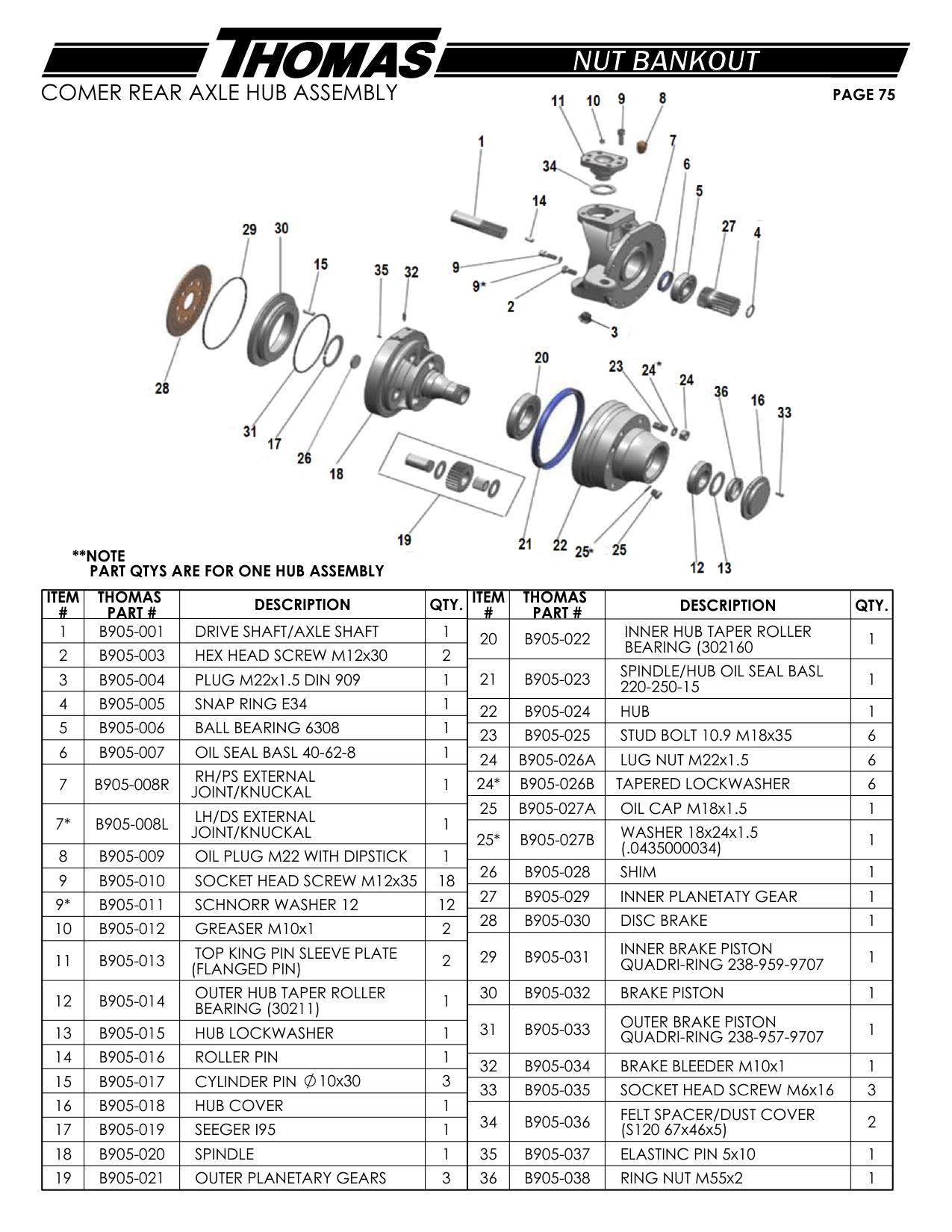

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B905-001 | DRIVE SHAFT/AXLE SHAFT 1 INNER HUB TAPER ROLLER | |
| 2 | B905-003 | HEX HEAD SCREW M12x30 | 2 |
| 3 | B905-004 | PLUG M22x1.5 DIN 909 1 21 B905-023 | 1 |
| 4 | B905-005 | SNAP RING E34 1 22 B905-024 HUB | 1 |
| 5 | B905-006 | BALL BEARING 6308 1 23 B905-025 STUD BOLT 10.9 M18x35 | 6 |
| 6 | B905-007 | OIL SEAL BASL 40-62-8 1 24 B905-026A LUG NUT M22x1.5 | 6 |
| 8 | B905-009 | OIL PLUG M22 WITH DIPSTICK | 1 |
| 9 | B905-010 | SOCKET HEAD SCREW M12x35 | 18 |
| 10 | B905-012 | GREASER M10x1 | 2 |
| 11 | B905-013 | 2 29 B905-031 | 1 |
| 13 | B905-015 | HUB LOCKWASHER 1 31 B905-033 | 1 |
| 14 | B905-016 | ROLLER PIN | 1 |
| 15 | B905-017 | CYLINDER PIN 10x30 | 3 |
| 16 | B905-018 | HUB COVER | 1 |
| 17 | B905-019 | SEEGER I95 1 (S120 67x46x5) | |
| 18 | B905-020 | SPINDLE 1 35 B905-037 ELASTINC PIN 5x10 | 1 |
| 19 | B905-021 | OUTER PLANETARY GEARS 3 36 B905-038 RING NUT M55x2 | 1 |
| 25 | B905-027A | OIL CAP M18x1.5 | 1 |
| 26 | B905-028 | SHIM | 1 |
| 27 | B905-029 | INNER PLANETATY GEAR | 1 |
| 28 | B905-030 | DISC BRAKE | 1 |
| 32 | B905-034 | BRAKE BLEEDER M10x1 | 1 |
| 33 | B905-035 | SOCKET HEAD SCREW M6x16 | 3 |
