Comer Rear Axle Breakdown · Thomas Thomas Nut Bankout (2023)

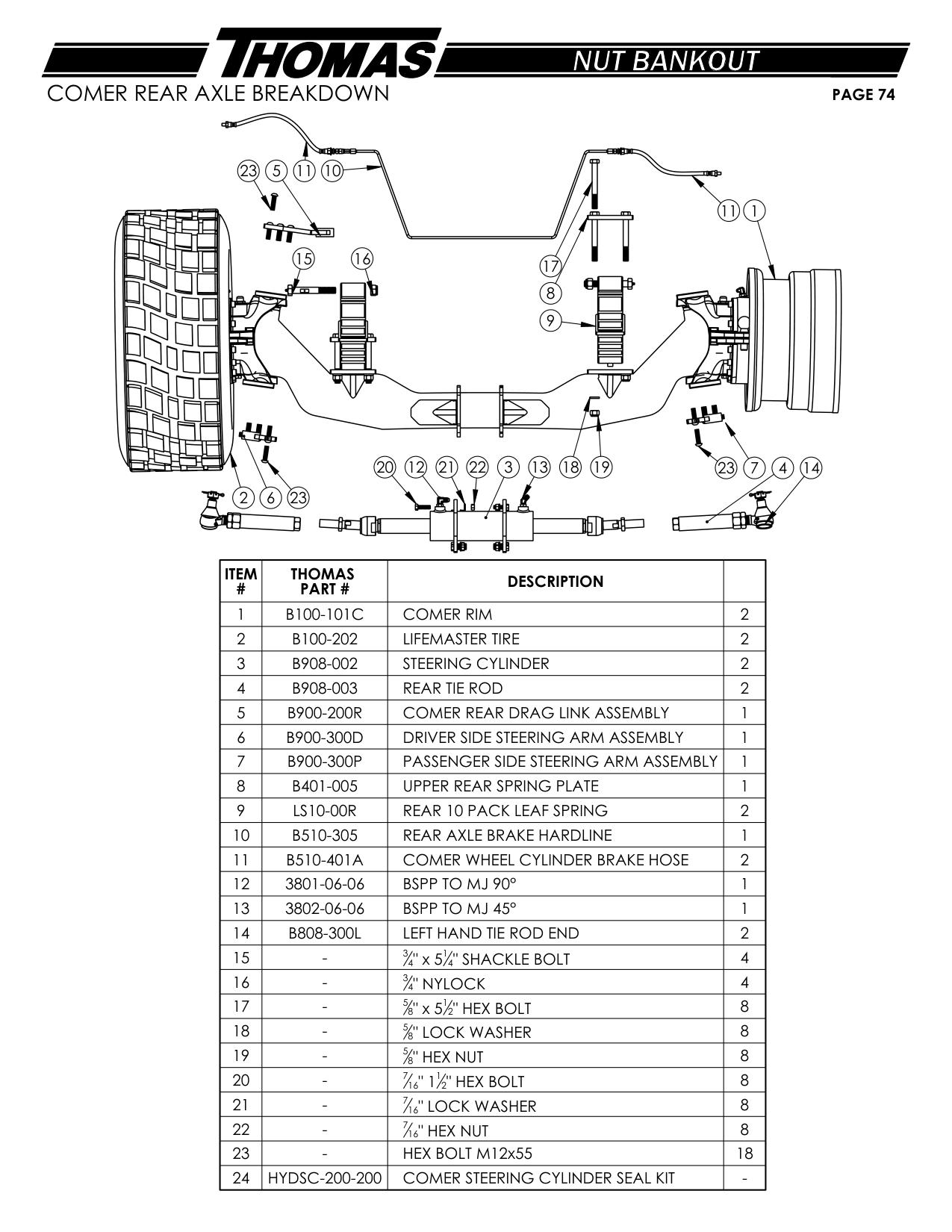

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B100-101C | COMER RIM | 2 |
| 2 | B100-202 | LIFEMASTER TIRE | 2 |
| 3 | B908-002 | STEERING CYLINDER | 2 |
| 4 | B908-003 | REAR TIE ROD | 2 |
| 5 | B900-200R | COMER REAR DRAG LINK ASSEMBLY | 1 |
| 6 | B900-300D | DRIVER SIDE STEERING ARM ASSEMBLY | 1 |
| 7 | B900-300P | PASSENGER SIDE STEERING ARM ASSEMBLY | 1 |
| 8 | B401-005 | UPPER REAR SPRING PLATE | 1 |
| 9 | LS10-00R | REAR 10 PACK LEAF SPRING | 2 |
| 10 | B510-305 | REAR AXLE BRAKE HARDLINE | 1 |
| 11 | B510-401A | COMER WHEEL CYLINDER BRAKE HOSE | 2 |
| 12 | 3801-06-06 | BSPP TO MJ 90° | 1 |
| 13 | 3802-06-06 | BSPP TO MJ 45° | 1 |
| 14 | B808-300L | LEFT HAND TIE ROD END | 2 |
| 24 | HYDSC-200-200 | COMER STEERING CYLINDER SEAL KIT |
