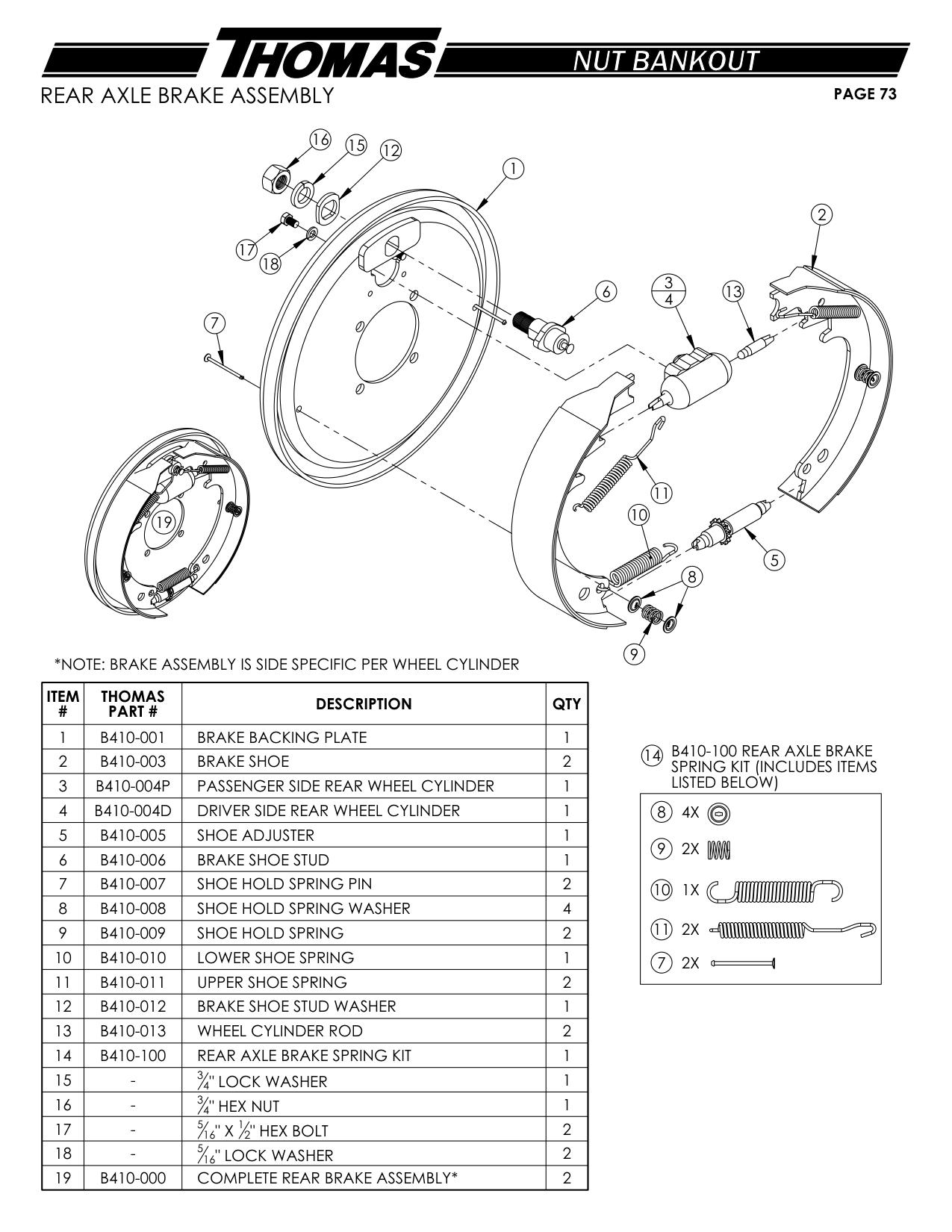

Rear Axle Brake Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B410-001 | BRAKE BACKING PLATE | 1 |
| 2 | B410-003 | BRAKE SHOE 2 14 B410-100 REAR AXLE BRAKE | |
| 3 | B410-004P | PASSENGER SIDE REAR WHEEL CYLINDER 1 LISTED BELOW) | |
| 4 | B410-004D | DRIVER SIDE REAR WHEEL CYLINDER 1 8 4X | |
| 5 | B410-005 | SHOE ADJUSTER | 1 |
| 6 | B410-006 | BRAKE SHOE STUD | 1 |
| 7 | B410-007 | SHOE HOLD SPRING PIN 2 10 1X | |
| 8 | B410-008 | SHOE HOLD SPRING WASHER | 4 |
| 9 | B410-009 | SHOE HOLD SPRING 2 11 2X | |
| 10 | B410-010 | LOWER SHOE SPRING 1 7 2X | |
| 11 | B410-011 | UPPER SHOE SPRING | 2 |
| 12 | B410-012 | BRAKE SHOE STUD WASHER | 1 |
| 13 | B410-013 | WHEEL CYLINDER ROD | 2 |
| 14 | B410-100 | REAR AXLE BRAKE SPRING KIT | 1 |
| 19 | B410-000 | COMPLETE REAR BRAKE ASSEMBLY* | 2 |
