Rear Axle King Pin Assembly · Thomas Thomas Nut Bankout (2023)

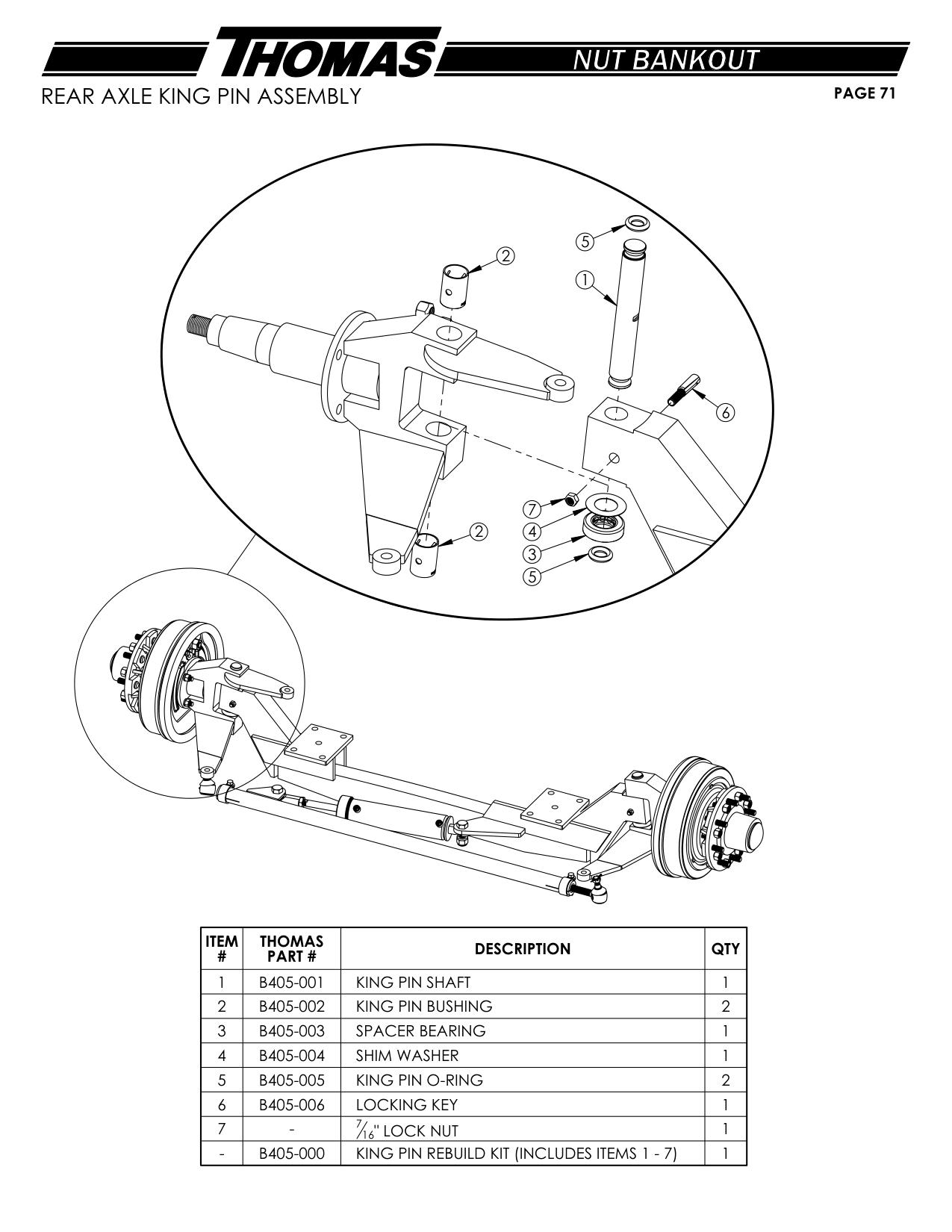

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B405-000 | KING PIN REBUILD KIT (INCLUDES ITEMS 1 - 7) | 1 |
| - | B403-000 | PASSSENGER SIDE SPINDLE ASSEMBLY (NOT SHOWN) | 1 |
| 1 | B405-001 | KING PIN SHAFT | 1 |
| 1 | B402-000 | DRIVER SIDE SPINDLE ASSEMBLY | 1 |
| 2 | B405-002 | KING PIN BUSHING | 2 |
| 2 | B410-000 | REAR BRAKE ASSEMBLY (SPECIFY LEFT/RIGHT) 1 4 COMPLETE DRILLED HUB ASSEMBLY | |
| 3 | B405-003 | SPACER BEARING | 1 |
| 3 | B410-002 | REAR BRAKE DRUM | 1 |
| 4 | B405-004 | SHIM WASHER | 1 |
| 4 | H08-100B | 8 ON 8 HUB ASSEMBLY (DRILLED) 1 # PART # | |
| 5 | B405-005 | KING PIN O-RING | 2 |
| 5 | H08-002 | DUST SEAL 1 13 - 1" CASTLE NUT | 1 |
| 6 | B405-006 | LOCKING KEY | 1 |
| 6 | H08-003 | OUTER WHEEL BEARING 1 14 - 32" X 2" COTTER PIN | 1 |
| 7 | H08-004 | INNER WHEEL BEARING 1 15 - 8" X 2 4" PRESS FIT STUD | 8 |
| 8 | H08-005 | SPINDLE WASHER 1 16 - 8" LUG NUT | 8 |
| 9 | H08-006 | HUB CAP 1 17 - 2" X 1 2" BOLT | 4 |
| 10 | H08-101B | HUB (DRILLED) 1 18 - 2" X 1 4" BOLT | 8 |
| 11 | H08-102 | INNER BEARING RACE 1 19 - 2" LOCK WASHER 12 PAGE | 72 |
| 12 | H08-103 | OUTER BEARING RACE 1 20 - 2" HEX NUT | 4 |
