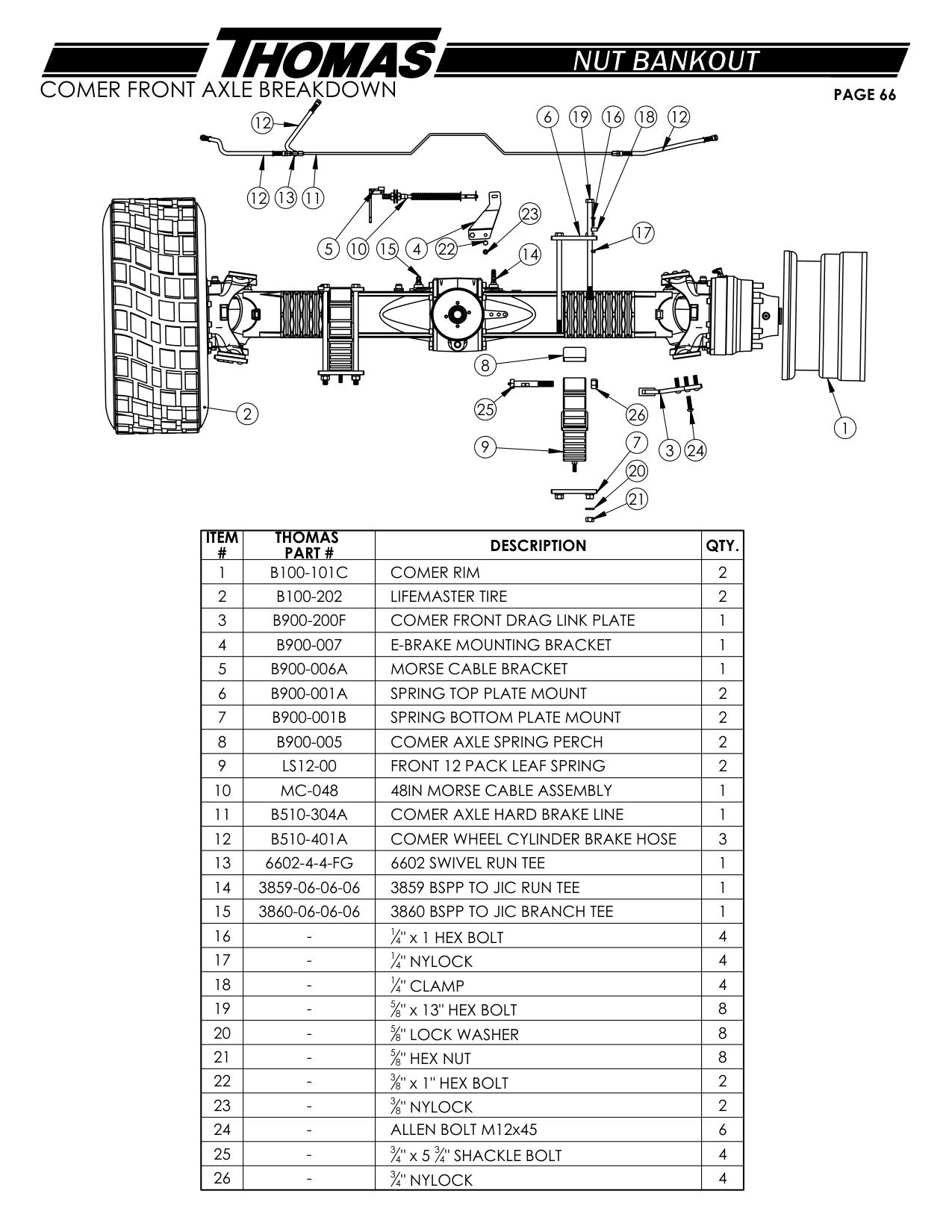

Comer Front Axle Breakdown · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B100-101C | COMER RIM | 2 |
| 2 | B100-202 | LIFEMASTER TIRE | 2 |
| 3 | B900-200F | COMER FRONT DRAG LINK PLATE | 1 |
| 4 | B900-007 | E-BRAKE MOUNTING BRACKET | 1 |
| 5 | B900-006A | MORSE CABLE BRACKET | 1 |
| 6 | B900-001A | SPRING TOP PLATE MOUNT | 2 |
| 7 | B900-001B | SPRING BOTTOM PLATE MOUNT | 2 |
| 8 | B900-005 | COMER AXLE SPRING PERCH | 2 |
| 9 | LS12-00 | FRONT 12 PACK LEAF SPRING | 2 |
| 10 | MC-048 | 48IN MORSE CABLE ASSEMBLY | 1 |
| 11 | B510-304A | COMER AXLE HARD BRAKE LINE | 1 |
| 12 | B510-401A | COMER WHEEL CYLINDER BRAKE HOSE | 3 |
| 13 | 6602-4-4-FG | 6602 SWIVEL RUN TEE | 1 |
| 14 | 3859-06-06-06 | 3859 BSPP TO JIC RUN TEE | 1 |
| 15 | 3860-06-06-06 | 3860 BSPP TO JIC BRANCH TEE | 1 |
