"Ball Style" Axle Shaft Assemblies · Thomas Thomas Nut Bankout (2023)

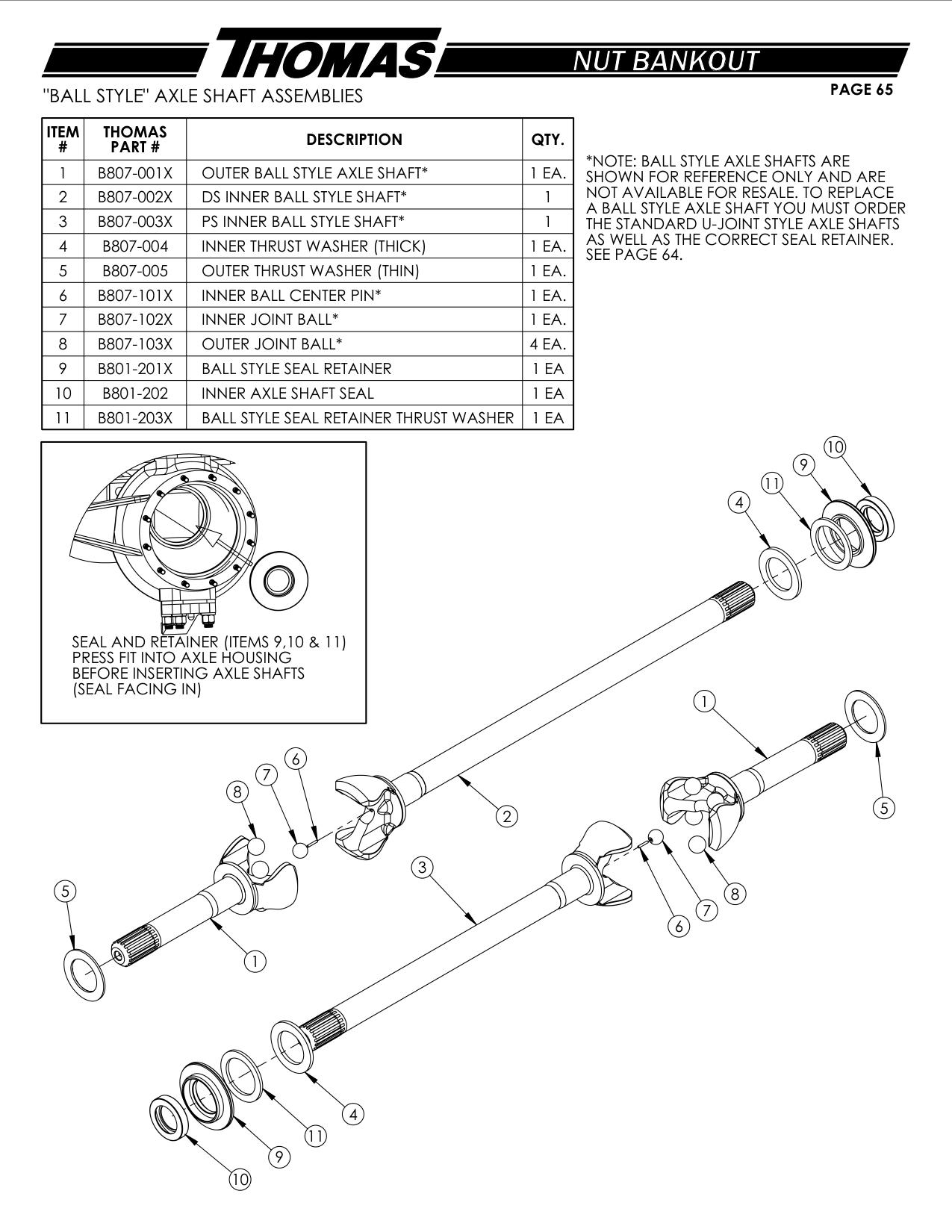

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B807-001X | OUTER BALL STYLE AXLE SHAFT* 1 EA. SHOWN FOR REFERENCE ONLY AND ARE | |
| 2 | B807-002X | DS INNER BALL STYLE SHAFT* 1 NOT AVAILABLE FOR RESALE. TO REPLACE | |
| 3 | B807-003X | PS INNER BALL STYLE SHAFT* 1 THE STANDARD U-JOINT STYLE AXLE SHAFTS | |
| 4 | B807-004 | INNER THRUST WASHER (THICK) 1 EA. AS WELL AS THE CORRECT SEAL RETAINER. | |
| 5 | B807-005 | OUTER THRUST WASHER (THIN) 1 EA. | |
| 6 | B807-101X | INNER BALL CENTER PIN* 1 EA. | |
| 7 | B807-102X | INNER JOINT BALL* 1 EA. | |
| 8 | B807-103X | OUTER JOINT BALL* 4 EA. | |
| 9 | B801-201X | BALL STYLE SEAL RETAINER 1 EA | |
| 10 | B801-202 | INNER AXLE SHAFT SEAL 1 EA | |
| 11 | B801-203X | BALL STYLE SEAL RETAINER THRUST WASHER 1 EA |
