Front Axle Shaft Assembly · Thomas Thomas Nut Bankout (2023)

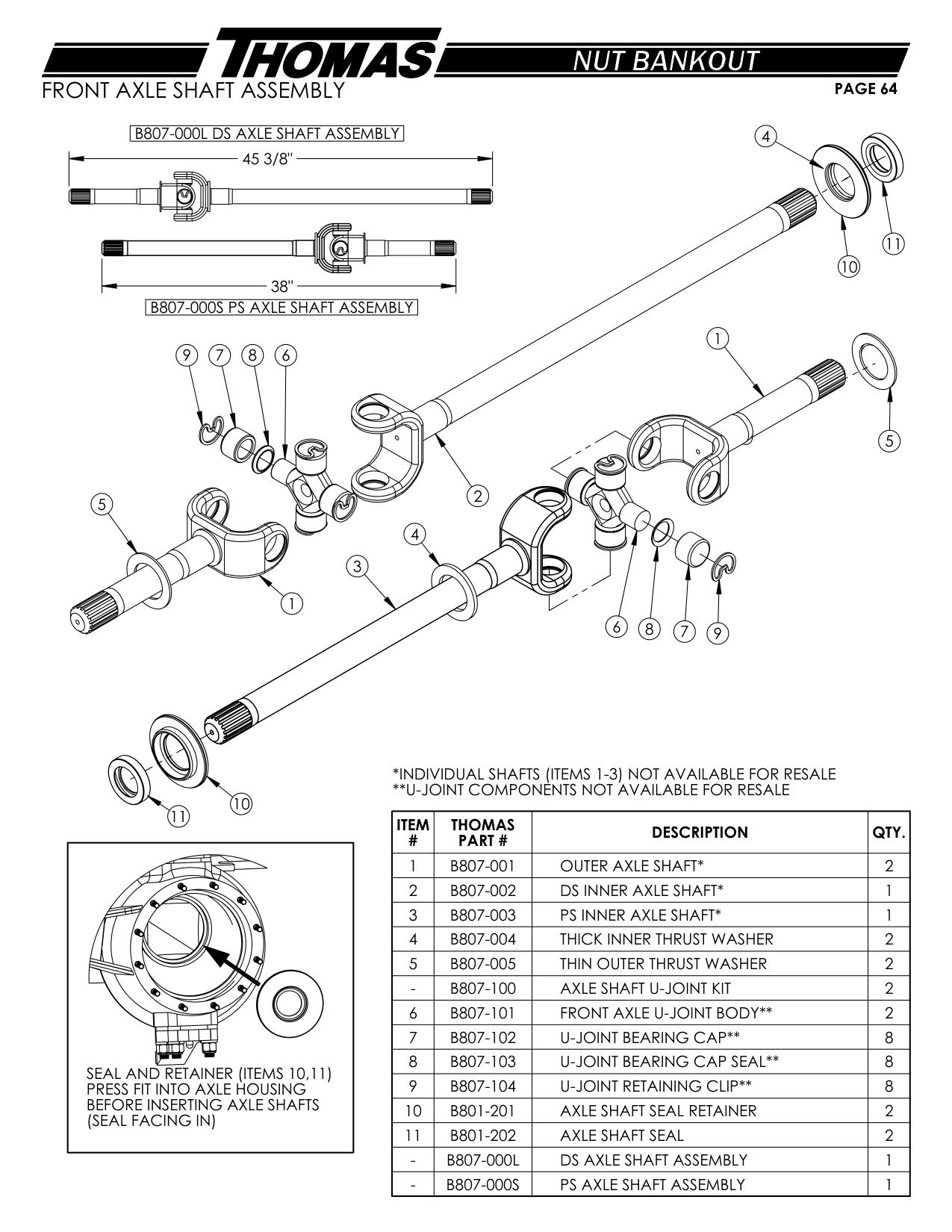

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| - | B807-100 | AXLE SHAFT U-JOINT KIT | 2 |
| - | B807-000L | DS AXLE SHAFT ASSEMBLY | 1 |
| - | B807-000S | PS AXLE SHAFT ASSEMBLY | 1 |
| 1 | B807-001 | OUTER AXLE SHAFT* | 2 |
| 2 | B807-002 | DS INNER AXLE SHAFT* | 1 |
| 3 | B807-003 | PS INNER AXLE SHAFT* | 1 |
| 4 | B807-004 | THICK INNER THRUST WASHER | 2 |
| 5 | B807-005 | THIN OUTER THRUST WASHER | 2 |
| 6 | B807-101 | FRONT AXLE U-JOINT BODY** | 2 |
| 7 | B807-102 | U-JOINT BEARING CAP** | 8 |
| 8 | B807-103 | U-JOINT BEARING CAP SEAL** | 8 |
| 11 | B801-202 | AXLE SHAFT SEAL | 2 |
