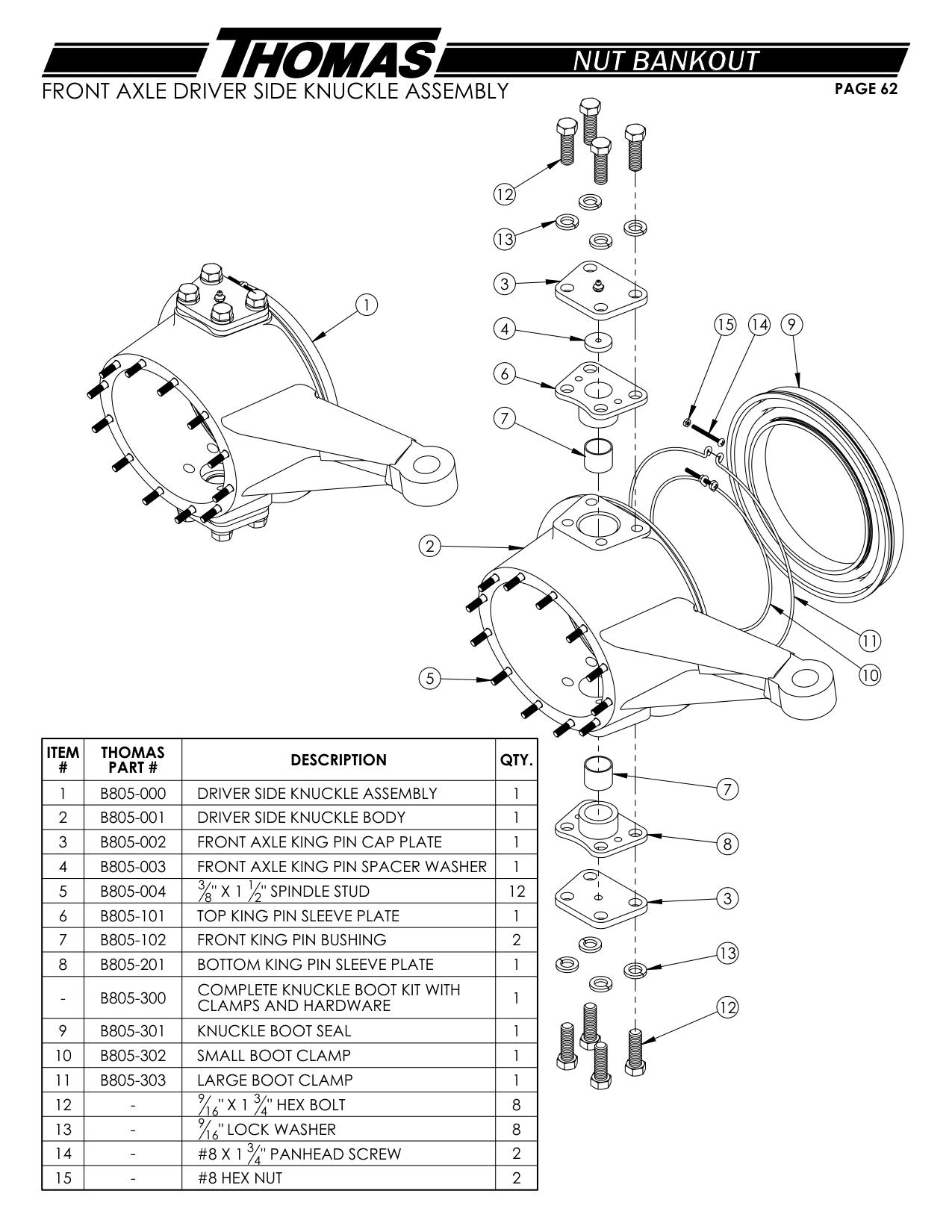

Front Axle Driver Side Knuckle Assembly · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B805-000 | DRIVER SIDE KNUCKLE ASSEMBLY | 1 |
| 2 | B805-001 | DRIVER SIDE KNUCKLE BODY | 1 |
| 3 | B805-002 | FRONT AXLE KING PIN CAP PLATE | 1 |
| 4 | B805-003 | FRONT AXLE KING PIN SPACER WASHER | 1 |
| 5 | B805-004 | 8" X 1 2" SPINDLE STUD | 12 |
| 6 | B805-101 | TOP KING PIN SLEEVE PLATE | 1 |
| 7 | B805-102 | FRONT KING PIN BUSHING | 2 |
| 8 | B805-201 | BOTTOM KING PIN SLEEVE PLATE | 1 |
| 9 | B805-301 | KNUCKLE BOOT SEAL | 1 |
| 10 | B805-302 | SMALL BOOT CLAMP | 1 |
| 11 | B805-303 | LARGE BOOT CLAMP | 1 |
