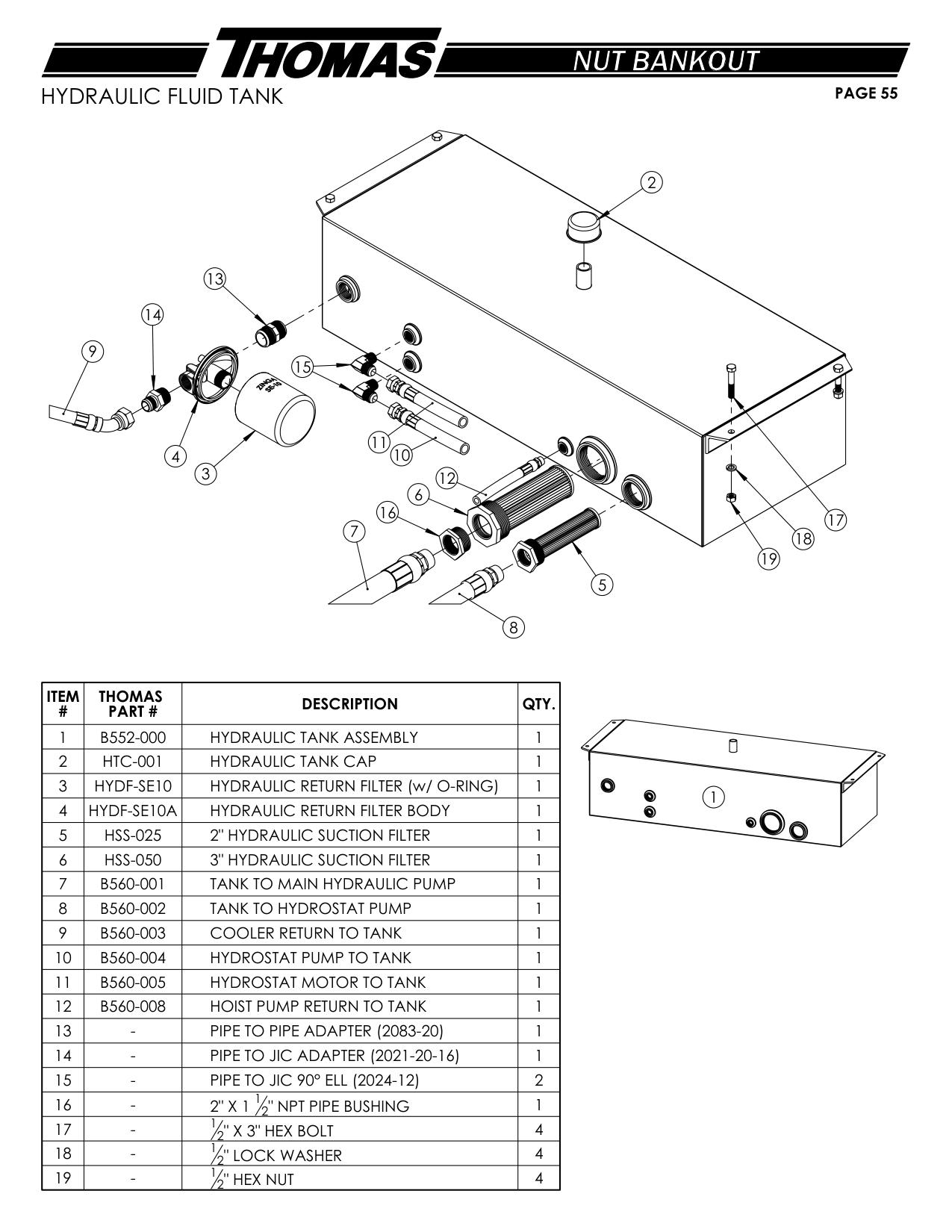

Hydraulic Fluid Tank · Thomas Thomas Nut Bankout (2023)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B552-000 | HYDRAULIC TANK ASSEMBLY | 1 |
| 2 | HTC-001 | HYDRAULIC TANK CAP | 1 |
| 3 | HYDF-SE10 | HYDRAULIC RETURN FILTER (w/ O-RING) | 1 |
| 4 | HYDF-SE10A | HYDRAULIC RETURN FILTER BODY | 1 |
| 5 | HSS-025 | 2" HYDRAULIC SUCTION FILTER | 1 |
| 6 | HSS-050 | 3" HYDRAULIC SUCTION FILTER | 1 |
| 7 | B560-001 | TANK TO MAIN HYDRAULIC PUMP | 1 |
| 8 | B560-002 | TANK TO HYDROSTAT PUMP | 1 |
| 9 | B560-003 | COOLER RETURN TO TANK | 1 |
| 10 | B560-004 | HYDROSTAT PUMP TO TANK | 1 |
| 11 | B560-005 | HYDROSTAT MOTOR TO TANK | 1 |
| 12 | B560-008 | HOIST PUMP RETURN TO TANK | 1 |
